China Manufacture Portable Medium Frequency Induction Heating Machine with Handheld Transformer
Product Details
| Product Name | Portable Induction Heating Machine | Size | Portable, Small |
|---|---|---|---|
| Transformer | Coaxial Handheld Transformer | Frequency | Medium Frequency |
| Brand | Canroon, China Manufacturer | Application | Metal Heat Treatment, Induction Brazing |
| Highlight | induction heat treating equipment,medium frequency induction heating equipment |
||
Product Description

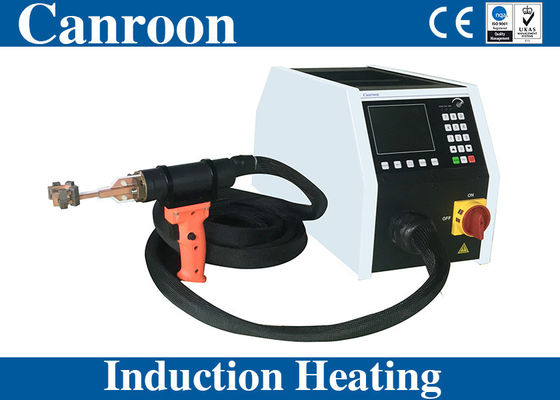

Portable Medium Frequency Induction Heating Machine
Brief introduction of portable medium frequency induction heating machine:
Canroon is China leading manufacturer of induction heating machine, our CR2100 series induction heating machine is small in size, can supply 10-50KW, need to connect with chiller. IGBT induction heating, digital control, modular design, and wide applications. Besides, our machine has the handheld coaxial transformer, can be easily to operate, and the inductors are customized according to your workpiece, and detachable from the HHT.
Handheld coaxial transformer and customized inductor:
Application details of portable medium frequency induction heating machine:
Our induction heating machine can work continuously for induction brazing, suitable for nearly all metals like copper, steel, aluminum, iron, brass, etc, and can work for copper tube, rotor coil, rotor bar, brass slip ring, copper wire, heat exchanger, etc, high efficiency, good performance.
Following are some the projects we ever did.
Technical Parameters of portable medium frequency induction heating machine:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase /400V (±20%) 50/60Hz |
10KVA | 15A | 10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A | ||||
| CR2100-020B-14TW1 | 20KVA | 30A | ||||
| CR2100-025B-14TW1 | 25KVA | 37A |
4~6 bar ≥19L/min |
|||
| CR2100-030B-14TW1 | 30KVA | 45A | ||||
| CR2100-035B-14TW1 | 35KVA | 53A | ||||
| CR2100-040B-14TW1 | 40KVA | 60A | ||||
| CR2100-050B-14TW1 | 50KVA | 75A |
Product features of portable medium frequency induction heating machine:
1. High efficient: thermoelectric conversion efficieny: >85%;
2. Enviromental friendly: zero pollution, zero discharge;
3. Intelligent: PID temperature closed-loop control, precise temperature control;
4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.
5. Operation interface: humanized MMI, chinese/ English available;
6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;
7. Automation integration: Quickly and easily integrated into automated production lines;
8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
