Medium Frequency Induction Heating Equipment for Welding Preheat PWHT with Flexible Induction Cable
Product Details
| Product Name | Induction Heating Equipment | Application | Heat Treatment |
|---|---|---|---|
| Function | Welding Preheat, PWHT | Power | 40KVA, 80KVA, 120KVA |
| Workpiece | Steel Pipe, Stainless Steel Pipe, Steel Plates | Advantages | Digital Control, Modular Design,IGBT Induction Heating |
| Highlight | medium frequency induction heating machine,medium frequency induction heating equipment,High Efficiency Induction Heating Equipment |
||
Product Description
Medium Frequency Induction Heating Equipment

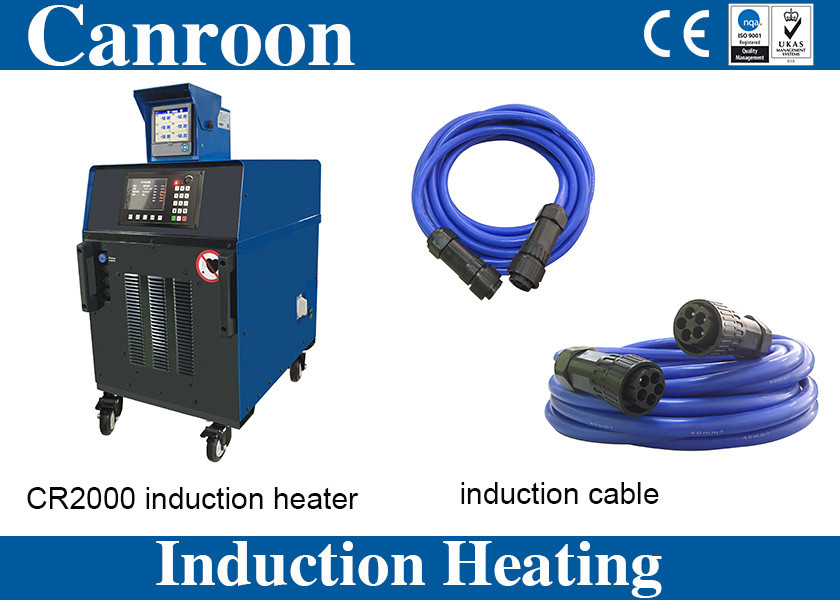

Overall pictures of medium frequency induction heating equipment:
Canroon is China leading manufacturer of induction heating equipment. Our CR2000 series can be used for welding preheat, PWHT, joint anti-corrosion coating, in offshore platform, oil and gas pipeline, steel bridge construction and repair, power plant, etc
For CR2000 series, we have portable type: 5KVA, 10KVA, and movable type: 40KVA, 80KVA, 120KVA. Following is pictures of movable type.
Technical parameters of medium frequency induction heating equipment:
Model | Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-040 | 788℃ | 40KVA | 3-phases 380V-460V 50-60Hz 50-61A | 35KW 3-35KHz Duty Cycle: 100% | H:762mm W:544mm L:730mm | 115kg |
| CR2000-080 | 788℃ | 80KVA | 3-phases 380V-460V 50-60Hz 100-121A | 72KW 2.3-35KHz Duty Cycle: 100% | H:845mm W:592mm L:801mm | 190kg |
| CR2000-120 | 788℃ | 120KVA | 3-phases 380V-460V 50-60Hz 150-181A | 108KW 2.5-35KHz Duty Cycle: 100% | H:845mm W:592mm L:801mm | 190kg |
Applications of induction heating equipment:

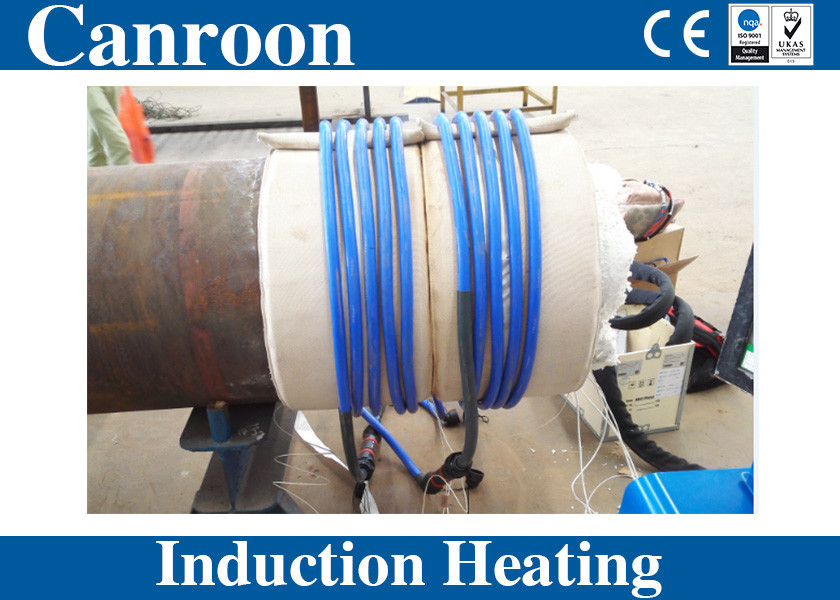

We use induction cables winding around the pipes, you can wind it according to your pipe size, and heating temperature, and also other detailed requirements. So it is flexible. There are insulation blankets to protect the cable from overheat. For welding two pipes together, two insulation blankets will be needed, each pipe has one blanket. For welding, there will be welding slag, so the blanket also can protect the heating process. The size and material of the insulation blanket are optional. Length and size of induction cable are optional too.
Induction heating equipment can be connected with following different types of inductors:
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT), plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for joint anti-corrosion coating).
Features of medium frequency induction heating equipment:
Friendly Interface and Accurate Control
Various Control Mode
Fault Record
Easy Maintenenace
Self Diagnosis
High Efficiency
Uniform Heating
Replaceable Heating Inductor
Accessories of medium frequency induction heating equipment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
