Place of Origin | Shenzhen, China |
---|---|
Brand Name | Canroon |
Certification | CE; ISO9001:2008 |
Model Number | CR2000-040B-TF2 |
Minimum Order Quantity | 1 set |
Price | FOB |
Packaging Details | wooden case |
Delivery Time | within 5 days if available in stock |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 500 sets per month |
Input Power | 40kw, 80kw, 120kw | Input Voltage | 380-460V, 3 Phase, 50/60HZ |
---|---|---|---|
Input Current | 50-61A | Heating Temp. | Can Reach 788℃ |
Thermocouple | 6 Routes | Output Power | 35kw |
Output Frequency | 3-35kHZ | Duty Cycle | 100% |
Application | Induction Welding Preheat, PWHT, Joint Anti-corrosion Coating | Industry | Offshore, Oil And Gas Pipeline, Power Plant, Etc |
Highlight | medium frequency induction heating machine,medium frequency induction heating equipment |
Welding Equipment/Induction Heating Machine for Pipe Heat Treatment
Brief introduction of Canroon welding equipment/induction heating machine for pipe heat treatment:
Induction heating machine is used for pipe heat treatment: welding preheat, PWHT/post weld heat treatment, joint anti-corrosion coating, applied in industry of : offshore platform, oil and gas pipepine construction, power plant, etc

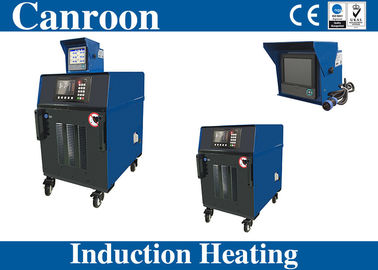

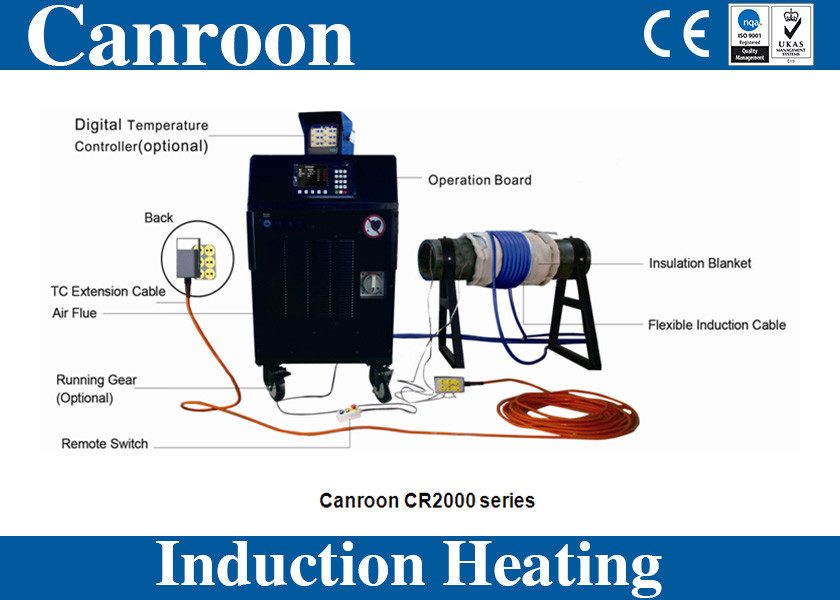

Overall pictures of Canroon welding equipment/induction heating machine for pipe heat treatment:
Our induction heating machine is design by our professional R&D team, and made of high quality raw materials, with temperature recorder for precise control, universal wheels for high mobility, can match 6 thermcouples, display panel for easy operation, digital control, modular design, self fault feedback, etc
Technical parameters of welding equipment/induction heating machine for pipe heat treatment:
Model
|
Temperature | Input Power | Input | Output | Dimension | Weight |
CR2000-040 | 788℃ | 40KVA | 3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
CR2000-080 | 788℃ | 80KVA | 3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
CR2000-120 | 788℃ | 120KVA | 3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
Application details of welding equipment/induction heating machine for pipe heat treatment:
our induction heating machine can be applied in welding preheat, PWHT/post weld heat treatment, joint anti-corrosion coating.
- induction welding preheat:

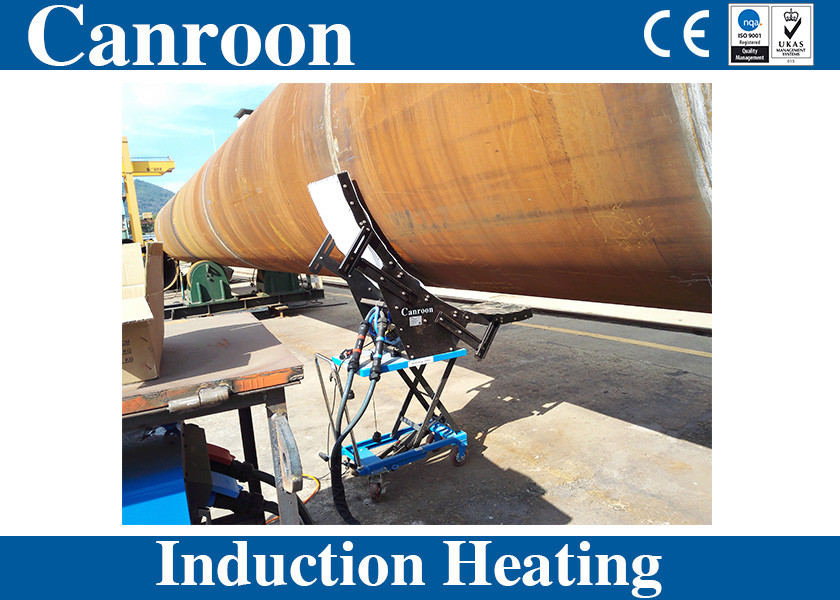

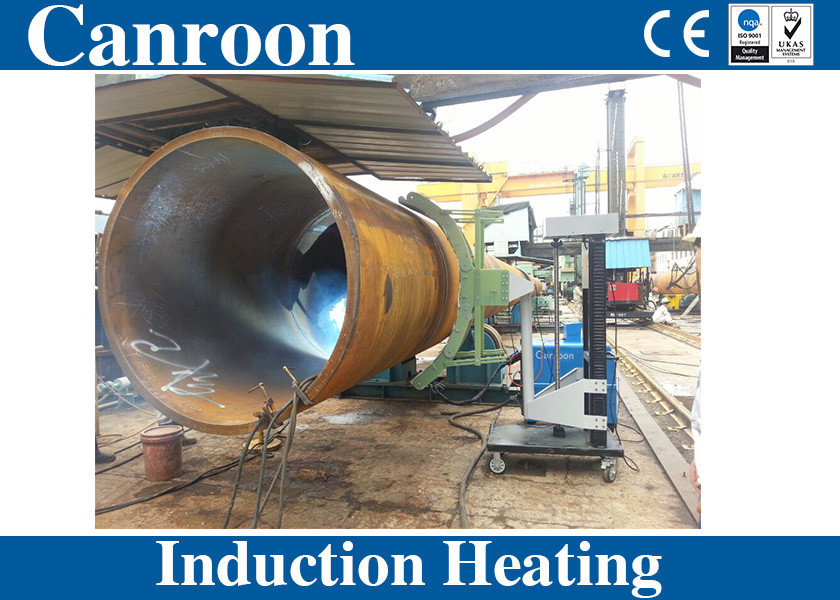

Induction heating machine with C type inductor for rotating pipe and circular seam welding preheating:
Induction heating machine with plate type inductor for longitudinal seam induction welding preheating:
Induction heating machine with blanket type inductor, this type is mostly used for pipe welding preheating:
- PWHT/post weld heat treatment:
For steel pipe PWHT/post weld heat treatment:
For stainless steel pipe PWHT/post weld heat treatment:
PWHT curve:
- Preheat for joint anti-corrosion coating:
Induction heating machine with the hydraulic split core inductor:
Induction heating machine with manual split core inductor:
Induction heating machine can be connected with following different types of inductors:
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT), plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for joint anti-corrosion coating).
Features of welding equipment/induction heating machine for pipe heat treatment:
-
Friendly Interface and Accurate Control
-
Various Control Mode
-
Fault Record
-
Easy Maintenenace
-
Self Diagnosis
-
High Efficiency
-
Uniform Heating
-
Replaceable Heating Inductor
Accessories of welding equipment/induction heating machine for pipe heat treatment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
