Digital Induction Heating Machine for Welding Preheat and Heat Treatment

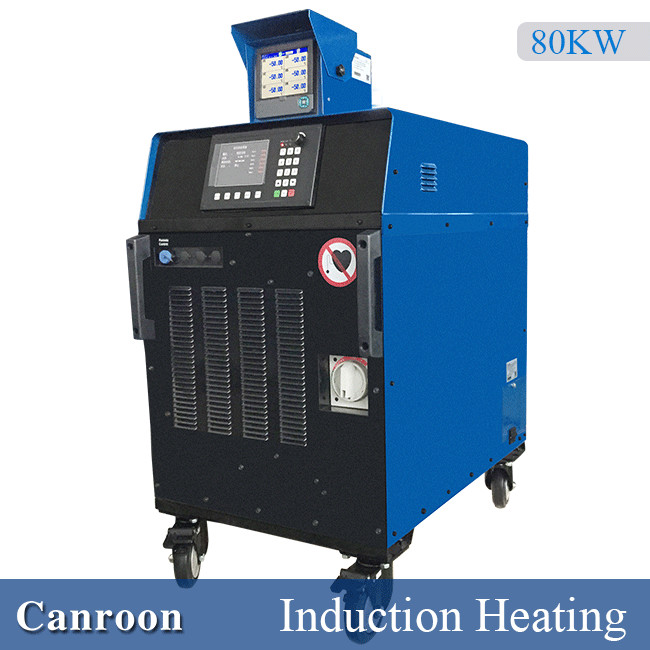

Digital Induction Preheating Machine 80kW for Welding Heat Treatment

The Canroon CR2000-080A-14T is a high-performance digital induction preheating machine engineered for efficient, uniform heat treatment in welding and fabrication applications. With a maximum output of 80kW and an advanced air-cooled system, it delivers rapid and consistent heating up to 1450°F (790°C).

Equipped with six thermocouple inputs, this system ensures precise temperature monitoring and control. Its intuitive digital interface supports ramp-and-hold programming, making it easy for operators to set up and execute complex heating processes. Compared to conventional methods, CR2000 achieves faster time-to-temperature with improved energy efficiency and operator safety.

Quick Details

• Type: Induction Heating Equipment
• Brand Name: Canroon
• Model: CR2000-080A-14T
• Origin: China
• Input Voltage: 380V, 3-Phase, 50Hz
• Rated Power: 80kW
• Current: 122A
• Duty Cycle: 100%
• Cooling Method: Air-Cooled
• Dimensions (mm): 880 × 663 × 982
• Weight: 201kg
• Control: Digital Controller
• Temperature Range: Up to 1450°F (790°C)
• Temperature Recorder: 6-channel optional
• Certification: CE, ISO9001:2008
• Application: Welding preheating, PWHT, shrink fit, coating removal
• After-sales Service: Global service center support

Applications:

The CR2000 series is widely applied in:

• Welding preheating and post-weld heat treatment (PWHT)
• Pipeline and structural steel fabrication
• Coating or paint removal
• Shrink fitting of mechanical parts
• Heat treatment for offshore, petrochemical, and power plant maintenance

Specifications:

Key Advantages :

• Portable & Versatile: Optional wheel kit enables easy mobility for on-site welding and maintenance.

• Advanced Temperature Control: Supports both manual and automatic modes with user-friendly interface.

• Accurate Monitoring: Six thermocouple inputs ensure uniform heating and controlled cooling.

• Fail-Safe Design: Includes output detection and isolation fault protection for safe operation.

• Low Operating Costs: No fuel required; reusable insulation reduces consumable expenses.

• Uniform Heat Distribution: Heats from within the material for consistent results, minimizing overheating.

• Fast Time-to-Temperature: Faster heat-up than traditional methods, shortening cycle times.

• Improved Safety: No open flames or combustible gases, ensuring a safer working environment.

• High Energy Efficiency: >90% thermal conversion efficiency enhances productivity and reduces costs.

• Easy Setup: Compatible with preheat blankets and flexible cables, simplifying deployment.
