Input | 3-phase 380V / 1-phase 220V | Output | 5/10/40/80/120/160KW |
---|---|---|---|
Frequency | 2.5~60KHz | Electric Design | Digital Control |
Resonance | Series Resonance | Control Mode | Temperature Control |
Control Precision | High Precision | Heating Temp. | 788℃ |
Highlight | temperature control Induction Heating Machine ISO,Welding Preheat Portable Induction Heating Machine,CR2000 high precision Induction Heating Machine |

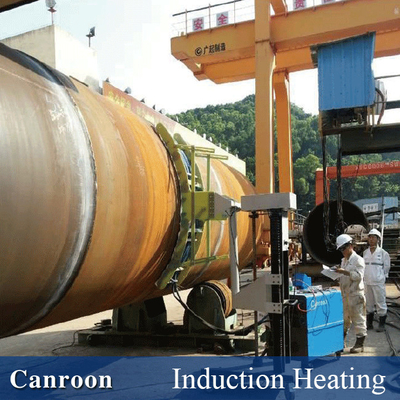

Portable Induction Heating Machine for Welding Preheat / Joint Anti-corrosion Coating in Accurate Temp. Control
Welding preheating and post-heating is an important application field of induction heating.
The welding of steel after preheating can reduce the stress,improve the welding strength,and
prevent cracking.Post-heating is used for dehydrogenation,annealing,tempering,normalizing
and other processes.
CR2000 is widely used and welcomed by oil&gas piping, and power plant construction & repair.
Application of shink fitting for motor stator is also very efficient.
CR2000 series medium frequency induction heating system is designed and manufactured by Canroon,
specially for using of welding preheat, post weld heat treatment (DHT dehydrogenation heat treatment,
ISR intermediate stress relief), and joint anti-corrosion coating.

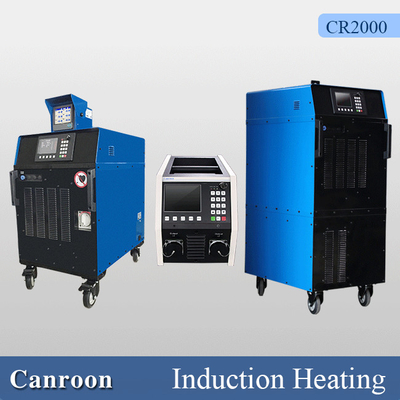

Induction Heating Power Source:
CR2000 induction heating generatore covers power 5KVA/10KVA/40KVA/80KVA/120KVA.
All designed with perfect portability and compact in size.
Specifications:
Type | Input | Output | Inductance range | Dimension | Weight | IP |
CR2000-005B-12SF |
Power: 5KVA |
Power: 4.2kW |
1~160uH |
W:242.9MM |
16Kg | IP23 |
CR2000-005B-14TF |
Power: 5KVA |
Power: 4.5kW |
2.2-300uH | W:263MM H:302MM D:535MM | 18.5Kg | IP23 |
CR2000-010B-14TF |
Power: 10KVA |
Power: 9W |
IP23 | |||
CR2000-040B-14TF |
Power: 40KVA |
Power: 35kW |
2.2-300uH | W:544MM H:762MM D:730MM | 115Kg | IP23 |
CR2000-080B-14TF |
Power: 80KVA |
Power: 72kW |
3.0-500uH | W:592MM H:845MM D:801MM | 190Kg | IP23 |
CR2000-120B-14TF |
Power: 120KVA |
power: 108kW |
3.0-500uH | W:592MM H:845MM D:801MM | 190Kg | IP23 |
Accessories:
We provide complete system for welding preheat / PWHT / Joing anti-corrosion coating.
All necessary accessories in these process, you can find in Canroon, and all designed and manufactured by Canroon
to ensure its perfect performance with our CR2000 induction heating system.
Customized Inductor:
Canroon provide customized inductor to adapt various workpieces, and ensure easier operation and higher
working efficiency.
Applications:
Preheating for circular seam / longitudinal seam welding;
Preheating for joint anti-corrosion coating;
Annealing
PWHT
Features:
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and
time-to-temperature is faster than conventional processes due to the method of applying heat, reducing
cycle time.
- Friendly Interface and Accurate Control
The control board offers various parameters for setting so the heating process can be controlled precisely
by giving value to temperature, time, heating rate, cooling rate, etc.
- Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action
like shutdown once fault occurs such as open-loop output or short out.
- Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control.
The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes of constant
power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide
applicability and precise control.
- Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.
- Self Diagnosis
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout
the heating zone is realized.
- Replaceable Heating Inductor
Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including
induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are
easily dismountable and reconnected to the power source. So the power source can be used for heating
workpiece of different size and shape.
- Abdudant Accessories
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder,
remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures
you to start work soon after received our delivery.
