Power | 40kw, 80kw, 120kw, 160kw | Machine Name | Induction Heating Generator |
---|---|---|---|
Module | IGBT Module | Control | Digital Control |
Design | Modular Design | Brand | Canroon, Manufacturer |
Application | Pipe Joint Anti-corrosion Coating | Function | Induction Heating, Preheat |
Inductor | Split Core Inductor, Clamps, Manual Type To Open And Close | Industry | Oil And Gas Pipeline, Offshore Platform, Power Plant, Etc |
Highlight | IGBT Induction Heating Generator CE,Pipe Fields Joint Induction Heating Generator,modular design Induction Heating Generator |

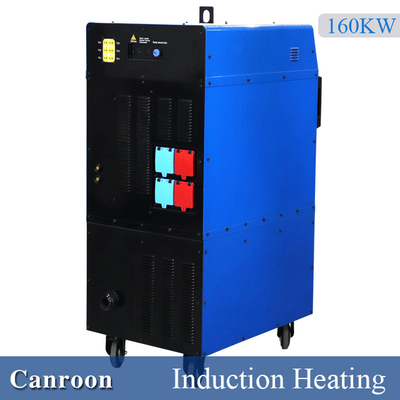

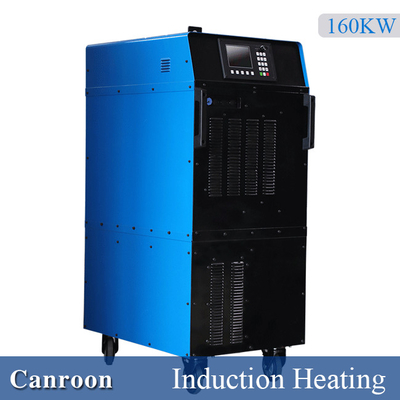

Induction Heating Generator for Pipe Joint Anti-corrosion Coating IGBT
CR2000 series induction heating generator can be used for joint anti-corrosion coating
in offshore platform, power plant,oil and gas pipeline construction, etc,
IGBT induction heating generator:
Digital control for precise and stable working
Modular design for easy maintenance and repair
Self fault feedback for machine protection and longer service life
6 thermocouple inputs for timely temperature control
Display panel for easy operation
Universal wheels for high movability
Parameters of IGBT induction heating generator:
Model |
Temperature | Input Power | Input | Output | Dimension | Weight |
CR2000-040 |
788℃ |
40KVA |
3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
CR2000-080 |
788℃ |
80KVA |
3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
CR2000-120 |
788℃ |
120KVA |
3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
|
Product Features:
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and
time-to-temperature is much faster than conventional processes due to the method of applying heat,
reducing cycle time.
- Friendly Interface and Precise Control
The control board offers multiple heating pattern to choose such as preheat, PWHT, bakeout, custom,
so the heating process can be controlled precisely by determining parameters of each segment such as
temperature, time, temperature-time rate.
- Abundant Accessories
We offer different sizes of output induction cable, output extension cable, insulation blanket, remote switch,
TC extension cable, digital temperature recorder, spot welding machine, etc., just for the convenience of
your application and engineering project. You can get the whole system.
- Fault Recording and Protection
Fault code will display and be recorded for reference, and system will respond with protection action like
shutdown once fault occurs such as open-loop output and short out.

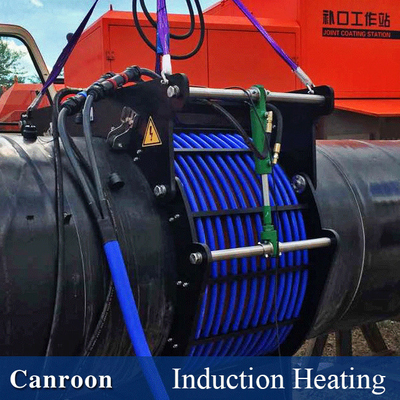

Working site of IGBT induction heating generator applied for joint anti-corrosion coating
with manual split core inductor:
Usually, induction heating generator will be far from the working site, so we can provide the extension cable for machine safe working.
Inductors can be operated by one or two persons according to the pipe size. Open and close easily. For pipe heating before coating,
just put the inductor around the pipe, then start heating, temperature and heating time can be precisely controlled by our machine.
With good performance and fast and uniform heating, our induction heating generator is widely applied in oil and gas pipeline,
power plant, offshore platform, etc
Manual type split core inductor:
Manual type split core inductor is desinged and customized according to your pipe size, it can be easily opened and closed by
human force. Since the induction cables are well arranged and fixed, it can work with high efficiency, good performance, and
uniform heating. Besides, compared to heating with induction cables, you don't need to wind the cables around the pipes,
so save much energy and labor force. Induction cables will not touch the pipes, so suitable for joint anti-corrosion coating.
Accessories to match our IGBT induction heating generator for the whole system:
We can supply the whole system like thermocouple, thermocouple welding machine, digital temperature-recorder,
remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures
you to start work soon after received our delivery.
Competitive Advantages:
- On-board Temperature Control
On-board temperature control provides for manual or temperature based programming in a simple-to-learn operator interface.
- Perfect Mobility
Optional running gear is offered, which is easy to install or dismount.
- Low consumable costs
No fuel costs and minimal insulation costs. Insulation blanket is reusable and may be used 50 time or more, reducing costs of disposal and replacement.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, and uniform temperature throughout the heating zone is realized.
