80KW Metal Stress Relieving Machine - Heat Treatment for Steel & Aluminum

80Kw Induction Stress Relieving Machine 1450ºF Max Temperature

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

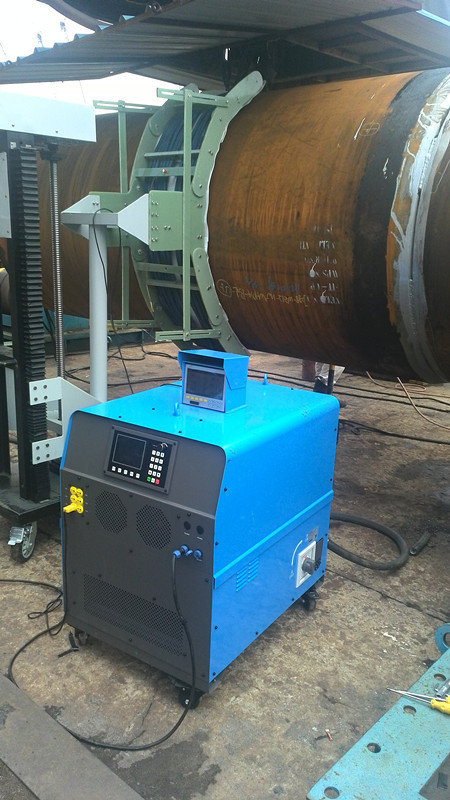

The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.

Applications:

With the introduction of theinduction stress relieving machine , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on
• stress relieving

Specifications:

Key Features & Technical Advantages

Advanced Temperature Management

• Multi-thermocouple intelligent control system automatically tracks hottest/coolest points during heating/cooling cycles

• User-friendly interface with manual programming or auto temperature-based modes

• Real-time open output detection prevents unsafe operation

Superior Energy Efficiency

• 92% energy conversion efficiency (TÜV-certified) - direct induction heating minimizes heat loss

• Zero fuel consumption vs. traditional gas heating systems

• Reusable insulation blankets (50+ cycles) reduce consumable costs by 70%

Engineered for Industrial Reliability

• Ground fault protection with automatic shutdown system (IEEE compliant)

• Flame-free operation eliminates explosion risks in welding environments

• Military-grade components withstand 24/7 operation in harsh conditions

Unmatched Process Quality

• Uniform heating penetration prevents material distortion (+/- 5°C variance)

• 3X faster time-to-temperature than conductive heating methods

• Non-contact heating preserves surface integrity of precision components

Mobility & Rapid Deployment

• Heavy-duty optional running gear (450kg capacity) for job site mobility

• Plug-and-play setup with preconfigured heating blankets <15 minutes

Tag:induction stress relieving machine
