IGBT Post Weld Heat Treatment Equipment

IGBT Post Weld Heat Treatment Equipment
IGBT Post Weld Heat Treatment Equipment IGBT Post Weld Heat Treatment Equipment IGBT Post Weld Heat Treatment Equipment IGBT Post Weld Heat Treatment Equipment

Large Image :  IGBT Post Weld Heat Treatment Equipment

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: FOB
Packaging Details: wooden case
Delivery Time: wihtin 5 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Power: 40kw, 80kw, 120kw Frequency: 3-35kHZ
Pipes: Stainless Steel Pipe, Steel Pipe Control Mode: Digital Control, Modular Design,
Industry: Offshore Platform, Oil And Gas Pipeline Construction Applications: PWHT, Post Weld Heat Treatment, Stress Relieving
Temperature: 788℃ Product Name: IGBT Post Weld Heat Treatment Equipment
High Light:

post weld heat treatment machine

,

post weld heat treatment machine



IGBT Post Weld Heat Treatment Equipment





Brief introduction of Canroon IGBT post weld heat treatment equipment:

Induction post weld heat treatment machine is designed and manufactured by Canroon fused for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.

For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

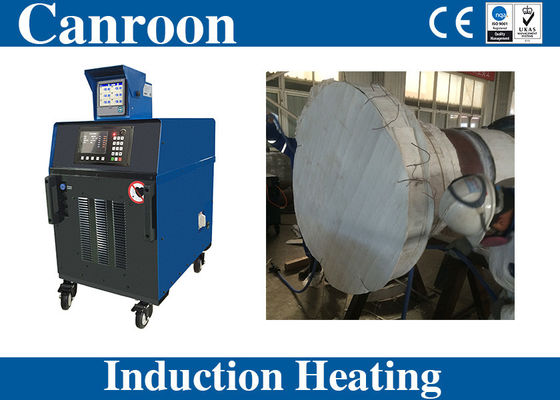

Overall pictures of Canroon IGBT post weld heat treatment equipment:
Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
Technical parameters of IGBT post weld heat treatment equipment:


ModelTemperatureInput PowerInputOutputDimension

Weight


CR2000-040788℃40KVA

3-phases
380V-460V
50-60Hz
50-61A

35KW
3-35KHz
Duty Cycle: 100%

H:762mm
W:544mm
L:730mm

115kg
CR2000-080788℃80KVA

3-phases
380V-460V
50-60Hz
100-121A

72KW
2.3-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg
CR2000-120788℃120KVA

3-phases
380V-460V
50-60Hz
150-181A

108KW
2.5-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg





Application details of IGBT post weld heat treatment equipment:

our induction heating equipment can be used in offshore platform, oil & gas pipeline construction, power station, etc

1, post weld heat treatment for steel pipes.

IGBT Post Weld Heat Treatment Equipment 1
IGBT Post Weld Heat Treatment Equipment 2

IGBT Post Weld Heat Treatment Equipment 3

2, post weld heat treatment for stainless steel pipes.

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes

PWHT curve:
40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment



Features of IGBT post weld heat treatment equipment:


  • Friendly Interface and Accurate Control

  • Various Control Mode

  • Fault Record

  • Easy Maintenenace

  • Self Diagnosis

  • High Efficiency

  • Uniform Heating

  • Replaceable Heating Inductor





Accessories of IGBT post weld heat treatment equipment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes



Company information:

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
