5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control
5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control

Large Image :  5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE, ISO9001:2008, etc
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Power: 5KVA, 10KVA Size: Portable, Handheld, Small
Company: Chinese Manufacturer Heating: Induction Heating
Control Mode: Digital Control Tech: IGBT
High Light:

high frequency induction heating

,

post weld heat treatment machine



Portable Induction Coil Machine for Post Weld Heat Treatment




Brief introduction of portable induction coil machine for post weld heat treatment:


Brand: Canroon(China manufacturer)
Power:5kw
Frequency:3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 220-240V, 1 phase, 50/60HZ,
Suitable pipe size: 30-300mm diameter, less than 25mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment, pipe welding preheat, joint anti-corrosion coating, etc
Features: small, portable, digital control, self-fault diagnosis, modular design, fault code feedback, etc





Picture of portable induction coil machine for post weld heat treatment:

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 0



Parameters of portable induction coil machine for post weld heat treatment:


Model Temperature Input Power Input Output Dimension Weight
CR2000-005B-12SF2 788℃ 5kVA

1-phase
220-240V
50-60Hz
20.8-22.7A

4.2kW
5-60 KHz
duty cycle 100%

W:242.9mm
H:295.2mm
D: 504.4mm


16kg


CR2000-005B-14TF1


788℃ 5kVA

3-phase
380-460V
50-60Hz
6.3-7.6A

4.5kW
3-35 KHz
duty cycle 100%

W:263mm
H:302mm
D:535mm


18.6kg


CR2000-010B-14TF1


788℃

10kVA


3-phase
380-460V
50-60Hz
12.5-15A


9kW
3-35 KHz
duty cycle 100%

W:263mm
H:302mm
D:535mm


18.6kg

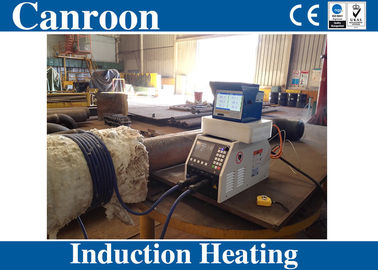

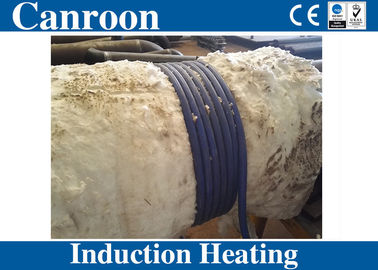

Application details of portable induction coil machine for post weld heat treatment:

Induction heating machine for post weld heat treatment, portable size, easy to handle,

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 1

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 2

5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 3

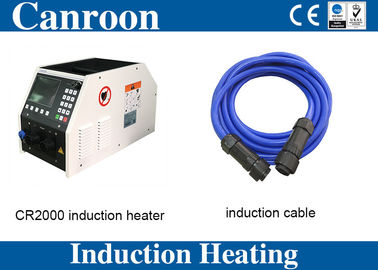

Induction coil/induction cable:



5KVA 10KVA Portable Induction Coil Machine for Steel Pipe and Plate Post Weld Heat Treatment with Digital Control 4


Accessories of portable induction coil machine for post weld heat treatment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our dellivery.

Air Cooling Post Weld Heat Treatment Induction Heating Machine Price

Advantages of portable induction coil machine for post weld heat treatment:

  • precise control

We have display panel to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, induction heater will display fault code, which was detailed explained in manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
