Power | 40KVA, 80KVA, 120KVA | Application | Post Weld Heat Treatment, PWHT |
---|---|---|---|
Function | Induction Heating | Industry | Offshore, Power Plant, Pipeline |
Highlight | post weld heat treatment machine,post weld heat treatment machine |
High Frequency Post Weld Heat Treatment Equipment
Brief introduction of Canroon high frequency post weld heat treatment equipment:
Induction post weld heat treatment machine is designed and manufactured by Canroon fused for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.
For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most.
Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

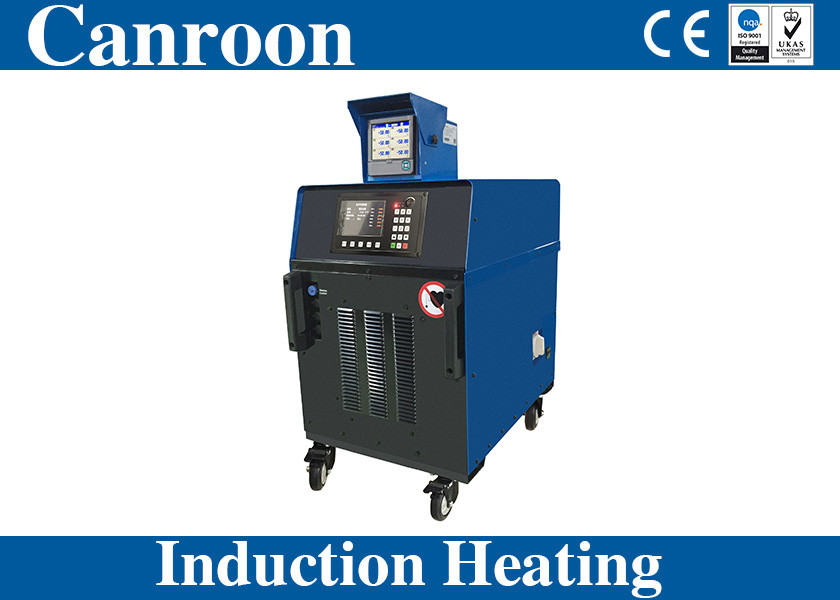

Overall pictures of Canroon high frequency post weld heat treatment equipment:
Technical parameters of high frequency post weld heat treatment equipment:
Model | Temperature | Input Power | Input | Output | Dimension | Weight |
CR2000-040 |
788℃ |
40KVA |
3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
CR2000-080 |
788℃ |
80KVA |
3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
CR2000-120 |
788℃ |
120KVA |
3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |

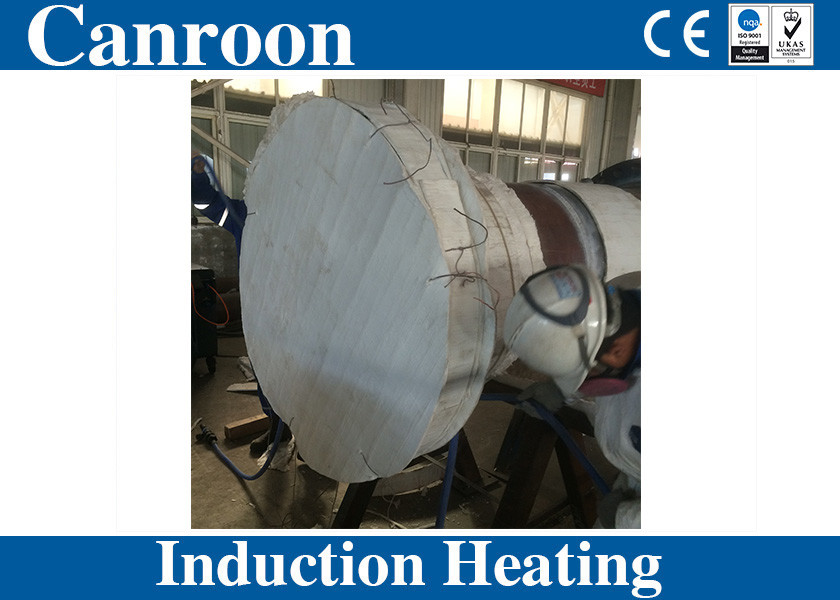

Application details of high frequency post weld heat treatment equipment:
our induction heating equipment can be used in offshore platform, oil & gas pipeline construction, power station, etc
1, post weld heat treatment for steel pipes.
2, post weld heat treatment for stainless steel pipes.
PWHT curve:
Features of high frequency post weld heat treatment equipment:
- precise control
-
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.
- Uniform Heating
-
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
- High Efficiency
-
Due to modular design, the maintance will be easy and low-cost.
- Self Diagnosis
-
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
- Easy Maintenenace
-
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.
- Fault Record
-
We have display board to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.
Accessories of high frequency post weld heat treatment equipment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
