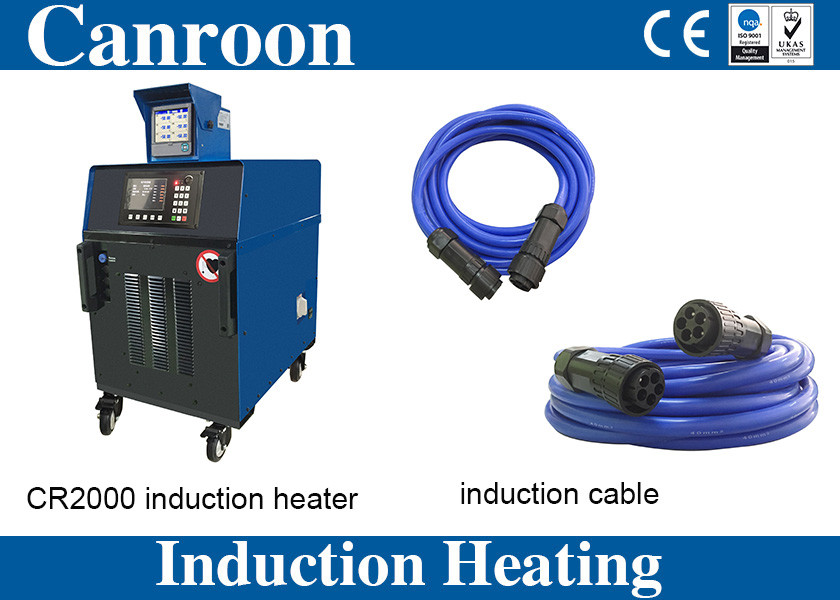

80KW Industrial Stress Relief Machine - Metal Heat Treatment Furnace

80Kw Induction Stress Relieving Machine 1450ºF Max Temperature

Basic Specifications:

• Brand: Canroon® (CE & ISO9001:2008 Certified)

• Power: 80KW @ 80% Duty Cycle

• Input: 380V±10% 3-Phase | 122A

• Dimensions: 880×663×982mm (Compact Workshop Design)

• Weight: 201kg (Lightest in Class)

• Cooling: Air-Cooled (Operates up to 1450°F/787°C)

• Temperature Monitoring: 6-Channel Digital Recorder

Key Technological Advantages

① Precision Temperature Management

• Multi-Point Thermal Tracking: 6 thermocouples monitor heating uniformity in real-time

• Smart Programming Interface: Guided ramp/hold temperature programming with process memory

• Auto-Coil Optimization: System tutors operators for maximum induction coil efficiency

② Industry-Leading Performance

• 3X Faster Heating vs. resistance heating methods

• ±5°C Uniformity across treatment zone

• Dual-Use Capability: Preheating (200-650°C) & stress relieving (650-787°C) in one system

③ Maintenance-Free Operation

• Patented Air-Cooling eliminates water cooling systems

• Solid-State Power Modules rated for 100,000+ cycles

• Dust-Proof Construction for harsh job sites

Certified Industrial Applications

▸ Welding Processes:

• Pre-weld heating (API/ASME compliance)

• Post-weld stress relief (PWHT)

• Hydrogen bake-out (H2 removal)

▸ Metal Fabrication:

• Coating removal (paint/powder)

• Shrink fitting (bearing/bushing installation)

• Composite material curing

Global Service Commitment

✓ 18-month warranty on power components
✓ Overseas technical centers in 6 countries
✓ Remote diagnostics via Canroon Connect®

Specifications:

Key Features & Technical Advantages

Advanced Temperature Management

• Multi-thermocouple intelligent control system automatically tracks hottest/coolest points during heating/cooling cycles

• User-friendly interface with manual programming or auto temperature-based modes

• Real-time open output detection prevents unsafe operation

Superior Energy Efficiency

• 92% energy conversion efficiency (TÜV-certified) - direct induction heating minimizes heat loss

• Zero fuel consumption vs. traditional gas heating systems

• Reusable insulation blankets (50+ cycles) reduce consumable costs by 70%

Engineered for Industrial Reliability

• Ground fault protection with automatic shutdown system (IEEE compliant)

• Flame-free operation eliminates explosion risks in welding environments

• Military-grade components withstand 24/7 operation in harsh conditions

Unmatched Process Quality

• Uniform heating penetration prevents material distortion (+/- 5°C variance)

• 3X faster time-to-temperature than conductive heating methods

• Non-contact heating preserves surface integrity of precision components

Mobility & Rapid Deployment

• Heavy-duty optional running gear (450kg capacity) for job site mobility

• Plug-and-play setup with preconfigured heating blankets <15 minutes

Tag:induction stress relieving machine
