CE Certificated Large Power Induction Brazing Machine for Short circuit Ring of Electric Motor
Product Details
| Input Power | 3-Phase, 400V (±20%) | Output Frequency | 10~40KHz |
|---|---|---|---|
| Power | 60~120KVA | Resonance | Series Resonance |
| Circuit | Digital Circuit | Size | 470.5x456x1290.5mm |
| High Light | electromagnetic induction heater,stress relieving equipment,CE Certificated Induction Brazing Machine |
||
Product Description

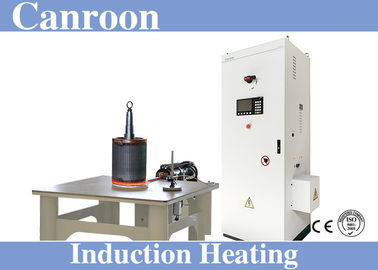

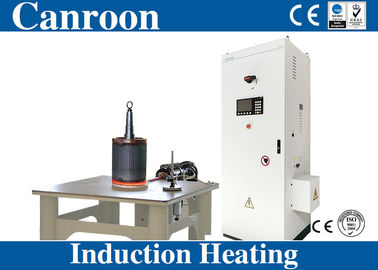

CE Certificated Induction Brazing Machine for Short circuit Ring of Electric Motor
CR2100 series induction heating system includes big power generator (60~300KVA) and chiller for water cooling to ensure a reliable running in long time.
It also equipped with:
DSP controlled by a LCD display and keyboard panel, complete with handheld coaxial transformer with 5M flexible cable.

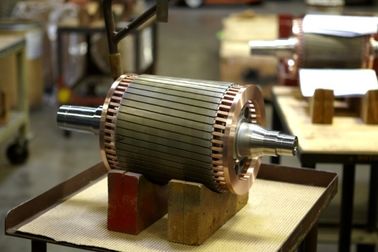

Customized coil to cover short circuit ring, to realize precise and fast heating.
This powerful system will offfer great help for your work, improving efficiency largely.
Induction Heating Power Source:
| Model | Rated input voltage and frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure/flow rate | Dimension (mm) |
| CR2100-060B-14TW1 |
3-Phase /400V (±20%) 50/60Hz |
60 KVA | 91A | 10~40KHZ |
4~6 bar ≥25L/min |
D: 470.5 W: 456 H: 1290.5 |
| CR2100-080B-14TW1 | 80 KVA | 121A | ||||
| CR2100-100B-14TW1 | 100 KVA | 152A |
4~6 bar ≥35L/min |
|||
| CR2100-120B-14TW1 | 120 KVA | 182A | ||||
| CR2100-160B-14TW1 | 160 KVA | 243A |
5~25KHZ
|
4~6 bar ≥50L/min |
D: 671.5 W: 780 H: 1986.5 |
|
| CR2100-200B-14TW1 | 200 KVA | 303A | ||||
| CR2100-250B-14TW1 | 250 KVA | 380A |
4~6 bar ≥60L/min |
|||
| CR2100-300B-14TW1 | 300 KVA | 456A |
