Input Voltage | 400V | Input Frequency | 50-60Hz |
---|---|---|---|
Input Ampere | 15A | Output Power | 10KW |
Output Frequency | 10-40KHz | Cooling Water Pressure | 4-6 Bar, ≥12L/min |
Highlight | electromagnetic induction heater,induction heating systems,400V Induction Welding Heating Brazing Equipment |

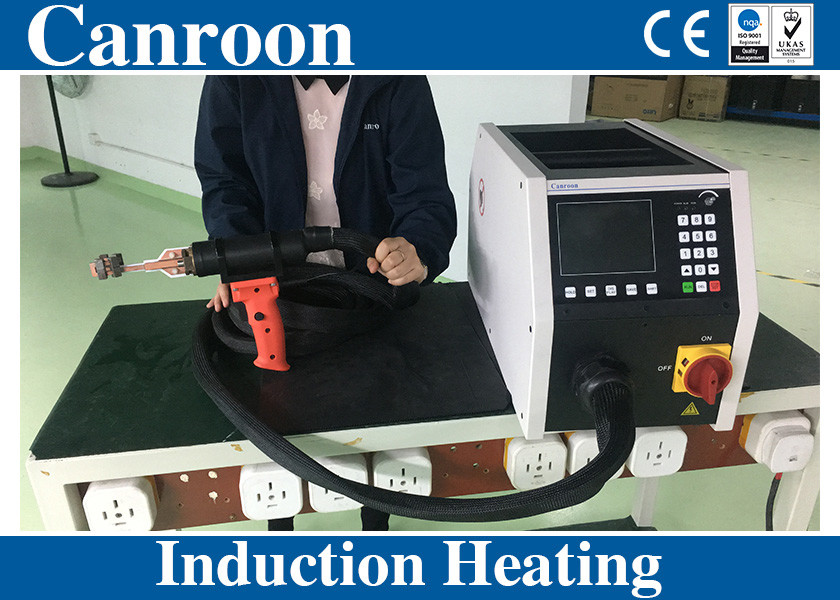

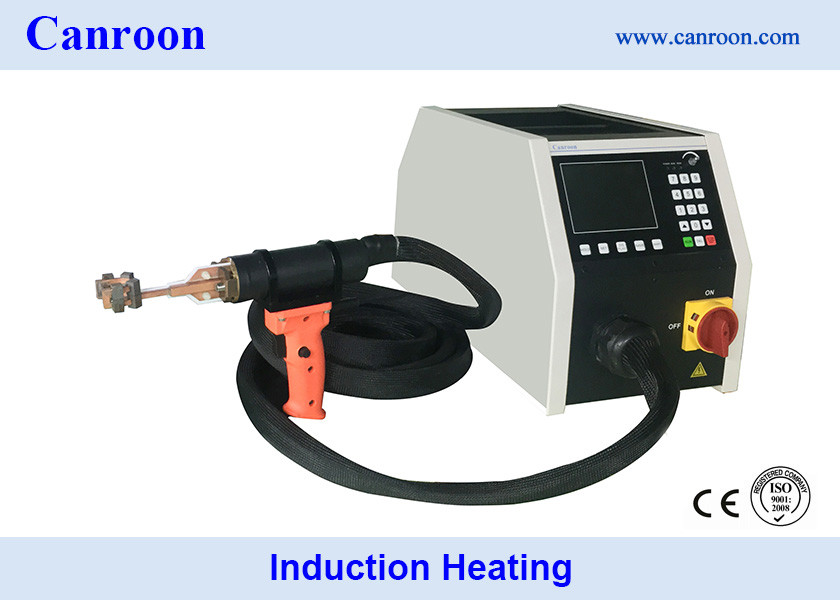

Induction Welding Heating Brazing Equipment For Curing / Forging / Straightening

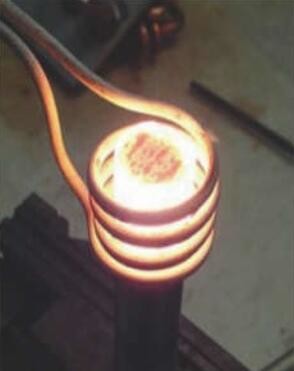

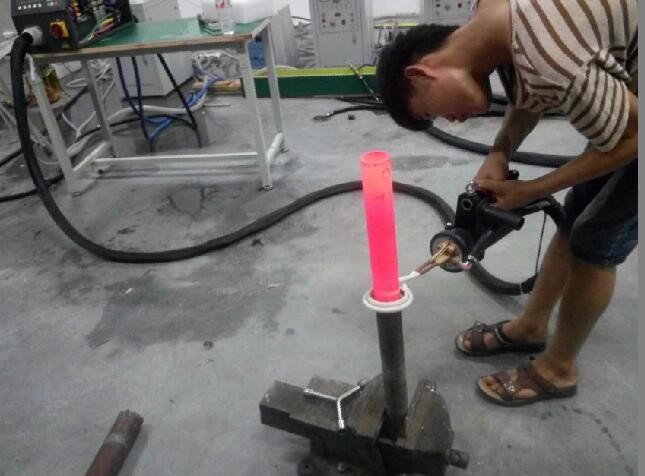

Induction brazing heating equipment
Product features:
1. High efficient: thermoelectric conversion efficieny: >85%;
2. Enviromental friendly: zero pollution, zero discharge;
3. Intelligent: PID temperature closed-loop control, precise temperature control;
4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.
5. Operation interface: humanized MMI, chinese/ English available;
6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;
7. Automation integration: Quickly and easily integrated into automated production lines;
8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
Model
|
Rated input voltage and frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure/ flow rate | Dimension(mm) |
CR2100-010B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 10KW | 15A | 10-40KHZ | 4-6 bar, ≧12L/min | 581.5*283*334 |
CR2100-015B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 15KW | 22A | 10-40KHZ | 4-6 bar, ≧12L/min | 581.5*283*334 |
CR2100-020B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 20KW | 30A | 10-40KHZ | 4-6 bar, ≧12L/min | 581.5*283*334 |
CR2100-025B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 25KW | 37A | 10-40KHZ | 4-6 bar, ≧12L/min | 581.5*283*334 |
CR2100-030B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 30KW | 45A | 10-40KHZ | 4-6 bar, ≧19L/min | 581.5*283*334 |
CR2100-035B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 35KW | 53A | 10-40KHZ | 4-6 bar, ≧19L/min | 581.5*283*334 |
CR2100-040B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 40KW | 60A | 10-40KHZ | 4-6 bar, ≧19L/min | 581.5*283*334 |
CR2100-050B-14TW1 | 3 Phase/ 400V(±20%) 50/60Hz | 50KW | 75A | 10-40KHZ | 4-6 bar, ≧19L/min | 581.5*283*334 |
