Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor

Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor
Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor

Large Image :  Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor

Product Details:
Place of Origin: Shenzhen China
Brand Name: Canroon
Certification: CE, ISO9001:2008
Model Number: CR2100
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Wooden case, or depends on you
Delivery Time: A week after confirmed payment
Payment Terms: T/T
Supply Ability: 20 Piece/Pieces per Week
Detailed Product Description
Input Power: 380V 3-Phase Temperature: 800~900℃
Cooling: Water Cooling Resonance: Series Resonance
Control Model: Digital Control Output: 10~50KW; 10~40KHz
High Light:

electromagnetic induction heater

,

stress relieving equipment

Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor





Brazing flat copper wire of electric motor is complicated. It involves big amount of brazing work, and asks for strict process standard.



To increase the working efficiency, and guarantee high quality, brazing asks for fast and controllable heating.



Canroon induction brazing system are customized based on CR2100 generator, brazing gun, and various inductors / coils of different shape&size to fit the flat copper wire.



Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor 0



Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor 1



Brazing Gun

Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor 2



Our brazing gun are specially designed with two keys, with which you can realize remote control start and stop of heating.

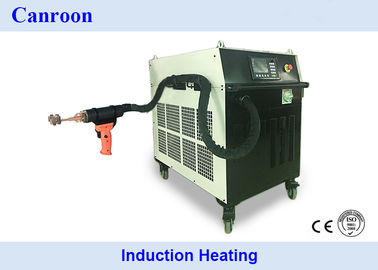

CR2100 Generator



All-in-one type generator integrated with built-in chiller for water-cooling. The compact machine not only provides power to brazing gun, but also offers a complete system for cooling with compressor, pump, water sink.



No need for external chiller, and water tube connection. This simple and compact machine is perfect for on-site brazing.



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Appearance
CR2100-010B-14TW1

3-phase /400V

(±20%) 50/60Hz

10KW 15A 10~40KHZ Mobile Induction Heating Welding Machine for Brazing Flat Copper Wires of Electric Motor 3
CR2100-015B-14TW1 15KW 22A
CR2100-020B-14TW1 20KW 30A
CR2100-025B-14TW1 25KW 37A
CR2100-030B-14TW1 30KW 45A
CR2100-035B-14TW1 35KW 53A
CR2100-040B-14TW1 40KW 60A
CR2100-050B-14TW1 50KW 75A
