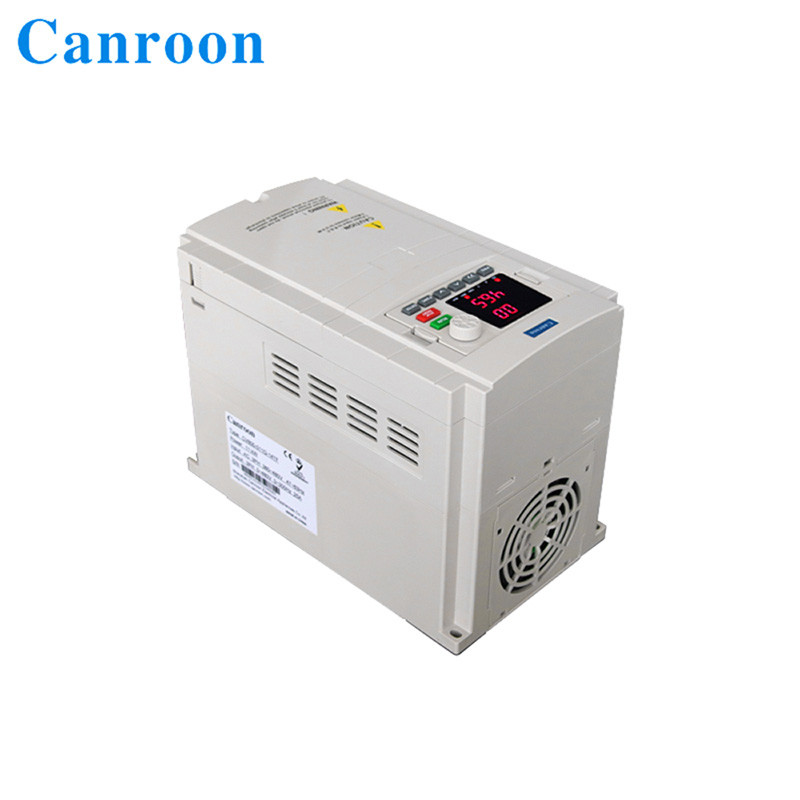

600HZ 380V CV800-002G-14TF Variable Frequency Inverter 3 Phase 2.2KW

Basic Information
Place of Origin: CHINA
Brand Name: Canroon
Certification: CE
Model Number: CV800-002G-14TF
Minimum Order Quantity: 1 Piece
Price: 66~101usd/piece
Packaging Details: wooden case, carton or customized
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces/ month
Detail Information
Warranty: 18months Control Mode: VF CONTROL
Power Phase Number:: 3 PHASE Protection: Short Circuit Protection
Frequency: 0-600HZ Rated Power: 2.2KW 3hp
Control Mode: Vf And Simple Vector Control Efficiency: 90%
Advantage: Big Saving Type: Ac-dc-ac
Application: Pumps, Fans, Motors, Compressor Nominal Voltage: 380V
High Light:

600HZ 380V Variable Frequency Inverter


CV800-002G-14TF Variable Frequency Inverter


2.2KW Variable Frequency Drive Converter

Product Description

Product Introduce
CV800 series 380V 3 Phase 2.2 KW motor drive frequency variable inverter
   CV800 series multi-function inverter is specially designed for small and medium power equipment. The product adopts vectorized V/f control technology, built-in PID control, multi-speed control, programmable operation control, standard Modbus communication and other technologies. The compact structure can further reduce the installation space.


Product Feature
  • Compact and powerful
  • High starting torque, adapt to various loads
  • Supports programmable operation control, making complex applications easier
  • Stronger overload capacity, shorter acceleration time
  • Built-in PID function for full-closed-loop control
  • Comprehensive protection function, more reliable operation
600HZ 380V CV800-002G-14TF Variable Frequency Inverter 3 Phase 2.2KW 0


Technical Index and Specification
Input Rated Voltage, Frequency 3-phase (-4T) 380V;50/60HZ
Allowed Voltage Range 3-phase (-4T)320V~460V
Output Voltage 4T;0~380V
Frequency 0~600HZ
Overload Capacity 10% for long-term, 150% for 1 min, 180% for 5s
Control Mode V/F control, Simple vector control

Control Character

Frequency Setting


Analog Input 0.1% of maximum output frequency
Digital Setting 0.1HZ
Frequency Precision Analog Input Within 0.2% of maximum output frequency
Digital Setting Within 0.01% of set output frequency

V/F Control


V/F Curve

(voltage frequency


Reference frequency setting 5~600 Hz, multipoint V/F

curve setting, or fixed curve of constant torque, low decreasing

torque 1, low decreasing torque 2, square torque



Manual setting: 0.0~30% of rated output





Automatic lifting: automatically determine the lifting torque based

on the output current combined with the motor parameters

Control Character

Senseless Vector



Voltage Frequency


Adjust pressure/frequency ratio according to motor parameter and

unique algorithm

Torque Character Starting torque
100% rated torque at 5.0 Hz (V/F Control)
150% rated torque at 1.5 Hz (simple vector control)

Current and

Voltage Restrain

Current closed-loop control, free from current impact, perfect

restrain function of overcurrent and overvoltage


Restrain during


Specially for users with a low or unsteady voltage power grid: even lower than the

allowable voltage range, the system can maintain the longest possible operating time

based on its unique algorithm and residual energy allocation strategy

Typical function

Multi-velocity and

Traverse Operation

7-segment programmable multi-velocity control, multiple operating modes are


PID Control

Built-in PID controller (able to preset frequency). Standard configuration RS485

communication function, multiple communication protocol for choice, synchronizing

control function.



Frequency Setting


Analog Input


Direct voltage 0~10V, direct current 0~20mA

(optional up limit and lower limit)

Digital Output


Operation panel setting, RS485 port setting, UP/DW terminal

control, or combined with analog input

Output Signal

Analog Input


1 channel OC output and one channel relay output

(TA, TB,TC), up to 14 choices

Digital Output

1 channel analog signal output, output ranging within 0~20mA or

0~10V with flexibly setting, achievable output of physical

quantities like set frequency, output frequency




Dynamic steady state, static steady state, and unsteady voltage for choices to obtain

the steadiest operation

Acceleration and

Deceleration Time


0.1S~999.9min continuous setting





Dynamic braking initial voltage, backlash voltage and dynamic braking continuous




Halt DC braking initial frequency:0.00~【F0.05】upper limit frequency
Braking time:0.0~30.0s;Braking current:0.0%~50.0%of rated current
Low Noise Running Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise
Counter A built-in counter, facilitate system integration
Operation Function

Upper limit and lower limit frequency setting, frequency hopping operation, reversal

running restraint, slip frequency compensation, RS485 communication, frequency

control of progressive increase and decrease, failure recovery automatically, etc.



n Panel





Output frequency, output current, output voltage, motor speed, set frequency, module

temperature, PID setting, feedback, analog input and output



The latest 1 faults record; running parameters record when the latest fault tripping

happens including output frequency, set frequency, output current, output voltage, DC

voltage and module temperature etc 6 running parameters record.

Protective Function

Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat,

short circuit, default phase of input and output, motor parameter adjustment

abnormality, internal memory fault, etc.






-10℃~+40℃ (please run the VFD in derated capacity when ambient temperature

is 40°C~50°C)

Ambient Humidity 5%~95%RH,without condensing drops
Surroundings Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust)
Altitude Running in derated capacity above 1000m, derate 10% for every 1000m rise.
Structure Protection Level IP20
Cooling Method Air cooling with fan control

Installation Method


Wall-hanging type,Cabinet type
Voltage Classes Model No. Rated Power (KW) Rated Output Current (A)
380V 3-phase CV800-00AG-14TF 0.4 1.2
CV800-00BG-14TF 0.75 2.5
CV800-001G-14TF 1.5 3.7
CV800-002G-14TF 2.2 5
CV800-003G-14TF 3 6.8
CV800-004G-14TF 3.7 9
CV800-005G-14TF 5.5 13
CV800-007G-14TF 7.5 17
CV800-011G-14TF 11 25


    Such as the rubber and plastic industry (blow molding machine, extruder, injection molding machine, rubber machinery, rubber mixing machine, etc.), automated production lines, constant pressure water supply, textile machinery, food filling , Logistics equipment, ceramic equipment, electronic equipment, packaging machinery, etc.
600HZ 380V CV800-002G-14TF Variable Frequency Inverter 3 Phase 2.2KW 1

Installation and wiring

600HZ 380V CV800-002G-14TF Variable Frequency Inverter 3 Phase 2.2KW 2

600HZ 380V CV800-002G-14TF Variable Frequency Inverter 3 Phase 2.2KW 3
