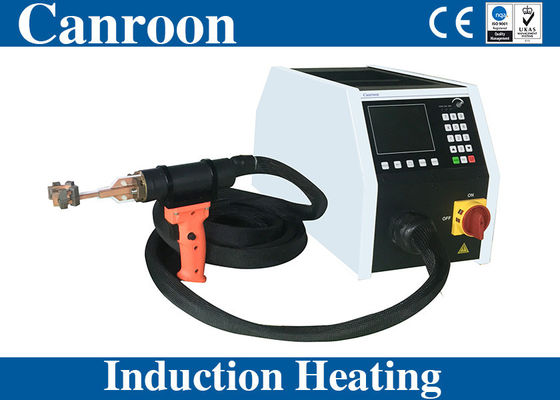

High Frequency Portable 10KVA to 50KVA IGBT Induction Annealing Machine with Handheld Induction Coil
Product Details
| Power | 10-50KVA | Tech | IGBT Induction Heating |
|---|---|---|---|
| Size | Portable | Frequency | High Frequency, Medium Frequency |
| Inductor | Handheld Induction Coil, Customized | Control | Digital Control |
| Cooling | Water Cooling | Application | Induction Annealing, Heat Treatment |
| Highlight | low frequency induction heating,industrial induction heating,High Frequency Induction Annealing Machine |
||
Product Description
High Frequency Portable IGBT Induction Annealing Machine
Power:10-50kw
Applications:metal annealing, also efficient for brazing, hardening, curing, etc
Frequency:10-40kHZ
Voltage: 3phase, 380-460V, 50/60HZ,
Certificates: CE, ISO, etc
Cooling system: water cooling
Application industries: aviation, metallurgy, tools and equipment, automotive, etc
Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc
Features: portable, high efficient, modular design, digital control, etc
Technical Parameters of high frequency portable IGBT induction annealing machine:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase /400V (±20%) 50/60Hz |
10KVA | 15A | 10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A | ||||
| CR2100-020B-14TW1 | 20KVA | 30A | ||||
| CR2100-025B-14TW1 | 25KVA | 37A |
4~6 bar ≥19L/min |
|||
| CR2100-030B-14TW1 | 30KVA | 45A | ||||
| CR2100-035B-14TW1 | 35KVA | 53A | ||||
| CR2100-040B-14TW1 | 40KVA | 60A | ||||
| CR2100-050B-14TW1 | 50KVA |
75A |
Pictures of high frequency portable IGBT induction annealing machine:
Digital control for precise and stable working state,
Modular design for easy maintenance and repair,
Fast and uniform heating, high efficiency,
HHT/handheld coaxial transformer for automatic production,
Detachable inductor can be customized according to your workpiece,
Small and portable size, easy to carry around,
Application details of high frequency portable IGBT induction annealing machine:
Here we use one steel plate, before annealing, we mark the hardness of each part, then use our induction heating machine for annealing, then test each part again, results are very satisfactory and our machine performs very well on this application.

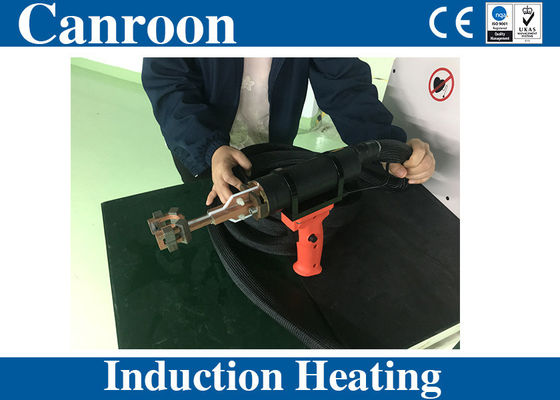

HHT(hand held transformer)
Inductors, can be customized:
Advantages of high frequency portable IGBT induction annealing machine:
· High Temp. & Fast Heating
Able to reach >1000℃ within seconds.
· Accurate Control
The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.
· Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
· Easy Maintenance
Due to modular design, the maintenance will be easy and low-cost.
· Self-Diagnosis
Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.
