80Kw Air Cooled Induction Heat Treatment Machine For Weld Preheating

Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating

About Canroon's CR2000 series Electric induction heater 80Kw Air Colled induction

heat treatment machine For Weld Preheating

CR2000 series medium frequency induction heating system is designed and manufactured by Canroon, specially

for using of welding preheat, post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate

stress relief), and joint anti-corrosion coating.

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2009

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description about Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating :

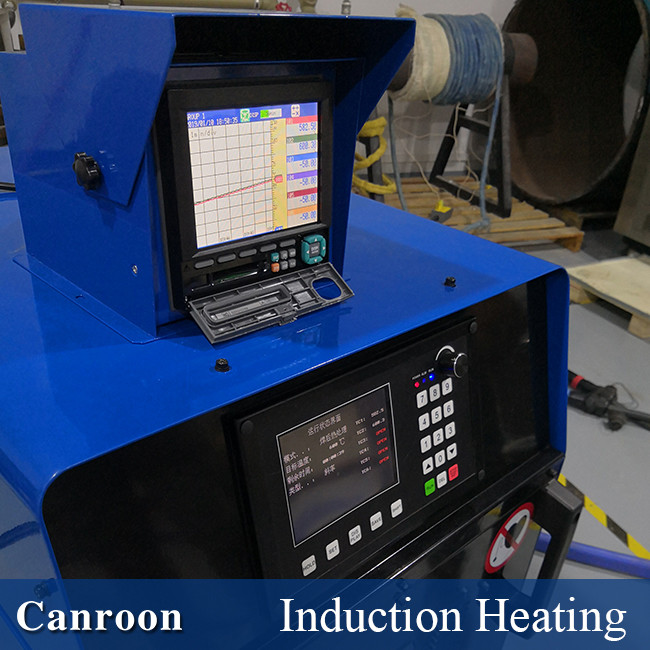

The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple

outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an

extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator

to achieve maximum output from the induction coils.

Applications of Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating :

With the introduction of the Intelligent Mobile Induction Preheater , this simple and cost-effective heating process can be

applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on

Specifications of Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating:

Accessories of Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating:

Our induction heater uses new technology with IGBT module, digital control, and modular design,

can be used for welding preheat, PWHT, stress relieving, etc, also efficient for joint anti-corrosion coating.

Customized Inductor of Electric induction heater 80Kw Air Colled induction heat treatment machine For Weld Preheating:

Canroon provide customized inductor to adapt various workpieces, and ensure easier operation and higher

working efficiency.

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice
including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor,
all of which are easily dismountable and reconnected to the power source. So the power source can
be used for heating workpiece of different size and shape.

Applications of the CR2000 series Electric induction heater is used for welding

preheating and post-heating:

Application industries: offshore platform, power station, oil and gas pipeline construction, etc

Applications: pipe welding preheat, PWHT/ post weld heat treatment, joint anti-corrosion coating, etc

Features:digital control, self-fault diagnosis, modular design, fault code feedback, high efficiency, etc

Competitive Advantage:

1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,

reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of

the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.

FAQ:

Tag:Induction Preheater
