Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size

Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size
Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size

Large Image :  Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size

Product Details:
Place of Origin: Shenzhen China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR100-000-AA1
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: depend on our customers
Delivery Time: A week after confirmed payment
Payment Terms: T/T
Supply Ability: 100 Pieces per Week
Detailed Product Description
Type: Portable Charge Voltage: 100-240VAC, 50/60Hz
Automatic Spot Welding Time: 3 Seconds Recover / Charging Time: 10 Seconds
Thermocouple Size: 0.5mm/0.7mm/1.0mm
High Light:

portable spot welding machine

,

thermocouple welding machine



Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size





CR100 portable thermocouple welder was designed and manufactured by Canroon, as an important optional accessories of our CR2000 series induction heating system.



This portalbe spot welding machine ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.



It can also be used for welding of metal workpiece and other metal material.





Feastures:



  • small size, portable type;
  • light and handy
  • fast spot welding;
  • automatic charging;
  • easy operation interface;



Specification:



  Charge Voltage      100-240VAC, 50/60Hz
  Accumulator Working Voltage      12VDC 50/60Hz
  Accumulator Capacity      3.2Ah
  Automatic Spot Welding time      3 seconds
  Recover / Charging time      10 Seconds
  Charging State Display      LED
  Max. Penetration Depth      <0.2mm
  Max. Heating Penetration Depth      <0.3mm
  Thermocouple Size      0.5mm / 0.7mm / 1.0mm





 Size & Weight:



Hight Width Depth Weight
74mm 185mm 188mm 2.7kg





Features:

  • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
  • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
  • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
  • Strong electric storage ability enable 2000 times of using after fully charged;
  • Just 10 seconds for circuit recovery after one time spot welding;
  • Charging limitation, no need for watching when charging;
  • LED display enables visual run state management;
  • Protection for over discharge.

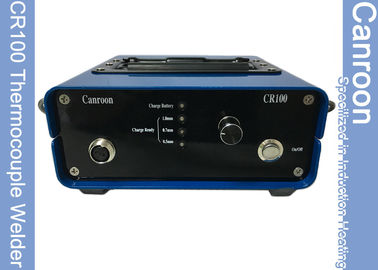

Front  Panel:



Fine Point Attachment Portable Spot Welder 0.5mm / 0.7mm / 1.0mm Thermocouple Size 0
