Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency
Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

Large Image :  Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

Product Details:
Place of Origin: Shenzhen
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR100
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: depend on our customers
Delivery Time: A week after confirmed payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 Piece/Pieces per Week
Detailed Product Description
Charge Voltage: 100-240VAC Accumulator Capacity: 3.2Ah
High Light:

portable spot welding machine

,

thermocouple welding machine



Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

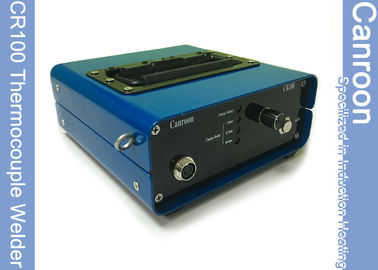

CR100 portable thermocouple welder ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.



This handy machine have 3 power level for choice with LED indicator, in accordance with thermcouple size 0.5mm / 0.7mm / 1.0mm.





Feastures:



  • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
  • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
  • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
  • Strong electric storage ability enable 2000 times of using after fully charged;
  • Just 10 seconds for circuit recovery after one time spot welding;
  • Charging limitation, no need for watching when charging;
  • LED display enables visual run state management;
  • Protection for over discharge.





Specification:



  Charge Voltage   100-240VAC, 50/60Hz
  Accumulator Working Voltage   12VDC 50/60Hz
  Accumulator Capacity   3.2Ah
  Automatic Spot Welding time   3 seconds
  Recover / Charging time   10 Seconds
  Charging State Display   LED
  Max. Penetration Depth   <0.2mm
  Max. Heating Penetration Depth   <0.3mm
  Thermocouple Size   0.5mm / 0.7mm / 1.0mm





Size & Weight:



Hight Width Depth Weight
74mm 185mm 188mm 2.7kg





Package:



Hand-held Outdoor Case / Safety Equipment Case

Gross Weight: 5.6KG
