35kH 120kw Induction Heating Machine 3 phases For Pipe Heat Treatment
Product Details
| Power | 40kw, 80kw, 120kw | Frequency | 3-35kHZ, Can Customize |
|---|---|---|---|
| Applications | PWHT, Post Weld Heat Treatment, Stress Relieving | Industry | Offshore Platform, Oil And Gas Pipeline, Power Plant |
| Feature | Digital Control, Modular Design, Self-diagnosis, Fault Feedback, Etc | Product Name | Induction Heating Machine For Pipe Heat Treatment |
| Highlight | 120kw Induction Heating Machine,offshore platform Induction Heating Machine 35kH,industrial PWHT Machine 3 phases |
||
Product Description
Induction Heating Machine for Pipe Heat Treatment
Brief introduction of Canroon induction heating machine for pipe heat treatment:
Induction post weld heat treatment machine is designed and manufactured by Canroon fused for
pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate
stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction,
and power plant construction & repair.
For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm,
heating temperature will reach 788℃ at most.
Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

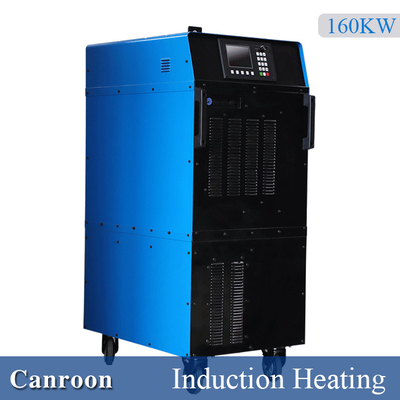

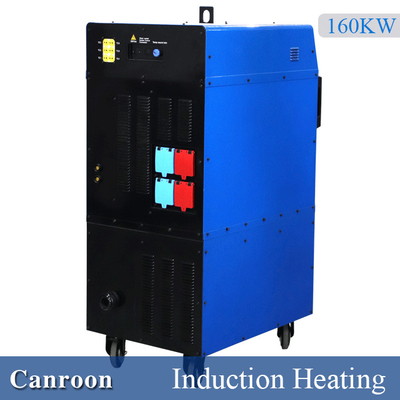

Overall pictures of Canroon induction heating machine for pipe heat treatment:
Our induction heating machine is manufactured by high quality materials, with temperature recorder and
universal wheels, display panel, 6 thermocouple inputs, and stop in emergency, connecting with induction
cable, can work very efficiently.
Technical parameters of induction heating machine for pipe heat treatment:
| Model | Temperature | Input Power | Input | Output | Dimension |
Weight |
| CR2000-040 | 788℃ | 40KVA |
3-phases |
35KW |
H:747mm |
95kg |
| CR2000-080 | 788℃ | 80KVA |
3-phases |
72KW |
H:830mm |
142kg |
| CR2000-120 | 788℃ | 120KVA |
3-phases |
108KW |
H:830mm |
142kg |
| CR2000-160 | 788℃ | 160KVA | 3-phases 380V-460V 50-60Hz 192-288A |
145KW 2.5-35KHz Duty Cycle: 100% |
H:1252mm W:596mm L:805mm |
234kg |

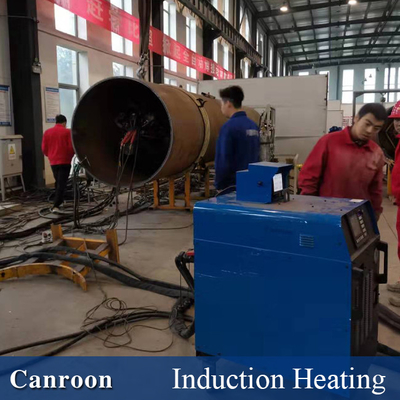

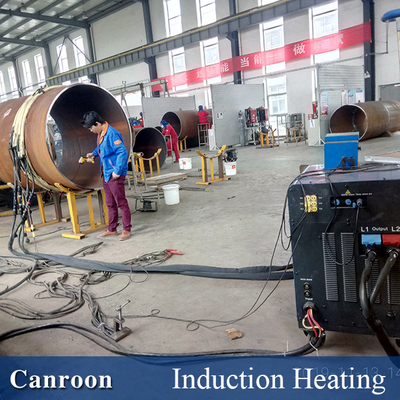

Application details of induction heating machine for pipe heat treatment:
Our induction heating machine can heat the stainless steel pipe for post weld heat treatment, with the
temperature recorder to show parameters when working, then print the PWHT curve for further research.
PWHT curve:
Features of induction heating machine for pipe heat treatment:
-
Friendly Interface and Accurate Control
-
Various Control Mode
-
Fault Record
-
Easy Maintenenace
-
Self Diagnosis
-
High Efficiency
-
Uniform Heating
-
Replaceable Heating Inductor
Accessories of induction heating machine for pipe heat treatment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder,
remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and
ensures you to start work soon after received our delivery.
