Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes

Brief introduction of Canroon induction post weld heat treatment machine for stainless steel pipes:

Induction post weld heat treatment machine is designed and manufactured by Canroon fused for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.

For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

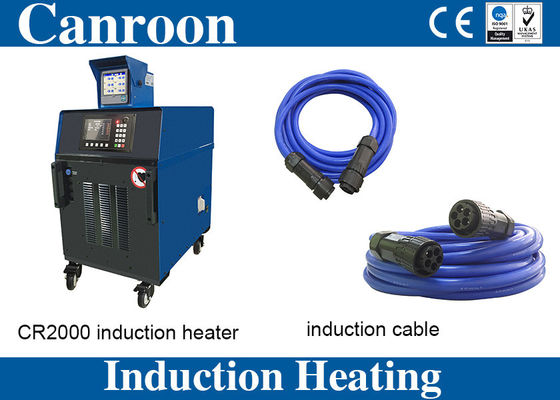

Overall pictures of Canroon induction post weld heat treatment machine for stainless steel pipes:

Technical parameters of induction post weld heat treatment machine for stainless steel pipes:

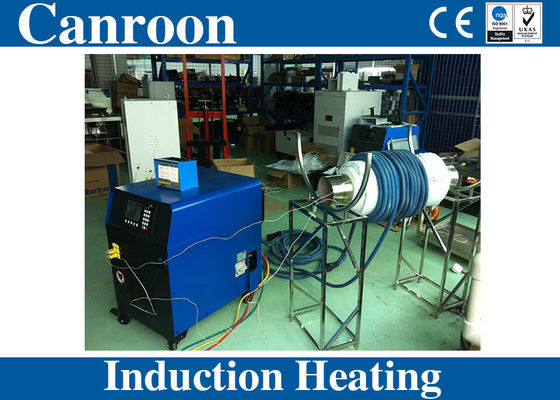

Application details of induction post weld heat treatment machine for stainless steel pipes:

Our induction heating machine can heat the stainless steel pipe for post weld heat treatment, with the temperature recorder to show parameters when working, then print the PWHT curve for further research.

PWHT curve:

Features of induction post weld heat treatment machine for stainless steel pipes:

• Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.

• Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

• Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

• Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

• Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

• High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

• Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.

• Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.

Accessories of induction post weld heat treatment machine for stainless steel pipes:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
