Home ProductsPortable Induction Heating Machine

Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design

Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design
Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design

Large Image :  Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE, ISO9001:2008, etc
Model Number: CR2100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 7 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Portable Induction Heating Machine Applications: For Carbon Steel Pipe
Rated Capacity: 80 KW Temperature Recorder: 6 Channel Temperature Recorder
Input Power: 380V , 3-Phase Certification: CE , ISO9001:2008
High Light:

induction heater machine

,

induction heating equipment



Induction Coil Machine/Induction Brazing Equipment for Metal Heat Treatment






Brief introduction of handheld induction coil machine/induction brazing equipment for metal heat treatment:

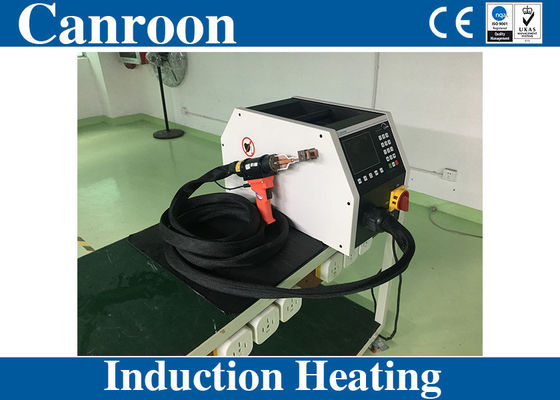

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor, soft induction cable, water cooling system, see the following picture:



Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance


Handheld coaxial transformer and customized inductor:



Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass

Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design 2




Application details of handheld induction coil machine/induction brazing equipment for metal heat treatment:



Our induction coil machine can be used for metal brazing, also efficient for hardening, annealing, curing, paint removal, and other applications that require for metal heat treatment. With fast and uniform heating, and good performance, induction heating is more and more popular in metal heat treatment. As for our CR2100 series portable type, we can provide 10-50kw, and inductor can be customized according to your workpiece for best performance.



Handheld 10KVA Induction Coil Machine Induction Brazing Equipment for Metal Heat Treatment with Modular Design 3




Technical Parameters of handheld induction coil machine/induction brazing equipment for metal heat treatment:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B-14TW1 3-phase
/400V
(±20%)
50/60Hz
10KVA 15A 10~40KHZ

4~6 bar

≥12L/min

L: 581mm

W: 283mm

H: 334mm

CR2100-015B-14TW1 15KVA 22A
CR2100-020B-14TW1 20KVA 30A
CR2100-025B-14TW1 25KVA 37A

4~6 bar

≥19L/min

CR2100-030B-14TW1 30KVA 45A
CR2100-035B-14TW1 35KVA 53A
CR2100-040B-14TW1 40KVA 60A
CR2100-050B-14TW1 50KVA 75A






Product features of handheld induction coil machine/induction brazing equipment for metal heat treatment:



1. High efficient: thermoelectric conversion efficieny: >85%;



2. Enviromental friendly: zero pollution, zero discharge;



3. Intelligent: PID temperature closed-loop control, precise temperature control;



4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.



5. Operation interface: humanized MMI, chinese/ English available;



6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;



7. Automation integration: Quickly and easily integrated into automated production lines;



8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;




Company information:
