5kw 10kw Portable Induction Heating Machine for Pipe Joint Anti-corrosion Coating in Pipeline Offshore
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE; ISO9001:2008
Model Number CR2000
Minimum Order Quantity 1 set
Price FOB
Packaging Details wooden case
Delivery Time within 5 days if available in stock
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month
Product Details
Machine Name Induction Heating Machine Power 5kw, 10kw
Application Pipe Joint Anti-corrossion Coating, Welding Heat Treatment Industry Pipeline, Offshore, Power Plant
Frequency High Frequency Induction Heating IGBT
Highlight

induction heat treating equipment

,

induction heating equipment

Product Description

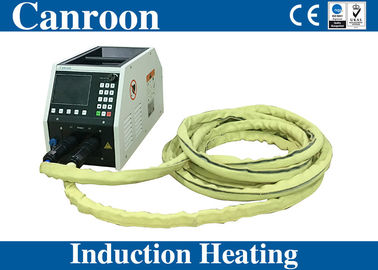

Portable Induction Heating Machine for Pipe Joint Anti-corrosion Coating

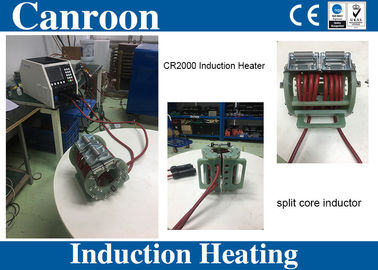

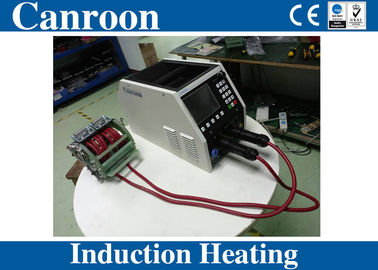

Detailed picture of portable induction heating machine for pipe joint anti-corrossion coating:

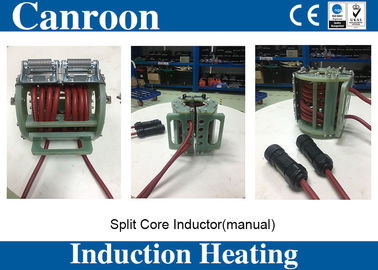

Small and portable, 5kw, 10kw, digital control, modular design, connect with split core inductor, this type inductor can best suit your pipe, and equally heating, easily to open and close.



5kw 10kw Portable Induction Heating Machine for Pipe Joint Anti-corrosion Coating in Pipeline Offshore


Technical parameters of portable induction heating machine for pipe joint anti-corrossion coating:



Model Temperature Input Power Input Output Dimension Weight
CR2000-005B-12SF2 788℃ 5kVA

1-phase

220-240V

50-60Hz

20.8-22.7A

4.2kW

5-60 KHz

duty cycle 100%

W:242.9mm

H:295.2mm

D: 504.4mm



16kg



CR2000-005B-14TF1



788℃ 5kVA

3-phase

380-460V

50-60Hz

6.3-7.6A

4.5kW

3-35 KHz

duty cycle 100%

W:263mm

H:302mm

D:535mm



18.6kg



CR2000-010B-14TF1



788℃

10kVA



3-phase

380-460V

50-60Hz

12.5-15A



9kW

3-35 KHz

duty cycle 100%

W:263mm

H:302mm

D:535mm



18.6kg






Application details of portable induction heating machine for pipe joint anti-corrossion coating:



Our portable induction heating machinecan be applied in joint anti-corrosion coating in oil and gas pipeline construction, offshore platform, power plant, work very well, and high efficiency.



Digital Control Induction Heating Machine 5kw for Welding Preheating PWHT






Accessories of portable induction heating machine for pipe joint anti-corrossion coating:



We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our dellivery.



Air Cooling Post Weld Heat Treatment Induction Heating Machine Price




Advantages of digital control induction heating machine 5kw for welding preheating PWHT:

  • precise control

We have display panel to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, induction heater will display fault code, which was detailed explained in manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
