10kw 20kw Portable Induction PWHT Machine For Welding Preheat Offshore Jacket Parts
| Place of Origin | Shenzhen china |
|---|---|
| Brand Name | canroon |
| Certification | CE ISO9001:2008 |
| Model Number | CR2000 |
| Minimum Order Quantity | 1 piece |
| Price | US $3000-4000 / Set, FOB |
| Packaging Details | wooden case or as you require |
| Delivery Time | within 5 days if available in stock |
| Payment Terms | L/C, T/T, Western Union, cash, etc |
| Supply Ability | 20 Piece/Pieces per Week |
Product Details
| Machine Name | Induction Heater/induction Heating Machine | Power | 5kw, 10kw, 15kw , 20kw, |
|---|---|---|---|
| Output Frequency | 3-35kHZ | Machine Size | 263x304x545mm |
| Weight | 22kg | Cooling Method | Air Cooling |
| Heating Method | Induction Heating | Application | Pipes Heat Treatment: Preheating, Post Weld Heat Treatment |
| Application Field | Offshore Platform, Oil And Gas Pipeline Construction, Power Station, Etc | Application Details | PWHT For Flange Joint, Offshore Jacket Parts, Etc |
| Highlight | air cooling flange joint PWHT Machine,offshore jacket parts PWHT Machine,20kw portable Induction PWHT Machine |
||
Product Description
Welding preheating and post-heating is an important application field of induction heating.
The welding of steel after preheating can reduce the stress,improve the welding strength,and
prevent cracking.Post-heating is used for dehydrogenation,annealing,tempering,normalizing
and other processes.
Induction heating is used for welding preheating and post-heating.It has the characteristics of
good controllability,can realize complex process program,non-contact heating,wide
adaptability,high efficiency,and energy density,and can realize on-line heating.
Induction heater/induction heating machine is designed and manufactured by Canroon used for
pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress
relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant
construction & repair. portable one has 5kw, 10kw, It is small in size, easy to take, and convenient to operate.
Suitable pipes size: When applied in pipe post weld heat treatment/PWHT, 5kw induction heater is suitable
for pipe size with diameter of less than 200mm and thickness of less than 25mm, 10kw induction heater is
suitable for pipe size with diameter of 200-400mm and thickness of less than 30mm, heating temperature
should be lower than 788℃, fast and uniform heating.
Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.
Details of Canroon portable induction heater/induction heating machine:
Front:
Technical parameters of induction heater/induction heating machine for PWHT:
| Model | Temperature | Input | Output | Dimension | Weight |
| CR2000-005B-12SF | 788℃ |
Power:5KVA Voltage:Single 220-240V Frequency:50-60Hz Current:20.8-22.7A |
Power:4.5kW Frequency:5-60KHz |
W:262.4MM H:304MM D:545MM
|
22kg
|
|
CR2000-005B-14TF
|
788℃ |
Power:5KVA Voltage:three-phase /400V(±20%) Frequency:50-60Hz Current: 6-9A |
Power:4.5kW Frequency:3-35KHz |
||
|
CR2000-010B-14TF
|
788℃ |
Power:10KVA Voltage:three-phase /400V(±20%) Frequency:50-60Hz Current: 12-18A
|
Power:9kW Frequency:3-35KHz |
||
|
CR2000-015B-14TF |
788℃ |
Power:15KVA Voltage:three-phase /400V(±20%) Frequency:50-60Hz Current: 18-27A |
Power:13.5kW Frequency:3-15KHz |
||
|
CR2000-020B-14TF |
788℃ |
Power:20KVA Voltage:three-phase /400V(±20%) Frequency:50-60Hz Current: 24-36A |
Power:18kW Frequency:3-15KHz |

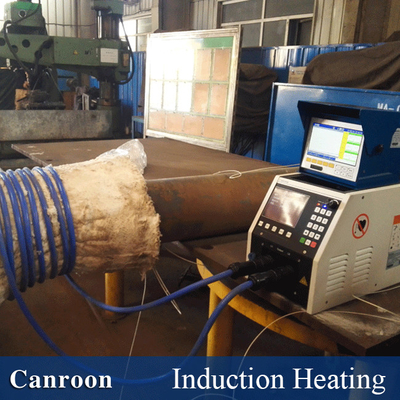

Application details of induction heater/induction heating machine in pipes PWHT(post weld heat treatment):
Accessories of induction heating machine:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote
switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start
work soon after received our delivery.
According to the workpiece and process requirements to customize a variety of tooling inductors including:
Blanket Inductor,C-type Inductor,Split-core / Clamp Inductor,Plate / Flat Inductor,Ring Inductor and so on.
Features of portable induction heating machine:
- precise control
We have display board to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.
- Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of
preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different
parameters to set. Thus brings the benefit of wide applicability and precise control.
- Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault
occurs such as open-loop output or short out.
- Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.
- Self Diagnosis
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster
than conventional processes due to the method of applying heat, reducing cycle time.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
