Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE, ISO9001:2008, etc
Model Number: CR2100
Minimum Order Quantity: 1 set
Price: Negotiable price
Packaging Details: wooden case
Delivery Time: within 7 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detail Information
Machine Type: Portable Induction Heating Machine Applications: Metal Heating, Brazing, Etc
Cooling: Water Cooling Input Power: 380V , 3-Phase
Certification: CE , ISO9001:2008 Power: 10-60kw
Dimensions: 87.9*51.6*44.6CM Warranty Of Core Components: 1 Year
High Light:

Refrigeration Accessories portable brazing machine

,

Portable Copper Pipe Brazing Machine

,

Lifting System Copper Pipe Brazing Machine


Product Description

Section portable copper pipe brazing machine Lifting System For Refrigeration Accessories



Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular
both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor,
soft induction cable, water cooling system.



Our portable handheld induction Brazing machines are used for various brazing process such as tube brazing,electrical rotor brazing,

conical drill bit brazing, carbide-edged blade brazing, steel blade brazing and fittings brazing.



Product features of portable copper pipe brazing machine Lifting System For Refrigeration Accessories:



Ours portable induction heating generators are built for induction brazing and feature output power of 5-60kw.

Its functions of fast temperature control,energy control and fast beat operation are especially suitable for brazing.
These products are mainly used in transformer factories,air conditioners,refrigerators,major electrical machinery

factories,railway electric locomotives,compressors and other industries.



Brand Canroon (manufacturer)
Model CR2100-
Tech digital control | module design | induction heating
Control Mode power control mode | temperature control mode
Heating Material

all metal:

iron, steel, copper, brass, zinc, aluminum, silver, gold, etc

Applications brazing, curing, hardening, annealing, shrink fitting, etc




Technical Parameters of portable copper pipe brazing m​achine Lifting System For Refrigeration Accessories:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B







3-phase
/400V
(±20%)
50/60Hz

10KVA 15A









10~40KHZ



    4~6 bar

     ≥12L/min











L : 591

W : 282

H : 339





CR2100-015B 15KVA 22A
CR2100-020B 20KVA 30A
CR2100-025B 25KVA 37A
CR2100-030B 30KVA 45A
CR2100-035B 35KVA 53A
CR2100-040B 40KVA 60A
CR2100-050B 50KVA 75A

    4~6 bar,

    ≥25L / min

L : 621.4

W : 282.4

H : 349.4

CR2100-060B 60KVA 87A



Brief introduction of portable copper pipe brazing m​achine Lifting System For Refrigeration Accessories:

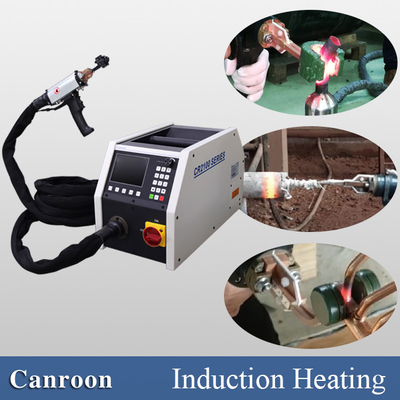

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular both in China

and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor, soft induction cable,

water cooling system, see the following picture:



Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 0



Handheld coaxial transformer and customized inductor:

HHT (hand held transformer) is easy to operate, and can be integrated with Robot Arm for automotion

production, two buttons to control the machine working:



Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 1

All of our IGBT induction heating brazing machine with HHT is carefully packed in wooden case for safe

delivery, by sea, by air according to your need.



Applications of portable copper pipe brazing m​achine Lifting System For Refrigeration Accessories :

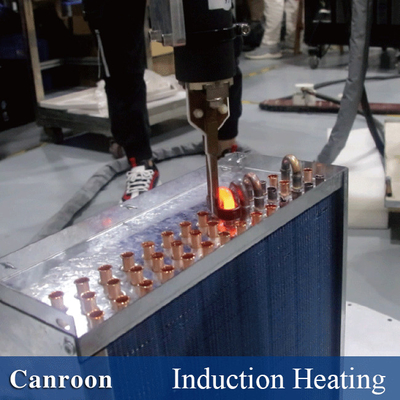

Induction brazing of short circuit ring, copper wires on motor stator, rotor bar,rotor coil,heat exchanger.

Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 2

Application details of portable copper pipe brazing m​achine Lifting System For Refrigeration Accessories:

Our induction coil machine can be used for metal brazing, also efficient for hardening, annealing, curing,

paint removal,and other applications that require for metal heat treatment. With fast and uniform heating,

and good performance,induction heating is more and more popular in metal heat treatment. As for our

CR2100 series portable type,we can provide 10-60kw, and inductor can be customized according to your

workpiece for best performance.



Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 3



Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

1)super and solid quality

2)Fast and punctual delivery

3)Standard export package or as customers’ need.

3.After-sale service

1)Assistance to your project

2)Repairing and maintenance if any problem occur in the warranty.

3)Installation and clerks training

4)Spare and wearing parts for free or with big discount

5)Any feedback of machines can be told to us, and we will try our best to support you.

4.Other cooperation service

1)Technology knowledge share

2)Factory building advising

3)Business expansion advising



Factory:

Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 4

Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 5



The exhibitions we attended

Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 6



Our certificates

Portable Copper Pipe Brazing Machine Lifting System For Refrigeration Accessories 7



Shipping ways

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Customers specifying freight forwarders for negotiable shipping nethods.

4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.



FAQ:

1. Are you a trading company or manufacturer?

We are manufacturer in Shenzhen, China, specialized in portable water cooling induction heater/induction

heating machine for many years.

2. What's the delivery time for sample and bulk order?

Normally for machines in stock, will deliver within 5 days, if not, 7-30 days according to your order.

3. What's your quality guarantee period?

12 months warranty

4. Can I get a lower price if I order large quantities?

Of course. Cheaper price with larger quantity

5. can you customize the machine for us?

Yes, of course, just tell me your detailed requirement, so I can suggest you most suitable model.
