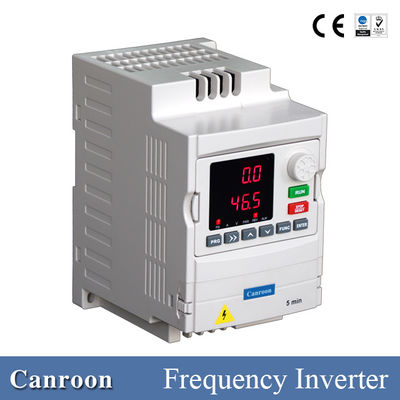

Multi Function Vector Control Inverter Compact Built In PID Function

Basic Information
Place of Origin: Guangdong, China
Brand Name: Canroon
Certification: CE
Model Number: CV800-00AG-12SF
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Control Mode: V/F Control Customized: Yes
Rated Power: 0.4KW Nominal Voltage: 220V
Power Phase Number: 1 Phase Output Power: 0.4-11kw
Voltage: 160V~260V Certificate: CE ISO9001
Application: AC Asynchronous Motor Overload Capacity: 150% Rated Current / 60s
High Light:

Compact Vector Control Inverter


programmable Vector Control Inverter


PID Function vector control frequency inverter

Product Description

Frequency inverters for every kind of plant and machine


Our frequency inverters are available in different designs and with a large number of optional functions that

cater to many needs and requirements. Another decisive issue is whether a frequency inverter is to be

positioned on the wall, in a central and protected position in a control cabinet, or directly in the field

(that is, a decentralized location).


CV800 Series Multi-Function Vector Control Inverter is powerful functions and excellent in performance,

suitable for medium and small power applications, such as constant pressure water supply, woodworking

machinery,textile equipment, food filling, logistics equipment, automated production lines, ceramic equipment,

electronic equipment, packaging machinery, etc.


What's a vector-controlled frequency inverter ?

A vector-controlled frequency inverter does not control an AC motor using a voltage/frequency ratio, but by

varying the motor input frequency and voltage. An advantage of this method is optimum torque control.

Vector-controlled frequency inverters offer other advantages too. For example, three-phase motors are

able to make direct high-speed starts, and speeds adjustments can be more closely controlled.


Product Description

Product Features

1,Compact and powerful
2,High starting torque, adapt to various loads

3,Supports programmable operation control, making complex applications easier
4,Stronger overload capacity, shorter acceleration time
5,Built-in PID function for full-closed-loop control
6,Comprehensive protection function, more reliable operation


Input Rated Voltage, Frequency 3-phase (-14T) 380V;47~63HZ
Allowed Voltage Range 3-phase (-14T) 320V~460V
Output Voltage -14T; 0~380V
frequency 0~600HZ
Overload Capacity G type: 110% for long-term, 150% for 1 min, 180% for 5s
Control Mode V/F control, simple vector control
Product model

Multi Function Vector Control Inverter Compact Built In PID Function 0

Voltage Classes Model No. Rated Power (KW) Rated Output Current (A)
   380V 3-phase CV800-00AG-14TF 0.4 1.2
CV800-00BG-14TF 0.75 2.5
CV800-001G-14TF 1.5 3.7
CV800-002G-14TF 2.2 5
CV800-003G-14TF 3 6.8
CV800-004G-14TF 3.7 9
CV800-005G-14TF 5.5 13
CV800-007G-14TF 7.5 17
CV800-011G-14TF 11 25


Multi Function Vector Control Inverter Compact Built In PID Function 1

Multi Function Vector Control Inverter Compact Built In PID Function 2


Inverter Applications:
Drawing machine, textile, packaging machinery, tobacco, paper making, stone machinery, mining machinery,

printing machinery,food, chemical, transmission, wire and cable, metallurgy, machine tools, wood machinery,

ceramic industry, building materials,and much more industries.

Multi Function Vector Control Inverter Compact Built In PID Function 3

Factory workshop

Multi Function Vector Control Inverter Compact Built In PID Function 4

Multi Function Vector Control Inverter Compact Built In PID Function 5

About Canroon

Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than

12 years, whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy,

chemical engineering, petroleum pipeline constrution, newmaterials, new energy and other fields.

Canroon has a professional R&D team, committed to convert its wisdom into leading products and services

to meet the needs of different customers, continuing to create values for customers



 Multi Function Vector Control Inverter Compact Built In PID Function 6



1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements


Multi Function Vector Control Inverter Compact Built In PID Function 7


Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.

3.After-sale service

Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and

clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to

us, and we will try our best to support you.


Shipping ways

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Customers specifying freight forwarders for negotiable shipping nethods.

4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.



1. Are you a trading company or manufacturer?

We are a manufacturer located in Shenzhen specilized in frequency inverter for many years

2. What's the delivery time for sample and bulk order?

Normally we have stock of the mini and medium voltage items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.

3. Do you accept OEM business?

Yes, our CV900 series include bespoke manufacturing, as well as a range of added value business solutions.

4. What's your quality guarantee period?

12 month for the frequency inverter

5.Which is your main market?

We export more than 100 coutries with very competitive cost and good quality.

6. Can I get a lower price if I order large quantities?

Cheaper price with more bigger quantity
