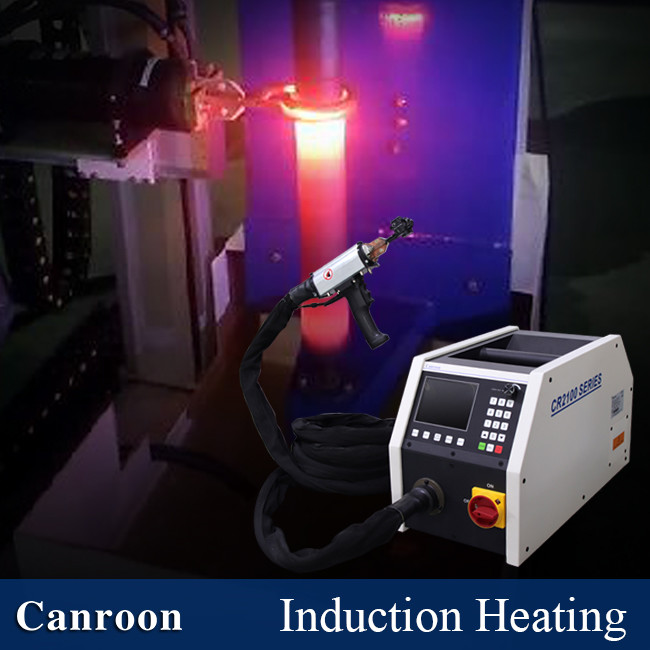

Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR2000
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden case or as you require
Delivery Time: within 7 days if available in stock
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets per month
Detail Information
Feature: Portable, Handheld Key Selling Points: Multifunctional
Core Components: PLC, Bearing, Gear Applicable Industries: Building Material Shops, Machinery Repair Shops
Flow Rate: ≥12L/min Inductors: Can Be Customized
Certifications: CE ISO Etc Size And Weight: Small And Light
High Light:

Metal Treatment Handheld Induction Heater

,

Water Cooling Handheld Induction Heater

,

Portable Induction Heater 20kw


Product Description

Portable handheld Induction heater brazing machine water cooling 20kw For Metal Heat Treatment



Our portable handheld induction Brazing machines are used for various brazing process such as tube brazing,

electrical rotor brazing, conical drill bit brazing, carbide-edged blade brazing, steel blade brazing and fittings brazing.



Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where

you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you

to use energy in the best possible way.



Parameters of Canroon small portable induction heater/ induction heating power source

for copper iron steel brass brazing welding hardening etc:




Model
Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate
Dimension
CR2100-010B


3-phase
/400V
(±20%)
50/60Hz


10KVA 15A



10~40KHZ



4~6 bar
≥12L/min







L: 62.1mm
W: 283mm
H: 350mm


CR2100-015B 15KVA 22A
CR2100-020B 20KVA 30A
CR2100-025B 25KVA 37A
CR2100-030B 30KVA 45A
CR2100-035B 35KVA 53A
CR2100-040B 40KVA 60A
CR2100-050B 50KVA 75A

4~6 bar

≥25L/min

CR2100-060B 60KVA 90A



Handheld water cooling induction heating machine has many advantages over

flame or other brazing methods:

1.Ultra-light and ultra-small handheld transformator,the minimum weight is only 3Kg.

2.Specific temperature or power curves can be set using a process program

3.Energy concentration,rapid heating,current and power response.

4.​Fast running mode,heating time can be less than 1s.

5.Rich interface forms to facilitate communication with PLC and computer.

6.Using a new generation of control core, can output power to any metal to achieve rapid heating, a wide

range of applications



Brief introduction of handheld water cooling induction heating machine

stainless steel/copper/aluminum heat treatment

Because brazed joints have a very clean, well-finished appearance, it is often the preferred bonding process for

manufacturing plumbing fixtures, tools, heavy construction equipment and high-quality consumer products.

Brazing is relatively fast and economical, requires relatively low temperatures and is highly adaptable to automation

and lean manufacturing initiatives.

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular
both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor,
soft induction cable, water cooling system.



Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 0

Inductors are important part of induction heater, so it is precisely designed, manufactured by good quality material,

and tested many times before outgoing, it is detachable, and can be customized accoridng to your needs:
Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 1



Application Ranges for handheld water cooling induction heating machine:

Induction heating is the process of heating electrically conductive materials like metals by electromagnetic

induction,through heat transfer passing through an induction coil that creates an electromagnetic field within

the coil to melt down steel,copper, brass, graphite, gold, silver, aluminum, and carbide.



Applications:
Brazing, Annealing, Straightening, Hardening, Bolt Untighten, Shrink Fitting, Paint/Coating Removal, etc.
see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar,
short circuit ring, etc



Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 2

Following is induction brazing of brass bar with Cu-Ag alloy as the welding solder to make slip ring for

wide applications.

Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 3


Production line:

Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 4



Packaging Details

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements



Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 5



Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

1)super and solid quality

2)Fast and punctual delivery

3)Standard export package or as customers’ need.

3.After-sale service

1)Assistance to your project

2)Repairing and maintenance if any problem occur in the warranty.

3)Installation and clerks training

4)Spare and wearing parts for free or with big discount

5)Any feedback of machines can be told to us, and we will try our best to support you.

4.Other cooperation service

1)Technology knowledge share

2)Factory building advising

3)Business expansion advising

Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 6

Portable Handheld Induction Heater Water Cooling 20kw For Metal Heat Treatment 7
