Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO

Basic Information
Place of Origin: Shenzhen china
Brand Name: canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Sets/Month
Detail Information
Machine Name: Induction PWHT Machine Power: 40kw, 80kw, 120kw
Applications: PWHT/Post Weld Heat Treatment Other Applications: Welding Preheat, Anti-corrosion Coating, Etc
Control Model: Digital Control Certificates: ISO, CE, Etc
High Light:

Anti Corrosion Coating Preheat PWHT Machine

,

Gas Pipeline Joint Induction Heating Machine

,

welding preheat Induction Heating Machine


Product Description

High Quality CE ISO Induction PWHT Machine for Flange






Brief introduction of Canroon high quality CE ISO induction PWHT machine for flange:



Induction heating technology is suitable for pipeline anticorrosion and pipeline coating process implementation,

which can not only greatly improve the production efficiency,but also achieve the best in technical indicators

such as temperature uniformity.



Rugged,fast operating clamp coils.

Rapid heating,uniform temperature.

Installation,connection and operation can be completed quickly to meet the urgent requirements of the site.

High efficiency and quick heating with low loss of generator and coil.

High reliability ensures continuous uninterrupted operation.



Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO 0

Induction heaitng equipment is designed and manufactured by Canroon used for pipes PWHT/post weld

heat treatment(DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and

welcomed by oil&gas piping,offshore platform construction, and power plant construction & repair.



We have portable type with 5kw, 10kw, for movable type, we have 40kw, 80kw, 120kw. For 40kw induction heating

equipment applied in PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm,

heating temperature will reach 788℃ at most. It can heat both carbon steel pipes and stainless steel pipes.



Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

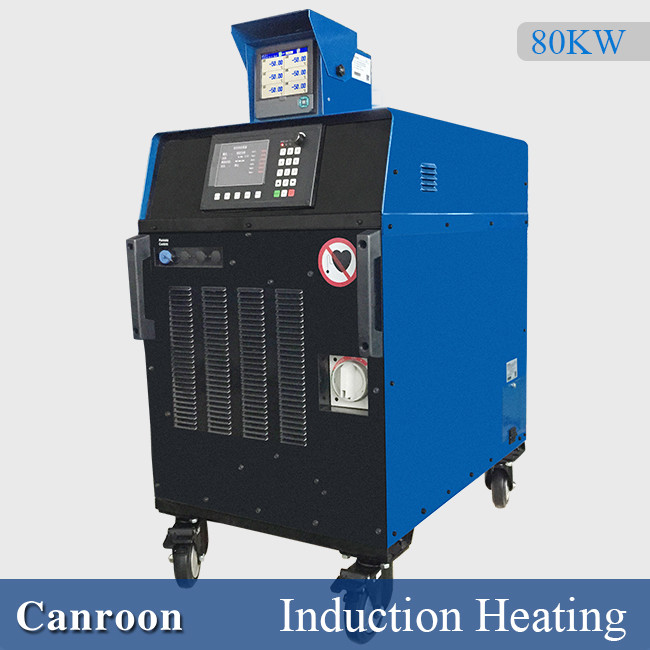

Overall pictures of Canroon high quality CE ISO induction PWHT machine for flange:



Canroon induction heating equipment is designed and manufactured with high quality materials, it has

beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display

panel to show working details, six thermocouple connections to record the temperatures, and remotecontrol

for working site accordingly.

Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO 1



Technical parameters of high quality CE ISO induction PWHT machine for flange:



Model Temperature Input Power Input Output Dimension

Weight


CR2000-040 788℃ 40KVA

3-phases
380V-460V
50-60Hz
50-61A

35KW
3-35KHz
Duty Cycle: 100%

H:747mm
W:548.5mm
L:847.5mm

95kg
CR2000-080 788℃ 80KVA

3-phases
380V-460V
50-60Hz
100-121A

72KW
2.3-35KHz
Duty Cycle: 100%

H:830mm
W:597mm
L:801mm

142kg
CR2000-120 788℃ 120KVA

3-phases
380V-460V
50-60Hz
150-181A

108KW
2.5-35KHz
Duty Cycle: 100%

H:830mm
W:597mm
L:801mm

142kg
CR2000-160 788℃ 160KVA 3-phases
380V-460V
50-60Hz
192-288A
145KW
2.5-35KHz
Duty Cycle: 100%
H:1252mm
W:596mm
L:805mm
234kg





Application details of high quality CE ISO induction PWHT machine for flange:



Induction heating machine with temperature recorder for pipe PWHT/post weld heat treatment works very well,

from the temperature feedback from thermocouple, we can see it is fast and uniform heating, insulation blanket

can keep heat, and the induction cable windings can be set according to your pipe, heating temperature, etc.

Following is picture of the detailed working site.



Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO 2

40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment




Features of high quality CE ISO induction PWHT machine for flange:

  • Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely

by giving value to temperature, time, heating rate, cooling rate, etc.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control.

The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant

power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide

applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like

shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and

time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the

heating zone is realized.

  • Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction

coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable

and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.






Accessories of high quality CE ISO induction PWHT machine for flange:



We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder,

remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time andensures

you to start work soon after received our delivery.



Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO 4

Anti Corrosion Coating Preheat Induction Heating Machine For Oil / Gas Pipeline Joint CE ISO 5
