Chinese Manufacturer Electromagnetic 40kw Induction Heating Machine for Welding
Place of Origin Shenzhen, china
Brand Name Canroon
Certification CE ISO9001:2008
Model Number CR2000-040
Minimum Order Quantity 1 PCS
Price FOB
Packaging Details wooden case or as you require.
Delivery Time within 5 days if available in stock
Payment Terms L/C, T/T, Western Union, MoneyGram, cash,
Supply Ability 500 sets/month
Product Details
Product Name Induction Heating Machine Power 40kw
Brand Canroon(China Manufacturer) Cooling System Air Cooling
Industry Offshore Platform, Power Station, Oil And Gas Pipeline Application PWHT For Carbon Steel Pipe And Stainless Steel Pipe
High Light

electromagnetic induction heater

,

stress relieving machine

,

electromagnetic induction heating machine

Product Description



Electromagnetic 40kw Induction Heating Machine for Welding






Brief introduction of Canroon electromagnetic 40kw induction heating machine for welding:



Brand:  Canroon(China manufacturer)

Certificates:  ISO, CE, etc

Power: 40kw (also supply 80kw, 120kw)

Frequency: 3-35kHZ

Heating temperature:  can be high as 788℃

Voltage:  3phase, 380-460V, 50/60HZ,

Suitable pipe size:  200-800mm diameter, 25-60mm thickness,

cooling system:  air cooling

Application industries:  offshore platform, power station, oil and gas pipeline construction, etc

Applications:  PWHT/ post weld heat treatment for carbon steel pipes and stainless steel pipes

Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc



Also, our induction heating machine can work well for welding preheating and joint anti-corrosion coating.




Overall pictures of Canroon electromagnetic 40kw induction heating machine for welding:

Our 40kw induction heating machine is movable with universal wheels, and temperature recorder can show detailed parameters when working and print the PWHT curve for further research. Display panel can show working details, and set the different applications, temperatures, time, etc, there are 6 thermocouples, can feedback the temperature of the relative positions.

Chinese Manufacturer Electromagnetic 40kw Induction Heating Machine for Welding

Technical parameters of electromagnetic 40kw induction heating machine for welding:



Model Temperature Input Power Input Output Dimension

Weight



CR2000-040 788℃ 40KVA

3-phases

380V-460V

50-60Hz

50-61A

35KW

3-35KHz

Duty Cycle: 100%

H:762mm

W:544mm

L:730mm

115kg
CR2000-080 788℃ 80KVA

3-phases

380V-460V

50-60Hz

100-121A

72KW

2.3-35KHz

Duty Cycle: 100%

H:845mm

W:592mm

L:801mm

190kg
CR2000-120 788℃ 120KVA

3-phases

380V-460V

50-60Hz

150-181A

108KW

2.5-35KHz

Duty Cycle: 100%

H:845mm

W:592mm

L:801mm

190kg






Application details of electromagnetic 40kw induction heating machine for welding:

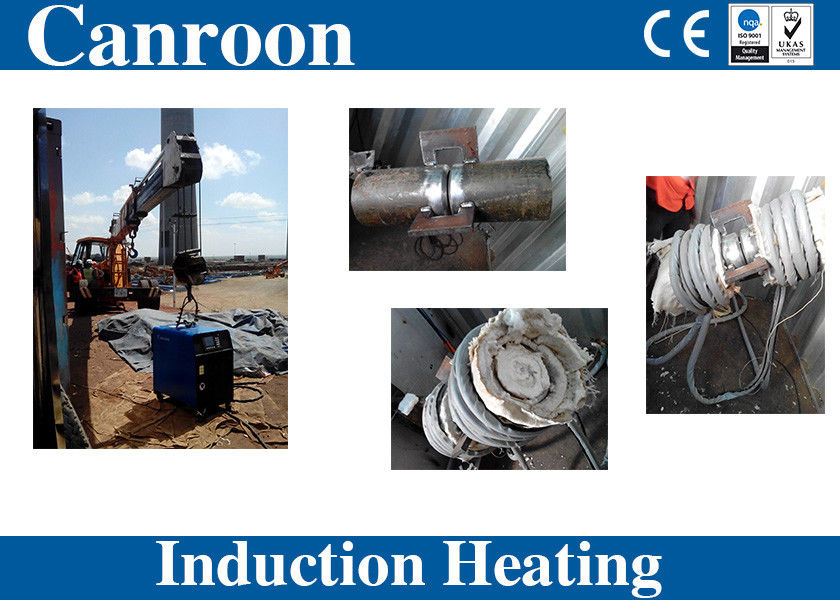

Our induction heating machine is widely applied in offshore, power station, pipline etc, can be easily hanged up with the hook. Induction cable, insulation blanket, thermocouple etc can result in better working conditions.



Chinese Manufacturer Electromagnetic 40kw Induction Heating Machine for Welding



PWHT curve:

40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment




Features of electromagnetic 40kw induction heating machine for welding:



  • Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.

  • Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.






Accessories of electromagnetic 40kw induction heating machine for welding:



We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
