CE 35KW Induction Hardening Machine
Place of Origin ShenZhen China
Brand Name Canroon
Certification CE ISO9001:2008
Model Number CR2000-035A-14T
Minimum Order Quantity 1
Price 35000USD
Packaging Details depend on our customers
Delivery Time A week after confirmed payment
Payment Terms L/C,T/T,Western Union
Supply Ability 20 Piece/Pieces per Week
Product Details
Rated Output 35Kw 1-35KHZ Input Power 380V 3-Phase
Resonance Series Resonance Temperature Max 1450°F
Transportation By Sea Or By Air Product Name Induction Heating Equipment
High Light

induction hardening equipment

,

induction hardening machines

Product Description

CE 35KW Induction Hardening Machine



Quick Detail:



Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-035A-14T

Voltage:380V

Current:53A

Rated Capacity:35KW

Rated Duty Cycle:35KW

Dimensions:762*627*788.5

Weight:135Kg

Usage: pipeline preheating

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder



Description:

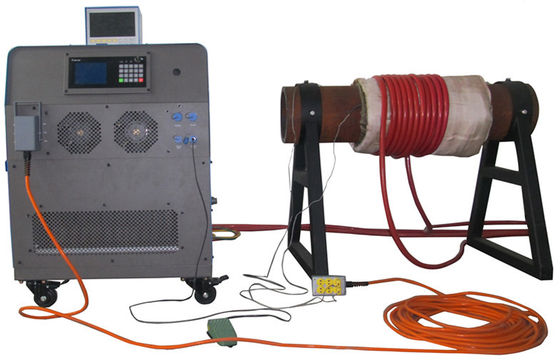

The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.



Applications:



With the introduction of theInduction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

  • Welding fabrication and construction;
  • Preheating of welds;
  • Post-weld heat treatment;
  • Coating removal;
  • Shrink Fit and so on
  • Pre-heating of an in-service pipeline to 100°C before welding on a sleeve



Specifications:



Input Amperes at Rated Output

380V:53A

Thermal conversion efficiency

More than 90%

Maximum Rated output

35KW

Cooling Mode

Air cooled

Input Power

380V 3-Phase,50HZ

Rated Output

35KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:762MM W:627MM D:788.5MM

Transportation

By sea or By Air

Weight

135KG

Warranty

12 Months



Competitive Advantage:



1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.
