|Place of Origin:||Shenzhen china|
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||wooden case|
|Delivery Time:||within 5 days if available in stock|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram, Cash|
|Supply Ability:||500 Sets/Month|
|Input Power:||40kw, 80kw, 120kw||Temperature:||Max 1450°F|
|Transportation:||By Sea Or By Air||Design:||Modular Deisgn|
|Control Model:||Digital Control||Rated Output:||3-35kHZ|
|Applications:||Pipes Post Weld Heat Treatment/PWHT||Machine Name:||Induction Heating Equipment In Power Plant|
stress relieving machine,
post weld heat treatment equipment,
Power Plant Induction heaitng equipment
Low Price Induction Heating Equipment for PWHT in Power Plant
Brief introduction of Canroon low price induction heating equipment for PWHT in power plant:
Induction heaitng equipment is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.
We have portable type with 5kw, 10kw, for movable type, we have 40kw, 80kw, 120kw. For 40kw induction heating equipment applied in PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most. It can heat both carbon steel pipes and stainless steel pipes.
Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

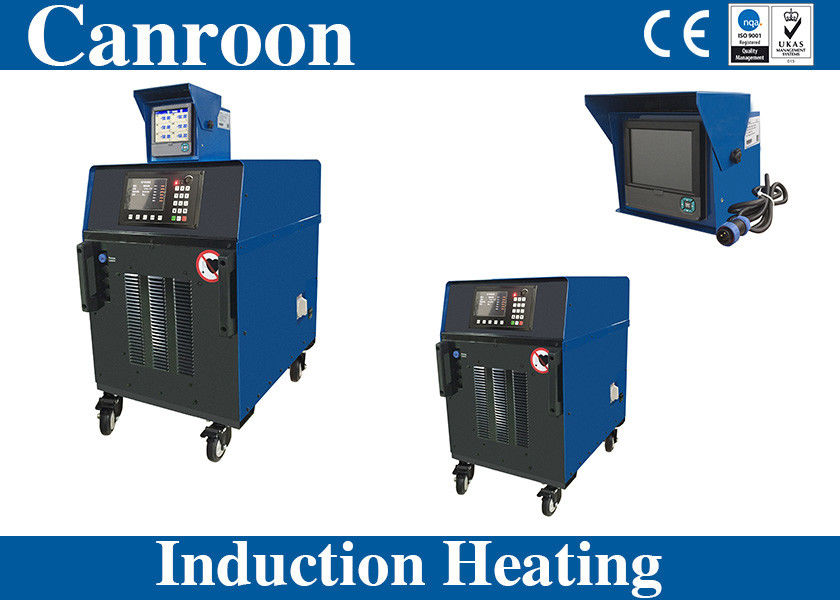

Overall pictures of Canroon low price induction heating equipment for PWHT in power plant:
Canroon induction heating equipment is designed and manufactured with high quality materials, it has beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display panel to show working details, six thermocouple connections to record the temperatures, and remote control for working site accordingly.
Technical parameters of low price induction heating equipment for PWHT in power plant:
Duty Cycle: 100%
Duty Cycle: 100%
Duty Cycle: 100%
Application details of low price induction heating equipment for PWHT in power plant:
Our induction heating equipment is widely applied in power plant PWHT:
Some pictures to show the details of the applications, insulation blanket to keep heat, induction cable to suit the workpiece, the welding process is very efficient and result is satisfactory.
Features of low price induction heating equipment for PWHT in power plant:
The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
Due to modular design, the maintance will be easy and low-cost.
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.
Accessories of low price induction heating equipment for PWHT in power plant:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
