IGBT Induction Heating Machine Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE, ISO9001:2008, etc
Model Number CR2100
Minimum Order Quantity 1 pcs
Price FOB
Packaging Details wooden case
Delivery Time within 7 days if available in stock
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month
Product Details
Power 10-50kw Tech IGBT Induction Heating
Application Induction Brazing, Heat Treatment Cooling Method Water Cooling
Cooling System Built-in Water Cooling System, Heating Method Induction Heating
High Light

induction preheating welding

,

stress relieving machine

Product Description



IGBT Induction Heating Machine/Induction Brazing Equipment






Power:10-50kw

Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc

Frequency:10-40kHZ

Voltage: 3phase, 380-460V, 50/60HZ,

Certificates: ISO, CE, etc

Application industries: aviation, metallurgy, tools and equipment, automotive, etc

Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc

Features: built-in chiller, HHT, universal wheels, digital control, self-fault diagnosis, modular design, etc






Technical parameters of IGBT induction heating machine/induction brazing equipment:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency
CR2100-010E-14TW1

3-phase

400V(±20%)

50/60Hz

10KVA 15A 10~40KHZ
CR2100-015E-14TW1 15KVA 22A
CR2100-020E-14TW1 20KVA 30A
CR2100-025E-14TW1 25KVA 37A
CR2100-030E-14TW1 30KVA 45A
CR2100-035E-14TW1 35KVA 53A
CR2100-040E-14TW1 40KVA 60A
CR2100-050E-14TW1 50KVA 75A

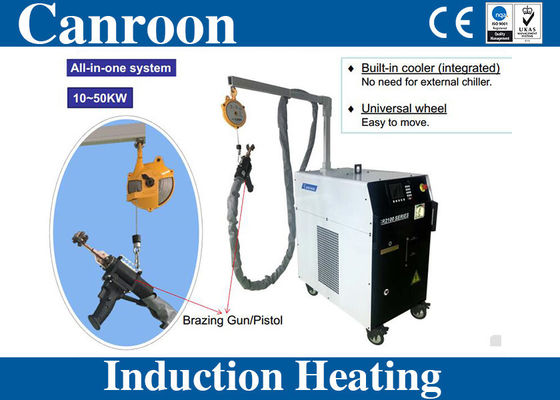

Overall pictures of IGBT induction heating machine/induction brazing equipment:



Canroon is China leading manufacturer of induction heating machine, our CR2100 series are especially designed for metal brazing, with water cooling system built-in, it will be more convenient when real-site working. The main structure concerns: induction heating machine, water cooling system, universal wheels, hanger, soft induction cable, HHT, detachable inductor.





IGBT Induction Heating Machine Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair




Applications of IGBT induction heating machine/induction brazing equipment:



Our induction heating machine can be applied in many metal industries, and suitable for nearly all metals like copper, steel, iron, brass, aluminum, etc, with fast and uniform heating, and good performance, induction heating is more and more popular in industry that requires for more automatic and new advanced technologies. Take motor spare parts brazing as an example, we did induction brazing for copper wire, steel bar, short circuit, rotor bar, rotor coil, copper tube, etc, so can be used for motor manufacturer or repair and maintenance.



See the following pictures of the working site:

IGBT Induction Heating Machine Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair






HHT (hand held transformer)&Inductors



IGBT high frequency induction heating machine induction brazing equipment metal heat treatment power supply with HHT






Advantages of IGBT induction heating machine/induction brazing equipment:



· High Temp. & Fast Heating

Able to reach >1000℃ within seconds.

· Easy Operation

CR2100 can be easily start&stop manually, and scan on workpieces surface to do local heating. It can also be integrated into robot arm to serve automatic line.

· Accurate Control

The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.

· Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

· Easy Maintenance

Due to modular design, the maintenance will be easy and low-cost.

· Self-Diagnosis

Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.

· Customized Inductor

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.
