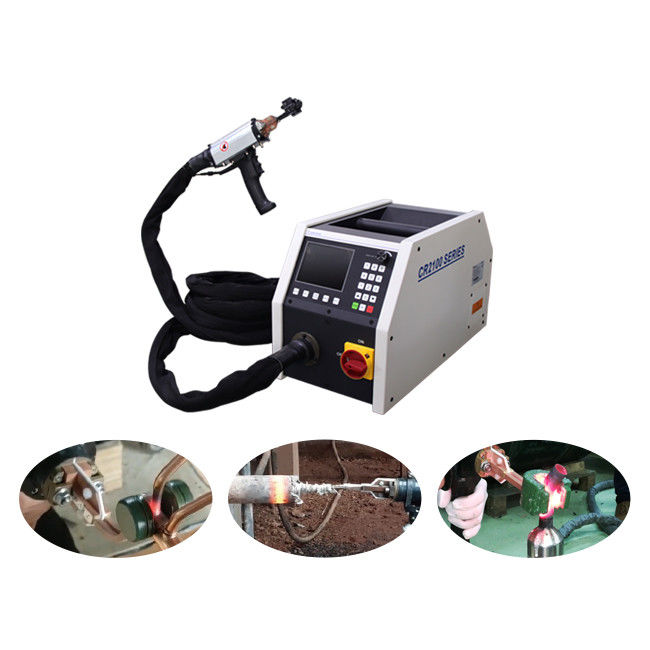

Customized Induction Heating Machine For Metal Heat Treatment
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Canroon |
| Certification | CE ISO9001 |
| Model Number | CR2100 |
| Minimum Order Quantity | 1 Piece |
| Price | negotiated price |
| Packaging Details | wooden case, carton or customized |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 3000 pieces/ month |
Product Details
| Applications | Metal Heat Treatment | Heating Speed | Fast |
|---|---|---|---|
| Service | Best Service Before, After Sale | Temperature Range | 0-400°C |
| Inductors | Can Be Customized | Feature | Portable, Handheld |
| Maintenance | Low | Voltage | 380V |
| High Light | Customized Induction Heating Machine,Induction Heating Machine For Metal |
||
Product Description
Product Introduce
CV800 series 380V 3 Phase 1.5 KW motor drive frequency variable inverter
CV800 series multi-function inverter is specially designed for small and medium power equipment. The product adopts vectorized V/f control technology, built-in PID control, multi-speed control, programmable operation control, standard Modbus communication and other technologies. The compact structure can further reduce the installation space.
Product Feature
- Compact and powerful
- High starting torque, adapt to various loads
- Supports programmable operation control, making complex applications easier
- Stronger overload capacity, shorter acceleration time
- Built-in PID function for full-closed-loop control
- Comprehensive protection function, more reliable operation
Technical Index and Specification
| Input | Rated Voltage, Frequency | 3-phase (-4T) 380V;50/60HZ | ||
| Allowed Voltage Range | 3-phase (-4T)320V～460V | |||
| Output | Voltage | 4T；0～380V | ||
| Frequency | 0～600HZ | |||
| Overload Capacity | 10% for long-term, 150% for 1 min, 180% for 5s | |||
| Control Mode | V/F control, Simple vector control | |||
|
Control Character |
Frequency Setting Resolution |
Analog Input | 0.1% of maximum output frequency | |
| Digital Setting | 0.1HZ | |||
| Frequency Precision | Analog Input | Within 0.2% of maximum output frequency | ||
| Digital Setting | Within 0.01% of set output frequency | |||
|
V/F Control
|
V/F Curve (voltage frequency character) |
Reference frequency setting 5~600 Hz, multipoint V/F curve setting, or fixed curve of constant torque, low decreasing torque 1, low decreasing torque 2, square torque |
||
|
Torque Compensation |
Manual setting: 0.0~30% of rated output | |||
|
Automatic Current-limiting and Voltage-limiting |
Automatic lifting: automatically determine the lifting torque based on the output current combined with the motor parameters |
|||
| Control Character |
Senseless Vector Control
|
Voltage Frequency Character |
Adjust pressure/frequency ratio according to motor parameter and unique algorithm |
|
| Torque Character | Starting torque | |||
| 100% rated torque at 5.0 Hz (V/F Control) | ||||
| 150% rated torque at 1.5 Hz (simple vector control) | ||||
|
Current and Voltage Restrain |
Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage |
|||
|
Undervoltage Restrain during Running |
Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy |
|||
|
Typical function |
Multi-velocity and Traverse Operation |
7-segment programmable multi-velocity control, multiple operating modes are optional. |
||
| PID Control |
Built-in PID controller (able to preset frequency). Standard configuration RS485 communication function, multiple communication protocol for choice, synchronizing control function. |
|||
|
RS485 Communication |
||||
|
Frequency Setting
|
Analog Input
|
Direct voltage 0~10V, direct current 0~20mA (optional up limit and lower limit) |
||
|
Digital Output
|
Operation panel setting, RS485 port setting, UP/DW terminal control, or combined with analog input |
|||
| Output Signal |
Analog Input
|
1 channel OC output and one channel relay output (TA, TB,TC), up to 14 choices |
||
| Digital Output |
1 channel analog signal output, output ranging within 0~20mA or 0~10V with flexibly setting, achievable output of physical quantities like set frequency, output frequency |
|||
|
Automatic Steady-voltage Operation |
Dynamic steady state, static steady state, and unsteady voltage for choices to obtain the steadiest operation |
|||
|
Acceleration and Deceleration Time Setting |
0.1S～999.9min continuous setting | |||
|
Brake
|
Dynamic Braking |
Dynamic braking initial voltage, backlash voltage and dynamic braking continuous adjustable |
||
|
DC Braking |
Halt DC braking initial frequency:0.00～【F0.05】upper limit frequency | |||
| Braking time:0.0～30.0s；Braking current:0.0％～50.0％of rated current | ||||
| Low Noise Running | Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise | |||
| Counter | A built-in counter, facilitate system integration | |||
| Operation Function |
Upper limit and lower limit frequency setting, frequency hopping operation, reversal running restraint, slip frequency compensation, RS485 communication, frequency control of progressive increase and decrease, failure recovery automatically, etc. |
|||
| Display |
Operatio n Panel Display
|
Running State |
Output frequency, output current, output voltage, motor speed, set frequency, module temperature, PID setting, feedback, analog input and output |
|
|
Alarm
|
The latest 1 faults record; running parameters record when the latest fault tripping happens including output frequency, set frequency, output current, output voltage, DC voltage and module temperature etc 6 running parameters record. |
|||
| Protective Function |
Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc. |
|||
|
Environment
|
Ambient Temperature
|
－10℃～＋40℃ (please run the VFD in derated capacity when ambient temperature is 40°C~50°C) |
||
| Ambient Humidity | 5％～95％RH,without condensing drops | |||
| Surroundings | Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust) | |||
| Altitude | Running in derated capacity above 1000m, derate 10% for every 1000m rise. | |||
| Structure | Protection Level | IP20 | ||
| Cooling Method | Air cooling with fan control | |||
|
Installation Method
|
Wall-hanging type,Cabinet type | |||
| Voltage Classes | Model No. | Rated Power (KW) | Rated Output Current (A) |
| 380V 3-phase | CV800-00AG-14TF | 0.4 | 1.2 |
| CV800-00BG-14TF | 0.75 | 2.5 | |
| CV800-001G-14TF | 1.5 | 3.7 | |
| CV800-002G-14TF | 2.2 | 5 | |
| CV800-003G-14TF | 3 | 6.8 | |
| CV800-004G-14TF | 3.7 | 9 | |
| CV800-005G-14TF | 5.5 | 13 | |
| CV800-007G-14TF | 7.5 | 17 | |
| CV800-011G-14TF | 11 | 25 |
Application
Such as the rubber and plastic industry (blow molding machine, extruder, injection molding machine, rubber machinery, rubber mixing machine, etc.), automated production lines, constant pressure water supply, textile machinery, food filling , Logistics equipment, ceramic equipment, electronic equipment, packaging machinery, etc.
Installation and wiring
Introduction of Canroon
Canroon is a remarkable energy saving solutions provider,whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy, chemical engineering, petroleum pipeline construction, new materials, new energy and other fields. Canroon has a professional R & D team, committed to convert its wisdom into leading products and services to meet the needs of different customers, continuing to create values for customers.Canroon has been striving to promote the sustainable and healthy development of China's energy conservation and emissions reduction career, with comprehensive advantages in the field of power electronics.We aim to become the industry leader and our duty is to improve the earth's natural environment, satisfy the social sustainable development for the principle, targeted for the user to create reliable, stable green energy production. "We create; we share", we will join partners to innovation as a means to jointly provide users with more reliable products and better solutions, more harmony between mankind and nature.
Exhibition
Packing
Certification
Payment & Delivery
Terms of Payment
- We surpport L/C, T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery)
Shippment
- Fedex/DHL/UPS/TNT for samples, door to door;
- By air or by sea for batch goods for FCL, airport/port receving;
- Customers specifying freight forwarders for negotiable shipping nethods.
- Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
