ISO Industrial Induction Heater 30KW For Annealing Welding Brazing
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE ISO9001
Model Number CR2100
Minimum Order Quantity 1 piece
Price Negotiated price
Packaging Details woodon case, carton or customized
Delivery Time 5-7 days
Payment Terms T/T, Western Union, L/C
Supply Ability 10000 pieces a month
Product Details
Feature Portable, Handheld Certifications CE ISO Etc
Temperature Range 0-400°C Power 10-60KW
Service Best Service Before, After Sale Durability Long-lasting
Temperature Control Precise Maintenance Low
High Light

ISO Industrial Induction Heater

,

Industrial Induction Heater 30KW

,

Induction Heater Machine For Annealing

Product Description

Product Description

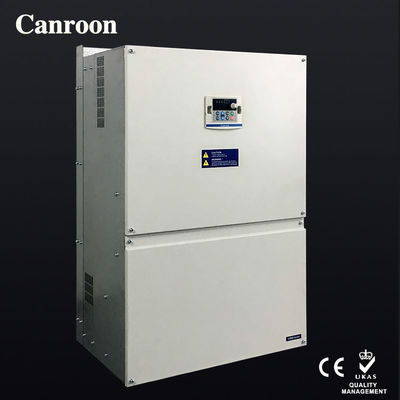

variable frequency drive inverter 3 Phase 380V 200KW for Motor drive

CV900G Series frequncy inverter include advanced technology of flux vector control. High torgue output of full frequency, high reponse, perfect load availability, high control percision of speed and good reliability, all of which ensure it to meet high requirment of various filed application.






Product Feature

Save energy and improve system efficiency

• Convert power in hybridization applications
• Match the speed of the drive to the process requirements
• Match the torque or power of a drive to the process requirements
• Improve the working environment
• Lower noise levels, for example from fans and pumps
• Reduce mechanical stress on machines to extend their lifetime

• Shave peak consumption to avoid peak-demand prices and reduce the motor size required








Specification





ISO Industrial Induction Heater 30KW For Annealing Welding Brazing



ISO Industrial Induction Heater 30KW For Annealing Welding Brazing

Input Rated Voltage, Frequency

3-phase(4T#sereis)380V;50/60HZ

1-phase(2S#series)220V;50/60HZ

Allowed Voltage Range

3-phase(4T#series)320V~480V

1-phase(2S#series)160V~260V

Output Voltage

4T#series; 0~480V

2S#series; 0~260V

Frequency Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ
Overload Capacity

G type: 110% for long-term, 150% for 1 min, 180% for 5s

P type: 105% for long-term, 120% for 1 min, 150% for 1s

Control Mode V/F control, advanced V/F control, V/F separation control, electric current vector control



Model Input voltage Rated power

Output Current

(A)

HP KG
CV900G-00AG-12SF

Single Phase

220V

0.4 2.4 1/2 1.5
CV900G-00BG-12SF 0.75 4.5 1
CV900G-001G-12SF 1.5 7 2
CV900G-002G-12SF 2.2 10 3 2.6
CV900G-003G-12SF 3.0 13 4
CV900G-004G-12SF 3.7 16 5
CV900G-005G-12SF 5.5 20 7
CV900G-007G-12SF 7.5 30 10 3.5
CV900G-0011G-12SF 11 42 15 4
CV900G-00BG-14TF

3 Phase

380V

0.75 2.5 1 1.5
CV900G-001G-14TF 1.5 3.7 2
CV900G-002G-14TF 2.2 5.5 3
CV900G-003G/004P-14TF 3/3.7 6.8/9 4/5 2.6
CV900G-004G/005P-14TF 3.7/5.5 9/13 5/7
CV900G-005G/007P-14TF 5.5/7.5 13/17 7/10
CV900G-007G/011P-14TF 7.5/11 17/25 10/15 3.5
CV900G-011G/015P14TF 11/15 25/32 15/20 4
CV900G-015G/118P-14TF 15/18.5 32/37 20/24.5 6.8
CV900G-018G/022P-14TF 18.5/22 37/45 24.5/30 7.3
CV900G-022G/030P-14TF 22/30 45/60 30/40
CV900G-030G/037P-14TF 30/37 60/75 40/50 17.3
CV900G-037G/045P-14TF 37/45 75/90 50/60
CV900G-045G/055P-14TF 45/55 90/110 60/73 27.5
CV900G-055G/075P-14TF 55/75 110/150 73/100
CV900G-075G/090P-14TF 75/90 150/176 100/120 62
CV900G-090G/110P-14TF 90/110 176/210 120/147 63
CV900G-100G/132P-14TF 110/132 210/253 147/176
CV900G-132G/160P-14TF 132/160 253/300 176/214
CV900G-160G/185P-14TF 160/185 300/340 214/247 100
CV900G-185G/200P-14TF 185/200 340/380 247/267
CV900G-200G/220P-14TF 200/220 380/420 267/294
CV900G-220G-/250P-14TF 220/250 420/470 294/334 200
CV900G-250G/280P-14TF 250/280 470/520 334/374
CV900G-280G/315P-14TF 280/315 520/600 374/420
CV900G-315G/350P-14TF 315/350 600/640 420/467 203
CV900G-350G/375P-14TF 350/375 640/700 467/500 235
CV900G-375G/400P-14TF 375/400 700/750 500/534 257
CV900G-400G/450P-14TF 400/450 750/820 534/600
CV900G-450G/500P-14TF 450/500 820/930 600/667



Application



Canroon CV900G OEM/ODM general frequency inverter drives single phase to 3 phase ac power inverter


Basic Running Wiring
The wiring parts of VFD include major loop and control loop. Open the cover of I/O terminals, users can see the major loop terminal and control loop terminal, and must conduct the wiring according to the following diagram.

ISO Industrial Induction Heater 30KW For Annealing Welding Brazing





Certification



ISO Industrial Induction Heater 30KW For Annealing Welding Brazing

 Payment Terms

 1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 20000 dollars

 2. MOQ: 1 set;



 3. Warranty: 18 months



Shipping ways

 1. Fedex/DHL/UPS/TNT for samples, door to door;

 2. By air or by sea for batch goods for FCL, airport/port receving;

 3. Customers specifying freight forwarders for negotiable shipping nethods.



 4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.

Canroon CV900G vfd High performance 1hp, 2hp, 3hp single phase to 3 phase 220v 240v  AC variable power drive frequency Inverter
