| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Canroon |
| Certification: | CE |
| Model Number: | CV900G-075G/090P-14TF |
| Minimum Order Quantity: | 1 piece |
| Price: | 1050usd/piece |
| Packaging Details: | woodon case, carton or customized |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 pieces a month |
| Type: | AC-DC-AC | Output Type: | Multiple |
|---|---|---|---|
| Output Frequency: | 50Hz/60Hz | Application: | Pump, Fan, Ac Motor, Compressor |
| Horse Power: | 100HP | Control Mode: | Vector Control, V/f Control |
| Frequency: | 0-3000hz | Warranty: | 18months |
| Sample Lead Time: | 1-3 Days | Bulk Order Lead Time: | 10-25 Days |
| Rate Power: | 75KW | Input Voltage: | 380V |
| High Light: | 100HP Variable Speed Drive Inverter,75KW Variable Speed Drive Inverter,CV900G-075G Ac Variable Frequency Drive |
||
Product Description

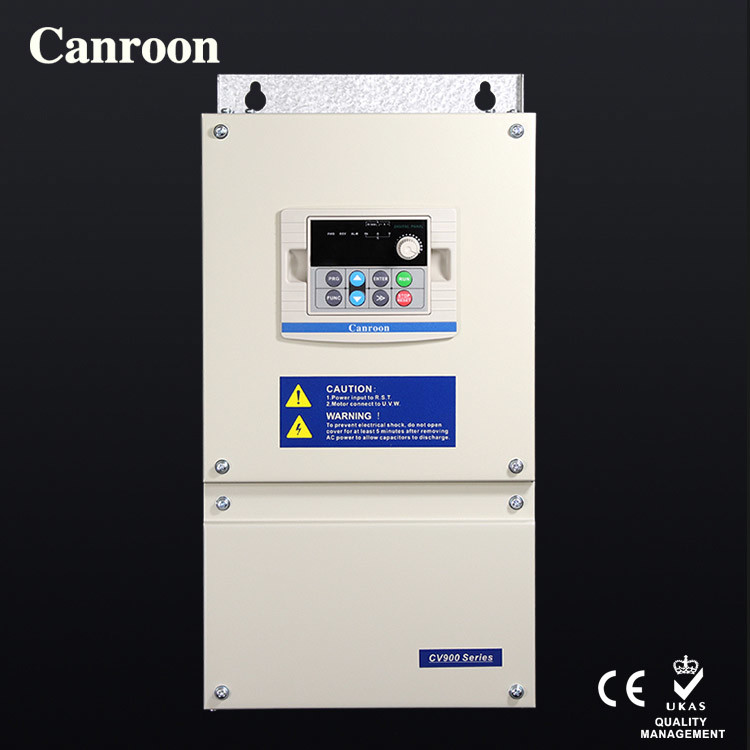

variable frequency drive inverter 3 Phase 380V 75KW for compressor drive
CV900G Series frequncy inverter include advanced technology of flux vector control. High torgue output of full frequency, high reponse, perfect load availability, high control percision of speed and good reliability, all of which ensure it to meet high requirment of various filed application.
Product Feature
Specification
| nput | Rated Voltage, Frequency |
3-phase(4T#sereis)380V;50/60HZ 1-phase(2S#series)220V;50/60HZ |
| Allowed Voltage Range |
3-phase(4T#series)320V~480V 1-phase(2S#series)160V~260V |
|
| Output | Voltage |
4T#series; 0~480V 2S#series; 0~260V |
| Frequency | Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ | |
| Overload Capacity |
G type: 110% for long-term, 150% for 1 min, 180% for 5s P type: 105% for long-term, 120% for 1 min, 150% for 1s |
|
| Control Mode | V/F control, advanced V/F control, V/F separation control, electric current vector control | |
| Model | Input voltage | Rated power |
Output Current (A) |
HP | KG |
| CV900G-00AG-12SF |
Single Phase 220V |
0.4 | 2.4 | 1/2 | 1.5 |
| CV900G-00BG-12SF | 0.75 | 4.5 | 1 | ||
| CV900G-001G-12SF | 1.5 | 7 | 2 | ||
| CV900G-002G-12SF | 2.2 | 10 | 3 | 2.6 | |
| CV900G-003G-12SF | 3.0 | 13 | 4 | ||
| CV900G-004G-12SF | 3.7 | 16 | 5 | ||
| CV900G-005G-12SF | 5.5 | 20 | 7 | ||
| CV900G-007G-12SF | 7.5 | 30 | 10 | 3.5 | |
| CV900G-0011G-12SF | 11 | 42 | 15 | 4 | |
| CV900G-00BG-14TF |
3 Phase 380V |
0.75 | 2.5 | 1 | 1.5 |
| CV900G-001G-14TF | 1.5 | 3.7 | 2 | ||
| CV900G-002G-14TF | 2.2 | 5.5 | 3 | ||
| CV900G-003G/004P-14TF | 3/3.7 | 6.8/9 | 4/5 | 2.6 | |
| CV900G-004G/005P-14TF | 3.7/5.5 | 9/13 | 5/7 | ||
| CV900G-005G/007P-14TF | 5.5/7.5 | 13/17 | 7/10 | ||
| CV900G-007G/011P-14TF | 7.5/11 | 17/25 | 10/15 | 3.5 | |
| CV900G-011G/015P14TF | 11/15 | 25/32 | 15/20 | 4 | |
| CV900G-015G/118P-14TF | 15/18.5 | 32/37 | 20/24.5 | 6.8 | |
| CV900G-018G/022P-14TF | 18.5/22 | 37/45 | 24.5/30 | 7.3 | |
| CV900G-022G/030P-14TF | 22/30 | 45/60 | 30/40 | ||
| CV900G-030G/037P-14TF | 30/37 | 60/75 | 40/50 | 17.3 | |
| CV900G-037G/045P-14TF | 37/45 | 75/90 | 50/60 | ||
| CV900G-045G/055P-14TF | 45/55 | 90/110 | 60/73 | 27.5 | |
| CV900G-055G/075P-14TF | 55/75 | 110/150 | 73/100 | ||
| CV900G-075G/090P-14TF | 75/90 | 150/176 | 100/120 | 62 | |
| CV900G-090G/110P-14TF | 90/110 | 176/210 | 120/147 | 63 | |
| CV900G-100G/132P-14TF | 110/132 | 210/253 | 147/176 | ||
| CV900G-132G/160P-14TF | 132/160 | 253/300 | 176/214 | ||
| CV900G-160G/185P-14TF | 160/185 | 300/340 | 214/247 | 100 | |
| CV900G-185G/200P-14TF | 185/200 | 340/380 | 247/267 | ||
| CV900G-200G/220P-14TF | 200/220 | 380/420 | 267/294 | ||
| CV900G-220G-/250P-14TF | 220/250 | 420/470 | 294/334 | 200 | |
| CV900G-250G/280P-14TF | 250/280 | 470/520 | 334/374 | ||
| CV900G-280G/315P-14TF | 280/315 | 520/600 | 374/420 | ||
| CV900G-315G/350P-14TF | 315/350 | 600/640 | 420/467 | 203 | |
| CV900G-350G/375P-14TF | 350/375 | 640/700 | 467/500 | 235 | |
| CV900G-375G/400P-14TF | 375/400 | 700/750 | 500/534 | 257 | |
| CV900G-400G/450P-14TF | 400/450 | 750/820 | 534/600 | ||
| CV900G-450G/500P-14TF | 450/500 | 820/930 | 600/667 |
