| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Canroon |
| Certification: | CE ISO9001:2008 |
| Model Number: | CV900 series |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 68-1000per piece |
| Packaging Details: | Wooden case, neutral carton |
| Delivery Time: | Most items are with stock for sample order, bulk order in 20-45 days |
| Payment Terms: | T/T , L/C |
| Supply Ability: | 5000sets/month |
| Name: | Variable Frequency Inverter | Rated Input: | 3-phrase, 380V, 50/60Hz |
|---|---|---|---|
| Allowed Range: | 320V~460V | Adapted Motor Power: | 0.75~160kW |
| Control Mode: | V/F Control, Advanced V/F Control, V/F Separated Control, Current Vector Control | Brake: | Dynamic Braking, DC Braking, Flux Restraint |
| Frequency Setting Resolution: | Analog Input, Digital Setting | Overload: | 150% For 1 Min, 180% For 5s |
| Cooling Method: | Air Cooling With Fan Control | Warranty: | 12 Months |
| Color: | White | Installation Method: | Wall-hanging Type, Cabinet Type |
| High Light: | 315kW 3 Phase Frequency Inverters,380V 3 Phase Frequency Inverters,Vector Control Solar Pump Inverter |
||

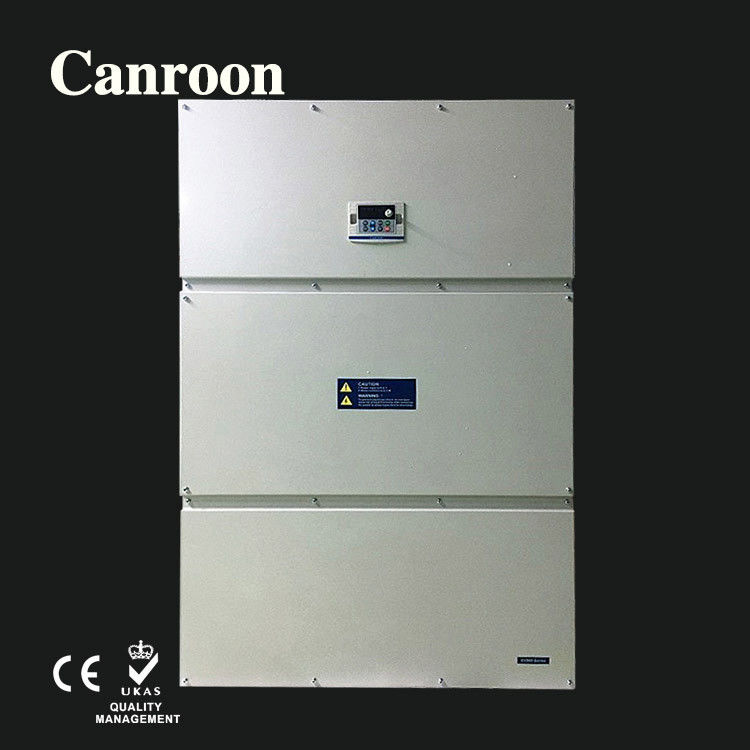

High-performance Flux Vector inverter, CV900 series included advanced technology of electric vector control, and multiple features as follows:
| Input | Rated Voltage, Frequency |
3-phase(4T#sereis)380V;50/60HZ 1-phase(2S#series)220V;50/60HZ |
| Allowed Voltage Range |
3-phase(4T#series)320V~460V 1-phase(2S#series)160V~260V |
|
| Output | Voltage |
4T#series; 0~460V 2S#series; 0~260V |
| Frequency | Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ | |
| Overload Capacity |
G type: 110% for long-term, 150% for 1 min, 180% for 5s P type: 105% for long-term, 120% for 1 min, 150% for 1s |
|
| Control Mode |
V/F control, advanced V/F control, V/F separation control, electric current vector control |
|
