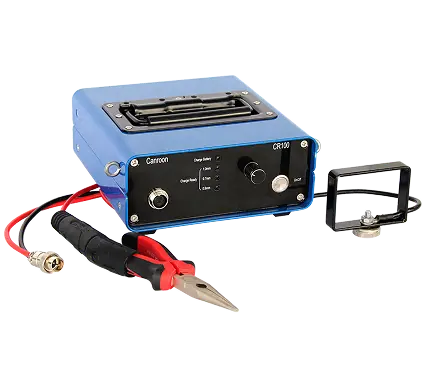

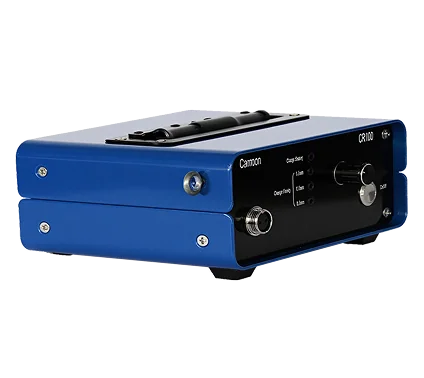

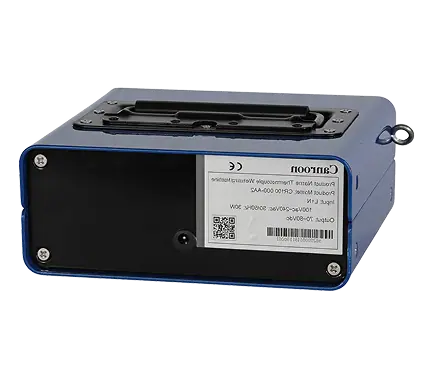

Mini Portable CR100 Thermocouple Spot Welder for Fine Wire Applications
Mini CR100 portable spot welder designed for fine wire thermocouples, delivering accurate and stable welding in small-size applications.
- Mini portable design
- Accurate welding for fine wire
- Stable performance for thermocouple
Mini Portable CR100 Thermocouple Spot Welder for Fine Wire Applications Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR100
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1SET
Packaging Details
depend on our customers
Delivery Time
A week after confirmed payment
Payment Terms
T/T
Supply Ability
100 Pieces per Week
Dimension(L×W×H)
74×185×188mm
Technical Specifications & Performance Parameters
Charge Voltage
100-240VAC, 50/60Hz
Automatic Spot Welding Time
3 Seconds
Recover / Charging Time
10 Seconds
Accumulator Working Voltage
12VDC 50/60Hz
Accumulator Capacity
3.2Ah
Charging State Display
LED
Max. Penetration Depth
<0.2mm
Max. Heating Penetration Depth
<0.3mm
Thermocouple Size
0.5mm / 0.7mm / 1.0mm
Weight
2.7kg
Key Features of Mini Portable CR100 Thermocouple Spot Welder for Fine Wire Applications

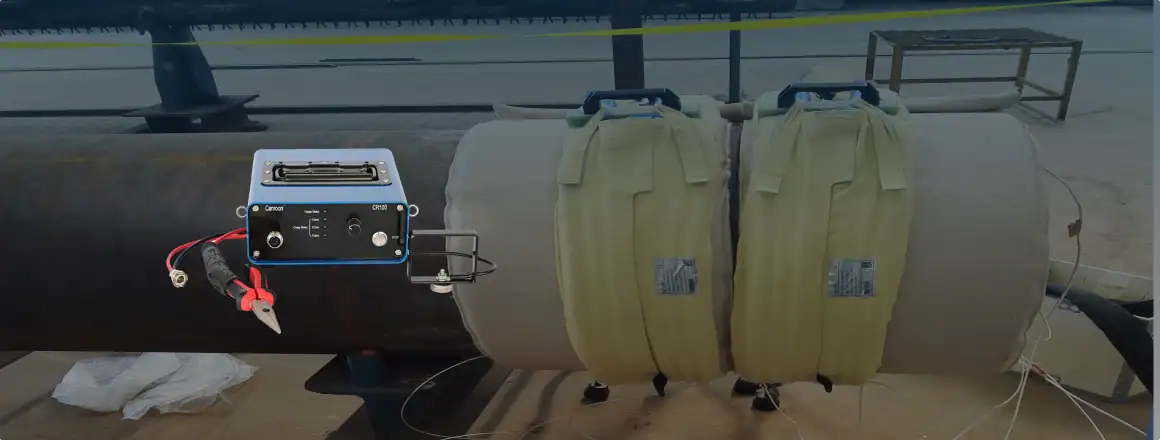

CR100 portable thermocouple welder was designed and manufactured by Canroon, as an important optional accessories of our CR2000 series induction heating system.This portalbe spot welding machine ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.It can also be used for welding of metal workpiece and other metal material.
Portalbe & Handy
- Hight:74mm, Width:185mm, Depth:188mm, Weight:2.7kg.
Fast Spot Welding
- one-hand operation
- welding finished after 3 seconds of contact between thermocouple and workpiece
Firm conjuction
- Firm conjuction between thermocouple and workpieces(vital for accurate temperature measurement)
Automatic Charging
- Just 10 seconds for circuit recovery after one time spot welding
Circuit Protection
- Charging limitation, no need for watching when charging
- Protection for over discharge
Easy Operation Interface
- LED display enables visual run state management
Off-line Working
- Strong electric storage ability enable 2000 times of using after fully charged
