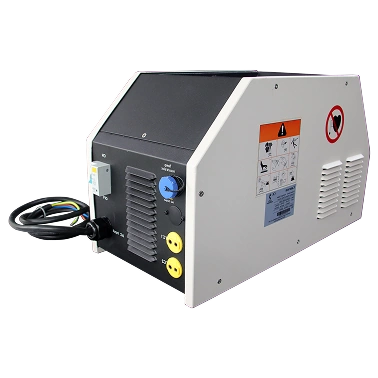

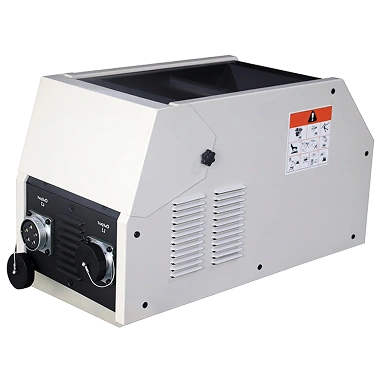

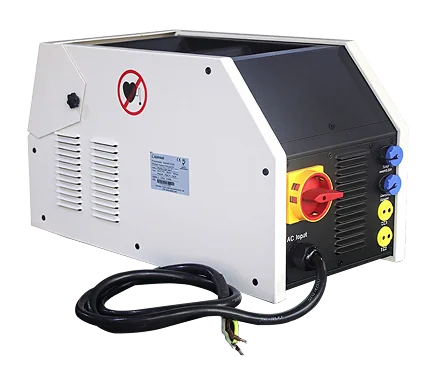

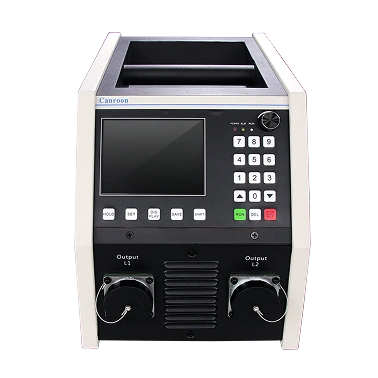

High Frequency Induction Heating Generator for PWHT Applications
High frequency induction heating generator designed for PWHT applications, delivering controlled heating, stable output, and reliable performance for welded components.
- Designed specifically for PWHT processes
- High frequency for precise heat control
- Stable output for critical weld treatment
Competitive advantages
01

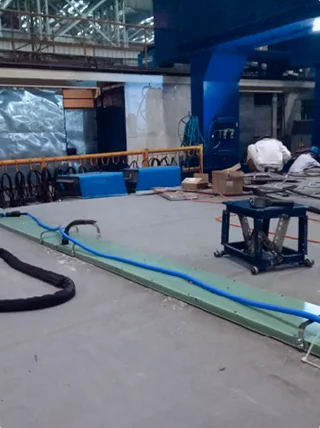

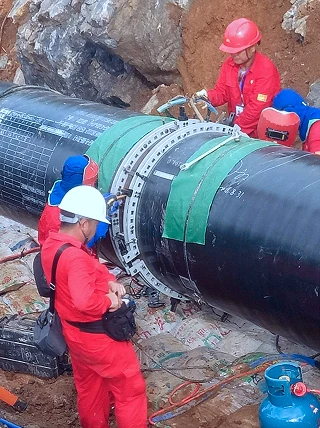

Intelligent
- Accurate control of heating area
- Accurate control of heating process
02

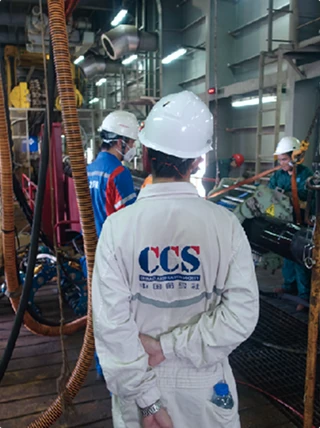

Safe
- No open flame
- No flue gas
- Fault protection
03

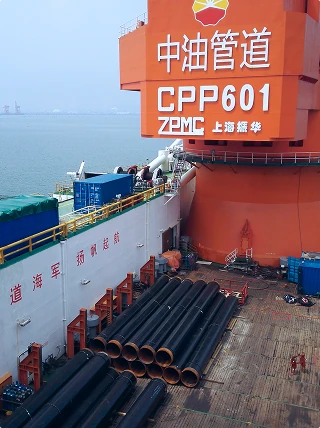

Clean
- No open flame
- No toxic gas emission
04
Rapid
- An overturn technology compared with resistance heating and fuel gas burning. A temperature above 1000℃ can be reached in seconds.
High Frequency Induction Heating Generator for PWHT Applications – Accessories
Robust handles, clamps, and cables ensure reliable, efficient, and accurate metal heating performance.
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder
Application Scenarios for the High Frequency Induction Heating Generator for PWHT Applications
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
