/Post Weld Heat Treatment Equipment
Induction Heating Equipment for Wellhead preheating
Induction heating equipment designed for wellhead preheating, providing controlled and uniform heating to support welding, maintenance, and PWHT operations.
- Designed for wellhead preheating
- Uniform heating for critical joints
- Supports PWHT and welding work
Key Features of Induction Heating Equipment for Wellhead preheating

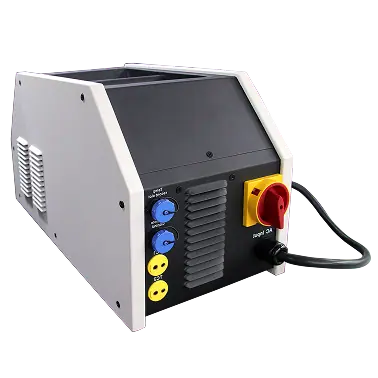

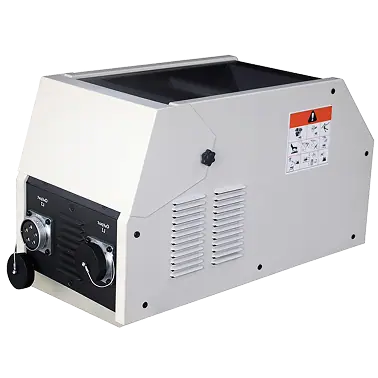

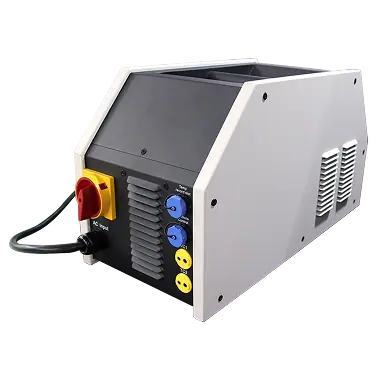

CR2000 air-cooled induction heating system for welding preheat, PWHT, pipe heating, post-weld heat treatment, shrink fit.
1.Advanced system integration
- Acts as multi-functional hub, supporting thermocouples, digital recorder, remote switchgear, and induction cables/coils.
2.Professional applications
- Perfect for welding preheat, PWHT, pipeline heating, shrink fitting, and post-weld heat treatment; compatible with steel and iron.
3.Multiple control mode built-in
- PID closed-loop and power control enable accurate temperature management.

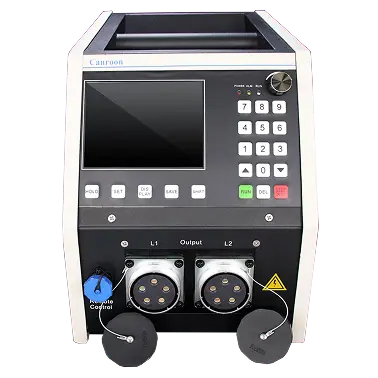

All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Monitoring of run status and fault protection
- 35 fault codes + 11 alarms, automatic shutdown and logging for operator safety.
5.Module design
- Modular design ensures easy maintenance.
6.Air cooling
- Air-cooled system reduces maintenance costs.
Induction Heating Equipment for Wellhead preheating – Accessories
Robust handles, clamps, and cables ensure reliable, efficient, and accurate metal heating performance.
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder
Application Scenarios for the Induction Heating Equipment for Wellhead preheating
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
