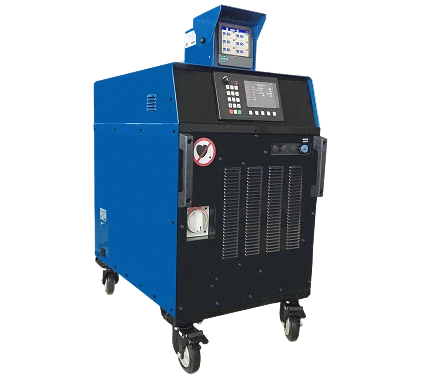

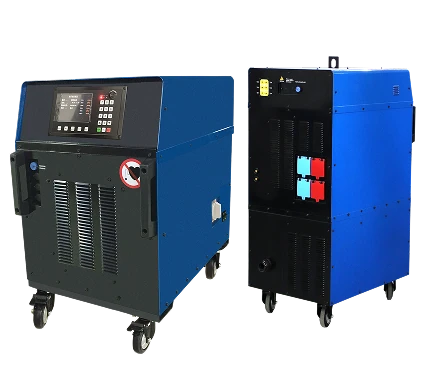

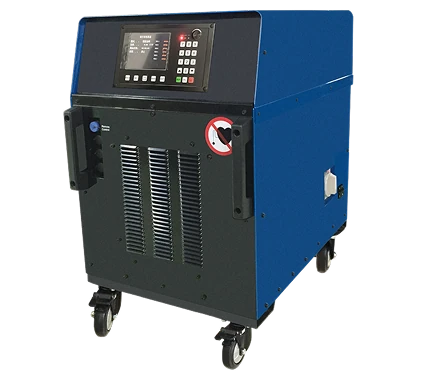

High Frequency Induction Heating Machine for Anti-Corrosion Coating (CE)
CE-certified high frequency induction heating machine developed for anti-corrosion coating processes, ensuring controlled heating and compliance with industry
- CE certified for industrial use
- Controlled heating for coatings
- High frequency heating technology

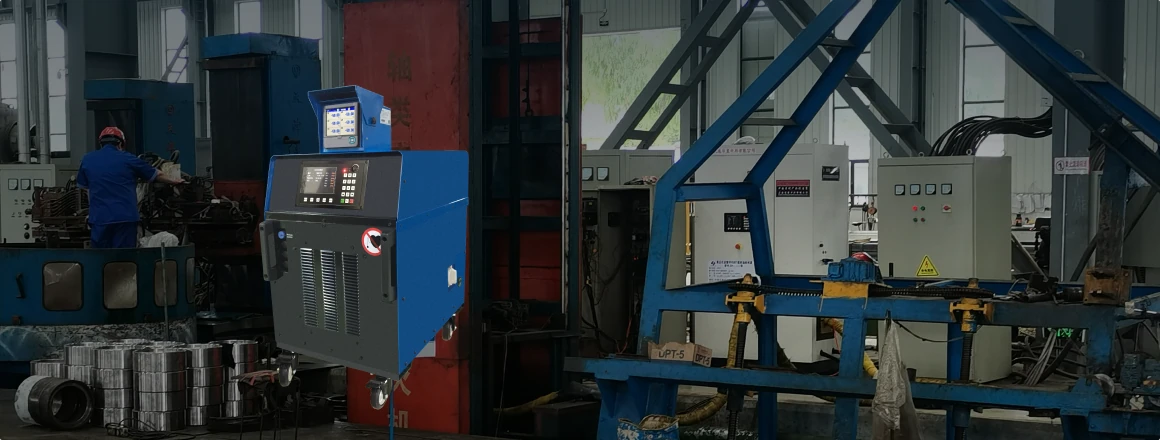

Key Features of High Frequency Induction Heating Machine for Anti-Corrosion Coating (CE)
CR2000 induction heating machine for welding preheat, PWHT, pipeline preheat, hot installation, post-weld heat treatment.
1.Advanced system integration
- Multi-function digital hub, compatible with thermocouples, remote control, data recorder, induction cables, and custom coils.
2.Professional applications
- Welding preheat, PWHT, pipeline heating, hot assembly, shrink fit; works with magnetic materials.
3.Multiple control mode built-in
- PID closed-loop and power control for accurate and stable heating.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Monitoring of run status and fault protection
- 35 fault codes + 11 alarms, automatic stop, fault logging ensures safety.
5.Module design
- Modular machine design enables quick maintenance.
6.Air cooling
- Air-cooled, eliminating water system hassles.
High Frequency Induction Heating Machine for Anti-Corrosion Coating (CE) series-Custom Inductor
CR2000 series custom inductors provide tailored fit, efficient heating, and stable performance for industrial tasks.
Blanket Inductor
C-type Inductor
Split-core / Clamp Inductor
Hydraulic type
Plate/Flat Inductor
Ring Inductor
Application Scenarios for the High Frequency Induction Heating Machine for Anti-Corrosion Coating (CE)
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
Technical Support
Canroon provides professional technical support throughout the product lifecycle, offering installation guidance, operation training, troubleshooting assistance, and responsive service to ensure stable performance and efficient operation of induction heating equipment.
Global Warranty
18-month standard warranty on all main equipment units.
24/7 Technical Support
Round-the-clock expert assistance for troubleshooting.
On-site Commissioning
Professional setup and testing at your facility.
Operational Training
Comprehensive training for your operators and engineers.
Spare Parts Supply
Fast delivery of genuine replacement parts worldwide.
Maintenance Plans
Scheduled maintenance to ensure equipment longevity.
FAQ
This FAQ section answers common questions about the CR2000 induction heating machine, covering applications, operation, configuration, and technical support to help users better understand product performance and usage.
01What applications is the CR2000 induction heating machine suitable for?
CR2000 is widely used for pre-weld heating, post-weld heat treatment (PWHT), pipe joint heating, shrink fitting, anti-corrosion coating preparation, and other industrial metal heating applications in workshops and field environments.
02What power supply options are available for the CR2000 series?
CR2000 supports multiple power configurations, including single-phase and three-phase options, depending on the model. Voltage and frequency can be customized to match local power standards and project requirements.
03Can the CR2000 be used for on-site or field operations?
Yes. The CR2000 features a portable design and flexible inductors, making it suitable for on-site pipeline construction, maintenance, and repair work in oil, gas, and industrial environments.
04Does the CR2000 support temperature control and monitoring?
CR2000 supports precise temperature control and can be equipped with thermocouples and temperature recorders to ensure stable heating, accurate process control, and compliance with industrial standards.
05 Are custom inductors available for different workpieces?
Yes. Canroon provides custom inductors tailored to different pipe sizes, materials, and heating applications, ensuring efficient, uniform heating and optimal performance.
06What technical support does Canroon provide for CR2000 users?
Canroon Offers Ful Technical Support,Incuding Installation Cuidance, Operation Training, Troubleshooting, And After-Sales Service, Ensuring Reliable
Long-Term Operation Of CR2000 Equipment.
