/Medium Frequency Induction Heating
Portable Medium Frequency Induction Heating Machine
Portable medium frequency induction heating machine designed for flexible on-site heating tasks, delivering stable performance and controlled heating for industrial applications.
- Portable design for on-site heating
- Medium frequency for stable output
- Suitable for industrial operations
Key Features of Portable Medium Frequency Induction Heating Machine
Efficient medium frequency induction heating machine for brazing, hardening and forging, delivering stable heating performance, intelligent control and reliable industrial operation.
1.Advanced system integration
- Intelligent power source, coaxial transformer, customized coil and chiller integrated for stable and efficient induction heating.
2.Wide metal heating applications
- Suitable for brazing, hardening, annealing, forging and shrink fitting across various industrial metal heating processes.
3.Precise heating control
- Built-in PID temperature control and power control ensure accurate heating and consistent process performance.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Flexible external control
- Supports analog signal control (V, 4–20mA) and RS-485 communication for easy integration with automated equipment.
5.Real-time monitoring & protection
- Displays run status and fault codes with alarm indication and automatic shutdown for safe and reliable operation.
6.Modular structure design
- Modular machine design simplifies maintenance, improves reliability and reduces downtime in industrial environments.
Introduction and Description of Portable Medium Frequency Induction Heating Machine

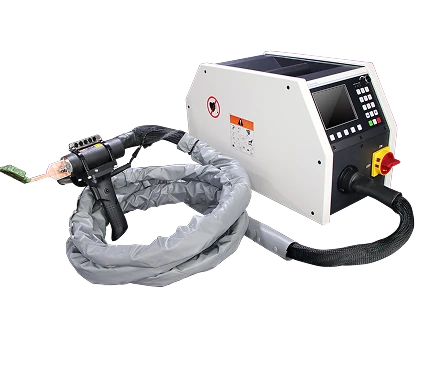

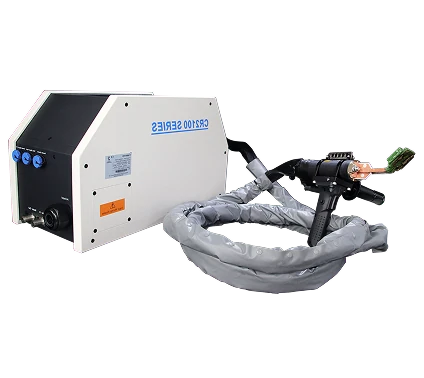

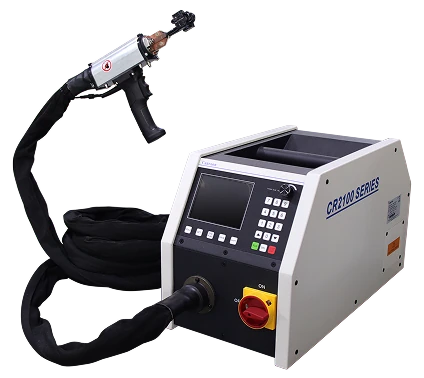

Hand-held transformer (HHT) are designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.
Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different application.
CR2100 series – Custom Inductor
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness.
It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness. It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).

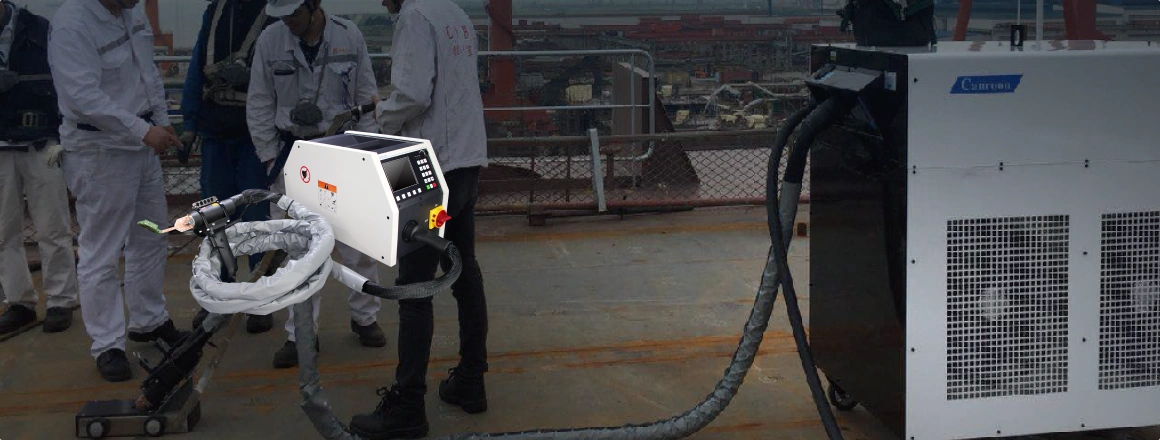

Application Scenarios for the Portable Medium Frequency Induction Heating Machine
The CR2100 induction heating machine is widely used across industrial metal processing, providing fast, precise, and efficient heating for annealing, brazing, hardening, and shrink fitting. Its flexible design ensures stable performance, clean operation, and adaptability for both workshop and on-site applications.
Technical Parameters
Product Pictures
Product Model
Rated input power
Rated input current
Output frequency
Cooling water pressure / flow rate
Rated Input Valtage / Frequency
HHT / Coaxial Transformer Weight
Dimension(L×W×H)
Portable type
CR2100-010B-14TW
10KVA
12-18A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-020B-14TW
20KVA
24-36A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-030B-14TW
30KVA
36-54A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-040B-14TW
40KVA
48-72A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-050B-14TW
50KVA
60-90A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3 kg
621.4×282.4×349.4mm
CR2100-060B-14TW
60KVA
72-108A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-010H-14TW
10KVA
12-18A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-020H-14TW
20KVA
24-36A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-030H-14TW
30KVA
36-54A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-040H-14TW
40KVA
48-72A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-050H-14TW
50KVA
60-90A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-060H-14TW
60KVA
72-108A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
