Portable Stress Relieving Machine for Post Weld Heat Treatment
Portable stress relieving machine designed for post weld heat treatment, reducing residual stress and improving weld integrity on-site.
- Reduces residual stress in welded parts
- Portable design for on-site use
- Supports PWHT operations
Portable Stress Relieving Machine for Post Weld Heat Treatment Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR2000
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Woodon case, carton or customized
Delivery Time
within 5 days if available in stock
Payment Terms
L/C, T/T, Western Union,Paypal
Supply Ability
500 pieces a month
Dimension(L×W×H)
262.4 ×304 ×545mm
548.5 ×747 ×847.5mm
597 ×830 ×801mm
Technical Specifications & Performance Parameters
Voltage
1-phase 220-240V / 3-phase400V(±20%)
Rated Input Current
12~288A
Input Power
1~500KVA
Input Frequency
50~60Hz
Operating Temperature
-20℃ ~ +50℃
Duty Cycle
100%
Weight
22~234KG
Heating Mode
Induction Heating
Temperature Control
Digital Display
Induction Coil Material
Copper / Stainless Steel / Aluminum
Induction Coil Size
Customizable
Cooling System
Water Pressure: 4~6 Bar
Fault Protection
Advanced System Integration
Trigger Function
Pull to start heating, loose to stop heating
Button Function
Lock the trigger (pull the trigger and press the button), Heating will be continuous
Competitive advantages

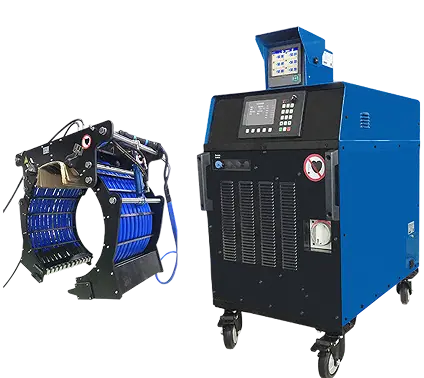

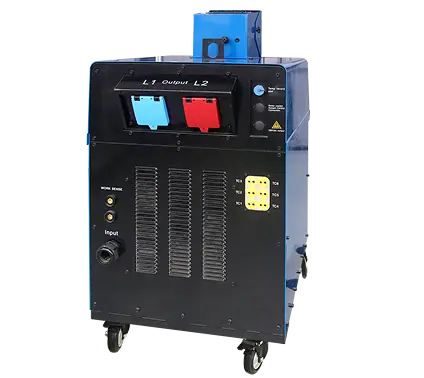

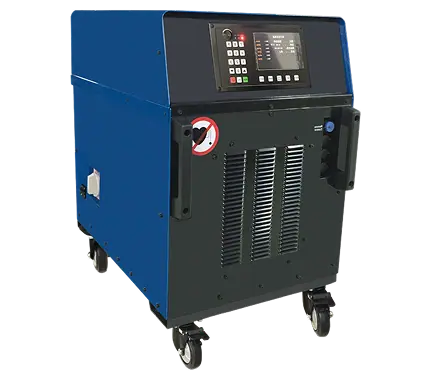

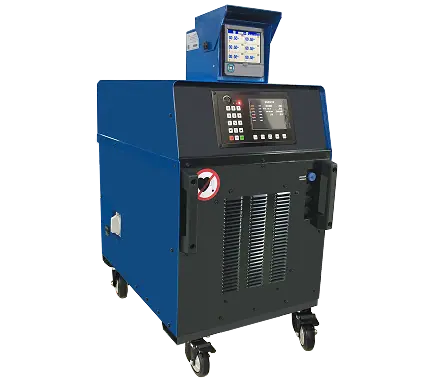

CR2000 features a portable design with advanced IGBT induction technology, enabling precise on-site heating, fast response, and stable output for metal processing across diverse industrial environments.
01
Intelligent
- Accurate control of heating area
- Accurate control of heating process
02
Safe
- No open flame
- No flue gas
- Fault protection
03
Clean
- No open flame
- No toxic gas emission
04
Rapid
- An overturn technology compared with resistance heating and fuel gas burning. A temperature above 1000℃ can be reached in seconds.
Application Scenarios for the Portable Stress Relieving Machine for Post Weld Heat Treatment

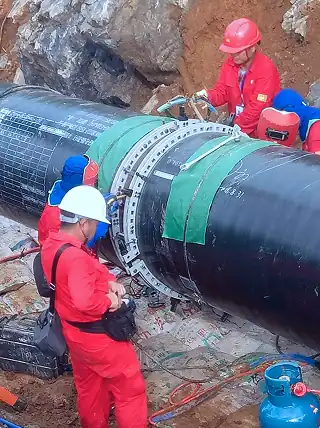

multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
