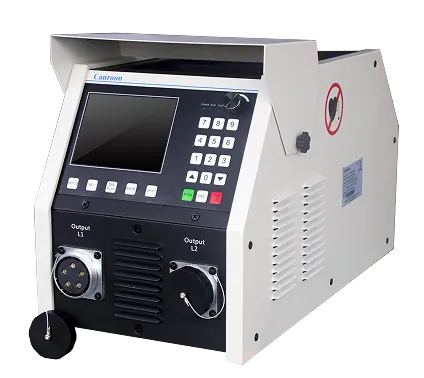

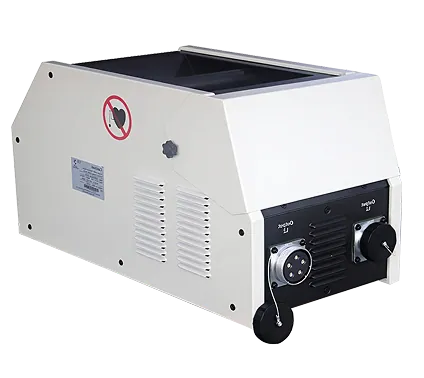

High-Frequency IGBT Induction Stress Relieving Equipment for Brass, Copper, Steel
High-frequency IGBT induction stress relieving equipment for brass, copper, and steel, offering precise heating and controlled stress reduction.
- IGBT technology for stable output
- Precise heating for various metals
- Reduces residual stress efficiently
Key Features of High-Frequency IGBT Induction Stress Relieving Equipment for Brass, Copper, Steel
CR2000 induction heater ensures efficient welding preheat, PWHT, pipe heating, post-weld treatment, and shrink fit operations.
1.Advanced system integration
- Intelligent heating system connects with sensors, recorders, remote control, and custom induction coils.
2.Professional applications
- Ideal for pipeline preheating, PWHT, welding preheat, post-weld heat treatment, and hot installation; suitable for magnetic metals.
3.Multiple control mode built-in
- PID temperature and power control modes guarantee stable operation.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Monitoring of run status and fault protection
- Fault codes, alarms, and automatic shutdown; logs ensure safety.
5.Module design
- Modular machine design reduces maintenance complexity.
6.Air cooling
- Fully air-cooled system for hassle-free operation.
Application Scenarios for the High-Frequency IGBT Induction Stress Relieving Equipment for Brass, Copper, Steel
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
