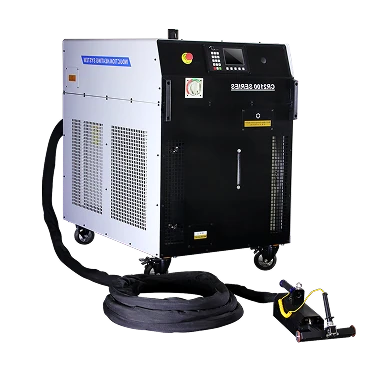

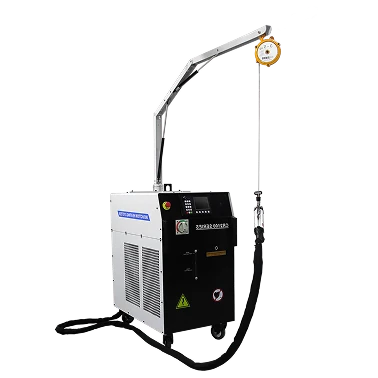

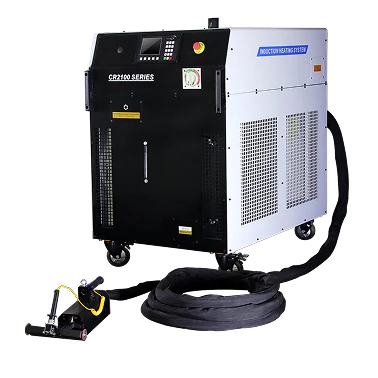

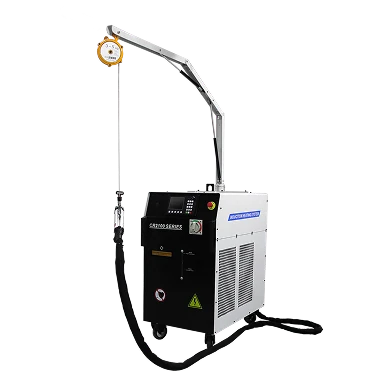

CE Induction Paint Removal Machine for Coating Removal
- Precise heat control for selective coating removal
- No abrasive damage to metal surfaces
- CE certified for industrial safety standards
CE Induction Paint Removal Machine for Coating Removal Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR2100
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1 pcs
Price
FOB
Packaging Details
wooden case
Delivery Time
within 7 days if available in stock
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 sets per month
Dimension(L×W×H)
621.4×282.4×349.4mm
Technical Specifications & Performance Parameters
Voltage
3-phase/400V(±20%)
Rated Input Current
12-108A
Input Power
10-60KVA
Input Frequency
10~200KHZ
Operating Temperature
-20℃ ~ +50℃
Duty Cycle
100%
Weight
1.5-3KG
Heating Mode
Induction Heating
Temperature Control
Digital Display
Induction Coil Material
Copper / Stainless Steel / Aluminum
Induction Coil Size
Customizable
Cooling System
Water Pressure: 4~6 Bar
Fault Protection
Advanced System Integration
Trigger Function
Pull to start heating, loose to stop heating
Button Function
Lock the trigger (pull the trigger and press the button), Heating will be continuous
Key Features of CE Induction Paint Removal Machine for Coating Removal
Integrated industrial induction heating system with digital control and automatic impedance matching for efficient metal heating.
1.Advanced system integration
- Digital industrial induction heating system combining power supply, transformer, induction coil and cooling unit for efficient industrial heating.
2.Wide applications
- Suitable for various industrial heating processes including annealing, brazing, hardening and shrink fitting.
- Can heat a wide range of metal materials.
3.Multiple control mode built-in
- PID temperature control.
- Power output control.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Multiple external control methods support
- 0-10V / 4-20mA analog control.
- RS-485 communication interface.
5.Monitoring of run status and fault protection.
- Operating status display.
- Alarm and fault protection system.
6.Module design
- Modular structure ensures easy maintenance.
CE Induction Paint Removal Machine for Coating Removal – System Wiring Diagram
CR2100’s system wiring provides organized, easy-to-install connections, ensuring smooth operation, stable performance, and reduced setup time in field or workshop use.
Introduction and Description of Handheld High-Frequency Induction Heating Machine for Brazing
Hand-held transformer (HHT) are designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.
Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different application.
CR2100 series – Custom Inductor
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness.
It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness. It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).

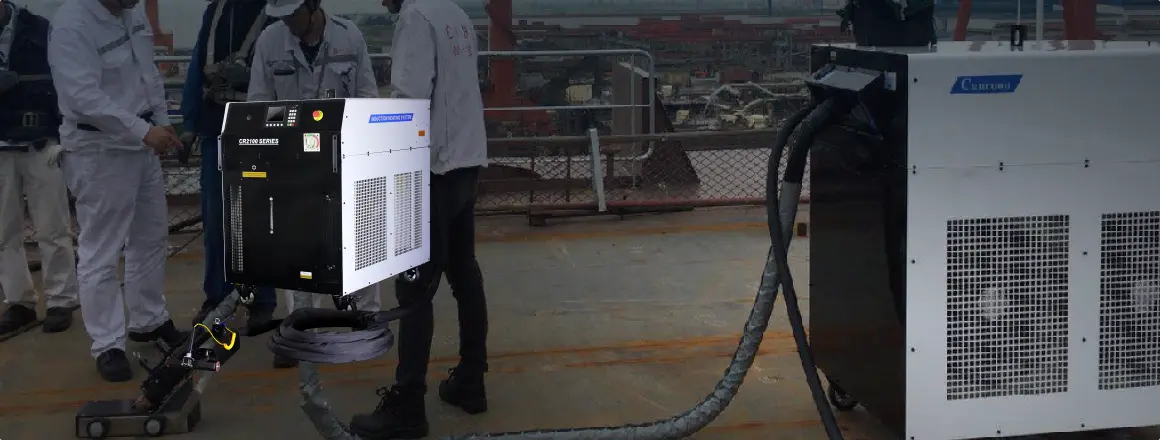

Application Scenarios for the CE Induction Paint Removal Machine for Coating Removal
The CR2100 induction heating machine is widely used across industrial metal processing, providing fast, precise, and efficient heating for annealing, brazing, hardening, and shrink fitting. Its flexible design ensures stable performance, clean operation, and adaptability for both workshop and on-site applications.
Technical Parameters
Product Pictures
Product Model
Rated input power
Rated input current
Output frequency
Cooling water pressure / flow rate
Rated Input Valtage / Frequency
HHT / Coaxial Transformer Weight
Dimension(L×W×H)

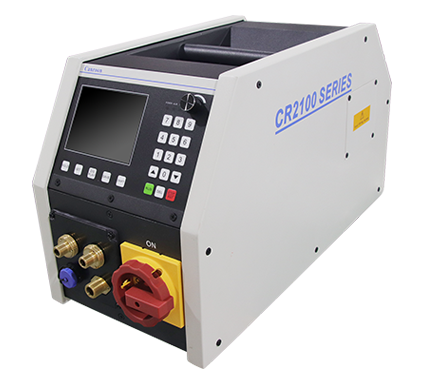

Portable type
CR2100-010B-14TW
10KVA
12-18A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-020B-14TW
20KVA
24-36A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-030B-14TW
30KVA
36-54A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-040B-14TW
40KVA
48-72A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-050B-14TW
50KVA
60-90A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3 kg
621.4×282.4×349.4mm
CR2100-060B-14TW
60KVA
72-108A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-010H-14TW
10KVA
12-18A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-020H-14TW
20KVA
24-36A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-030H-14TW
30KVA
36-54A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-040H-14TW
40KVA
48-72A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-050H-14TW
50KVA
60-90A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-060H-14TW
60KVA
72-108A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CE Induction Paint Removal Machine for Coating Removal Technical Support
Canroon provides professional technical support throughout the product lifecycle, offering installation guidance, operation training, troubleshooting assistance, and responsive service to ensure stable performance and efficient operation of induction heating equipment.
Global Warranty
18-month standard warranty on all main equipment units.
24/7 Technical Support
Round-the-clock expert assistance for troubleshooting.
On-site Commissioning
Professional setup and testing at your facility.
Operational Training
Comprehensive training for your operators and engineers.
Spare Parts Supply
Fast delivery of genuine replacement parts worldwide.
Maintenance Plans
Scheduled maintenance to ensure equipment longevity.
FAQ
CR2100 FAQ provides answers to common questions on operation, safety, heating performance, and maintenance, helping users optimize efficiency and ensure safe, reliable induction heating.
01 What materials can the CR2100 induction heating machine process?
CR2100 is compatible with a wide range of metals including steel, copper, brass, aluminum, and stainless steel, making it suitable for annealing, brazing, hardening, coating removal, shrink fitting, and straightening.
02How fast can the CR2100 reach its maximum temperature?
The CR2100 can reach temperatures up to 1000°C within seconds, providing rapid and precise heating for efficient industrial processes.
03 Are there portable and split-type versions available?
Yes, CR2100 offers both portable and split-type models, allowing flexible use on-site or in workshops with easy installation and reliable performance.
04What safety features does the CR2100 include?
CR2100 integrates over-temperature protection, stable power control, secure wiring, and robust design to ensure safe and reliable operation during all heating tasks.
05 How should I maintain the CR2100 for long-term performance?
Regularly inspect wiring and connectors, keep the unit clean, store inductors properly, and follow recommended operational guidelines to ensure consistent performance and longevity.
