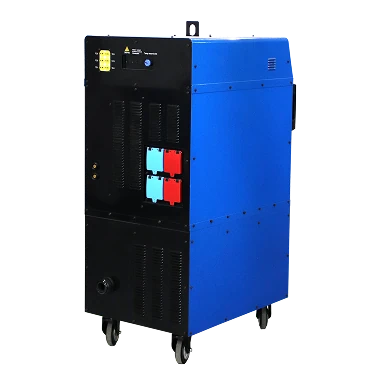

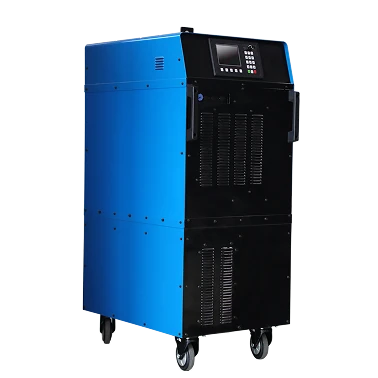

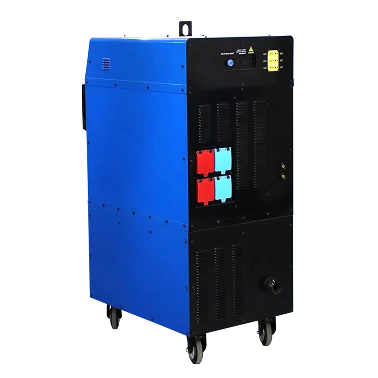

160kW Induction Heater for Pipe Preheating and Coating
160kW induction heater engineered for pipeline pipe preheating, supporting field joint anti-corrosion coating with uniform heating and reliable on-site performance.
- High-power 160kW output for large pipe diameters
- Uniform heating for coating adhesion
- Suitable for on-site field joint applications
160kW Induction Heater for Pipe Preheating and Coating Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR2000
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Woodon case, carton or customized
Delivery Time
within 5 days if available in stock
Payment Terms
L/C, T/T, Western Union,Paypal
Supply Ability
500 pieces a month
Dimension(L×W×H)
262.4 ×304 ×545mm
548.5 ×747 ×847.5mm
597 ×830 ×801mm
Technical Specifications & Performance Parameters
Voltage
1-phase 220-240V / 3-phase400V(±20%)
Rated Input Current
12~288A
Input Power
1~500KVA
Input Frequency
50~60Hz
Operating Temperature
-20℃ ~ +50℃
Duty Cycle
100%
Weight
22~234KG
Heating Mode
Induction Heating
Temperature Control
Digital Display
Induction Coil Material
Copper / Stainless Steel / Aluminum
Induction Coil Size
Customizable
Cooling System
Water Pressure: 4~6 Bar
Fault Protection
Advanced System Integration
Trigger Function
Pull to start heating, loose to stop heating
Button Function
Lock the trigger (pull the trigger and press the button), Heating will be continuous
Key Features of 160kW Induction Heater for Pipe Preheating and Coating
CR2000 induction heater ensures efficient welding preheat, PWHT, pipe heating, post-weld treatment, and shrink fit operations.
1.Advanced system integration
- Intelligent heating system connects with sensors, recorders, remote control, and custom induction coils.
2.Professional applications
- Ideal for pipeline preheating, PWHT, welding preheat, post-weld heat treatment, and hot installation; suitable for magnetic metals.
3.Multiple control mode built-in
- PID temperature and power control modes guarantee stable operation.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Monitoring of run status and fault protection
- Fault codes, alarms, and automatic shutdown; logs ensure safety.
5.Module design
- Modular machine design reduces maintenance complexity.
6.Air cooling
- Fully air-cooled system for hassle-free operation.
160kW Induction Heater for Pipe Preheating and Coating-Accessories
Robust handles, clamps, and cables ensure reliable, efficient, and accurate metal heating performance.
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder

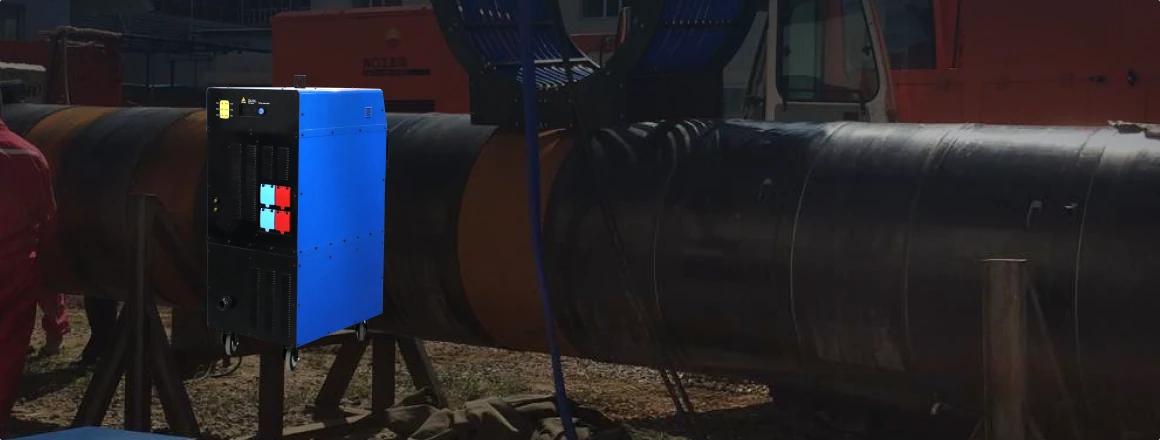

Application Scenarios for the 160kW Induction Heater for Pipe Preheating and Coating
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
