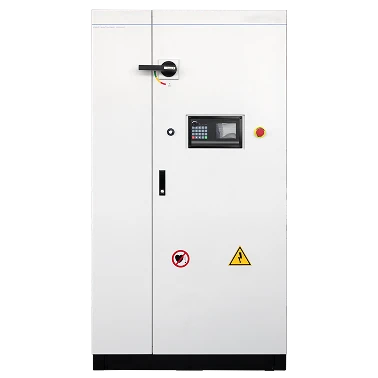

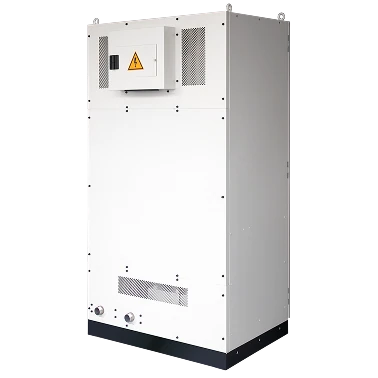

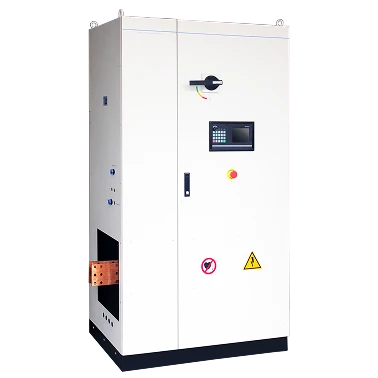

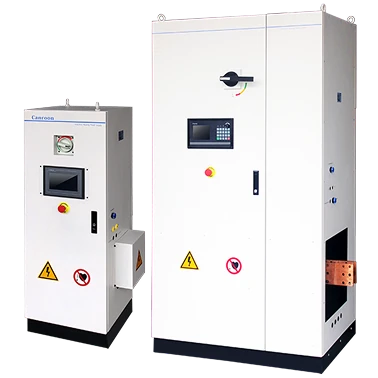

IGBT Induction Heat Treatment Machine with Intelligent Control
- IGBT technology for stable and efficient output
- Intelligent control for precise heat treatment
- Suitable for various industrial applications
IGBT Induction Heat Treatment Machine with Intelligent Control Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Model Numbe
CR1000
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Woodon case, carton or customized
Delivery Time
5-7 days
Payment Terms
L/C, T/T, Western Union,Paypal
Supply Ability
5000 pieces a month
Dimension(L×W×H)
542×525.7×1250mm
Technical Specifications & Performance Parameters
Voltage
3 Phase 400V (±20%) 50/60Hz
Rated Input Current
40-721A
Input Power
40-400KW
Input Frequency
0.5-20KHZ
Storage Temperature
20°C~+60°C
Operating Temperature
-10°C~+50°C
Relative Humidity
<90%RH, No Condensation
Electricity-heat transformation rate
> 95%
Effective power
> 85%
Start time
<0.2S
Protection detection
<10uS
Overload protection
1 Minute For 120%: Instant Protection For 150%
Features
Friendly HML, Multiple Heating Mode
Competitive Advantages
CR1000 is ideal for industrial metal heating, including smelting, casting, forging, and surface treatment processes, providing precise control, high efficiency, and safe operation in demanding environments.

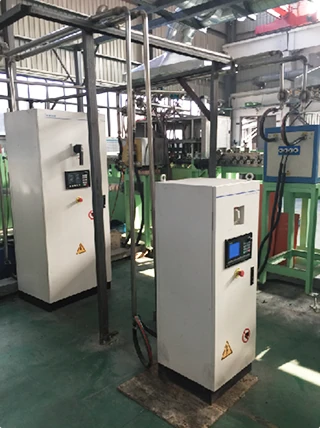

01
Intelligent
- Accurate control of heating area
- Accurate control of heating process

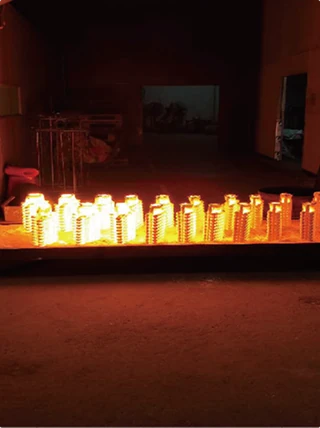

02
Safe
- No open flame
- No flue gas
- Fault protection

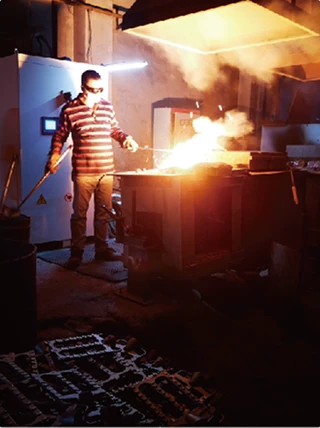

03
Clean
- No open flame
- No toxic gas emission

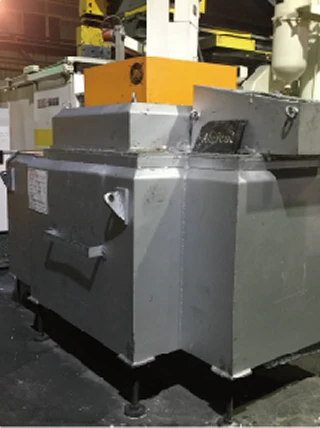

04
Rapid
- An overturn technology compared with resistance heating and fuel gas burning, saves much time for your project, and can reach max. 788℃ for iron and magnetic conductive steel.

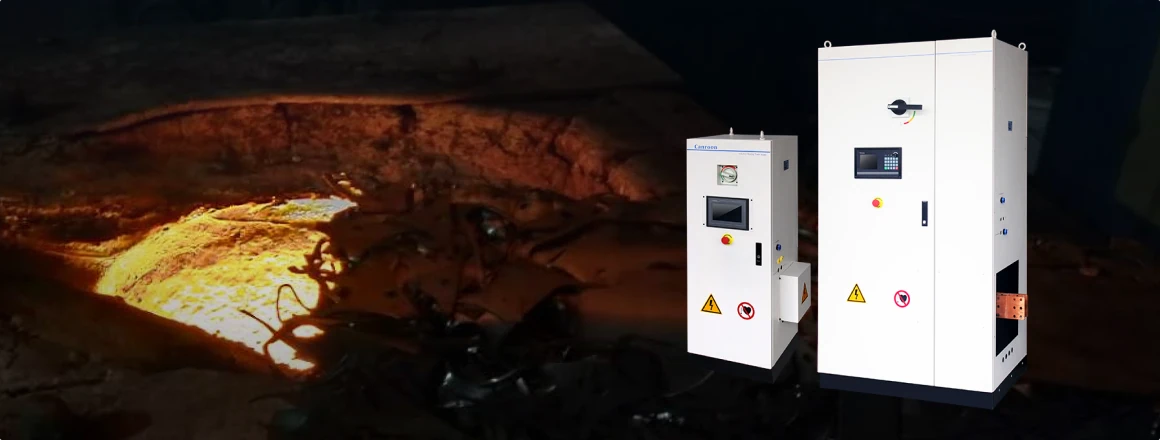

Key Features of IGBT Induction Heat Treatment Machine with Intelligent Control
CR1000 is ideal for industrial metal heating, including smelting, casting, forging, and surface treatment processes, providing precise control, high efficiency, and safe operation in demanding environments.
- Advanced phase-shift PWM digital control, IGBT inverter series resonance technology
- Wide output frequency (1~20kHz), adaptable to various application fields
- Built-in PID temperature module, capable of precise heating control
- Optimized human-computer interaction interface for more efficient operation and work
- Various heating modes such as curve heating, multi-stage heating, and maximum power heating can be selected arbitrarily
- Comprehensive protection design, offering more than 20 operational control and protection including overcurrent, overvoltage, low voltage, phase loss and short circuit, ensure that the equipment won’t be damaged in abnormal conditions like inductor short circuit, workpiece short circuit, power supply instability
- The power is steplessly adjustable from 1% to 100%. Through stepless power adjustment, any power output within the rated power range can be realized to ensure the needs of different power in the application process.
- Strong environmental adaptability, large power margin design and advanced coating technique ensure long term working of this equipment even in severe environment like high temperature, oil dirt and dust
Application environment for IGBT Induction Heat Treatment Machine with Intelligent Control
OPERATING TEMPERATUIRE
-20℃～+40℃
RELATIVE HUMIDITY
<90%RH, no condensation
ALTITUDE
<1000m (reduce frequency when above 1000m; 15% power derating for every 1000m increase in altitude)
STORAGE TEMPERATURE
-20°C~+60°C
IGBT Induction Heat Treatment Machine with Intelligent Control – Accessories
CR1000 comes with essential accessories to support safe, stable, and efficient operation in all work environments.
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder
Application Scenarios for the IGBT Induction Heat Treatment Machine with Intelligent Control
CR1000 is ideal for industrial metal heating, including smelting, casting, forging, and surface treatment processes, providing precise control, high efficiency, and safe operation in demanding environments.
Technical Parameters
Product Model
Rated input power
Rated input current
Output frequency
Cooling water pressure / flow rate
Rated Input Valtage/ Frequency
HHT / Coaxial Transformer Weight
Dimension(L×W×H)
CR1000-040A-14TW7
40KW
48-72A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-050A-14TW7
50KW
60-90A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-060A-14TW7
60KW
72-108A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-080A-14TW7
80KW
96-144A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-100A-14TW7
100KW
120-180A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-120A-14TW7
120KW
144-216A
0.5-20KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
100kg
542×525.7×1250mm
CR1000-160A-24TW2
160KW
192-288A
0.5-10KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
368kg
542×525.7×1250mm
CR1000-200A-24TW2
200KW
240-360A
0.5-10KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
368kg
542×525.7×1250mm
CR1000-250A-24TW2
250KW
300-451A
0.5-10KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
368kg
542×525.7×1250mm
CR1000-300A-24TW2
300KW
360-541A
0.5-10KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
368kg
542×525.7×1250mm
CR1000-400A-24TW2
400KW
481-721A
0.5-10KHZ
≥0.4MPa, ≤0.6MPa >16L/min, PH 7.0-9.0
3 Phase 400V (±20%) 50/60Hz
368kg
542×525.7×1250mm
IGBT Induction Heat Treatment Machine with Intelligent Control series – Accessories Video
Watch CR1000 in action, demonstrating intelligent digital control, multiple heating modes, and reliable operation for metal smelting, casting, and forging applications.
About Canroon
Canroon is a professional manufacturer of induction heating equipment, integrating R&D, production, and global supply. With modern factories, extensive exhibition participation, and internationally recognized certifications, Canroon delivers reliable, efficient, and application-focused heating solutions for industrial customers worldwide.
Factory
Exhibitions
Certificates
IGBT Induction Heat Treatment Machine with Intelligent Control Technical Support
Canroon provides professional technical support throughout the product lifecycle, offering installation guidance, operation training, troubleshooting assistance, and responsive service to ensure stable performance and efficient operation of induction heating equipment.
Global Warranty
18-month standard warranty on all main equipment units.
24/7 Technical Support
Round-the-clock expert assistance for troubleshooting.
On-site Commissioning
Professional setup and testing at your facility.
Operational Training
Comprehensive training for your operators and engineers.
Spare Parts Supply
Fast delivery of genuine replacement parts worldwide.
Maintenance Plans
Scheduled maintenance to ensure equipment longevity.
FAQ
CR1000 FAQ provides answers on operation, safety, and performance, helping users optimize efficiency and ensure reliable heating for metal processing industries.
01What industries is CR1000 suitable for?
CR1000 Is Designed For Metal Smelting, Casting, Forging, And Other Industrial Heating Applications, Providing Precise And Efficient Performance.
02CR1000 Features Stepless 1-100% Power Adjustment, PiD Temperature Control, And Mutiple Heating Modes Including Curve, Mult-Stage, And Maximum PowerHeating.
CRt000 Features Stepless 1-100% Power Adjustment, PID Temperature Contol, And Mutiple Heating Modes Including Curve, Mult -Stage, And Maximum Power
Heating
03What protections are included?
Overcurrent Overvoltage, Low Voltage, Phase Loss, Short Circuit, And Inductor or Workpiece Short Circuit Protections Ensure Safe Operation.
04Can CR1000 operate in harsh environments?
Yes, CR1000 Has Strong Environmental Adaptability With Large Power Margin And Advanced Coating Techniques, Suitable For High Temperature, Dust, And Oiy
Conditions.
05 Is CR1000 user-friendly?
Yes, Optimized HMI Interface Allows Intuitive Operation And Efficient Monitoring Of Heating Processes.
