IGBT Induction Heating Generator for Pipe Anti-Corrosion Coating with Split Core Inductor
IGBT induction heating generator for pipe field joint anti-corrosion coating, with split core inductor and manual clamp for precise heating.
- IGBT-based stable output
- Split core inductor for easy clamping
- Ideal for field anti-corrosion coating
Competitive Advantages
01
Intelligent
- Accurate control of heating area
- Accurate control of heating process
02
Safe
- No open flame
- No flue gas
- Fault protection
03
Clean
- No open flame
- No toxic gas emission
04
Rapid
- An overturn technology compared with resistance heating and fuel gas burning. A temperature above 1000℃ can be reached in seconds.

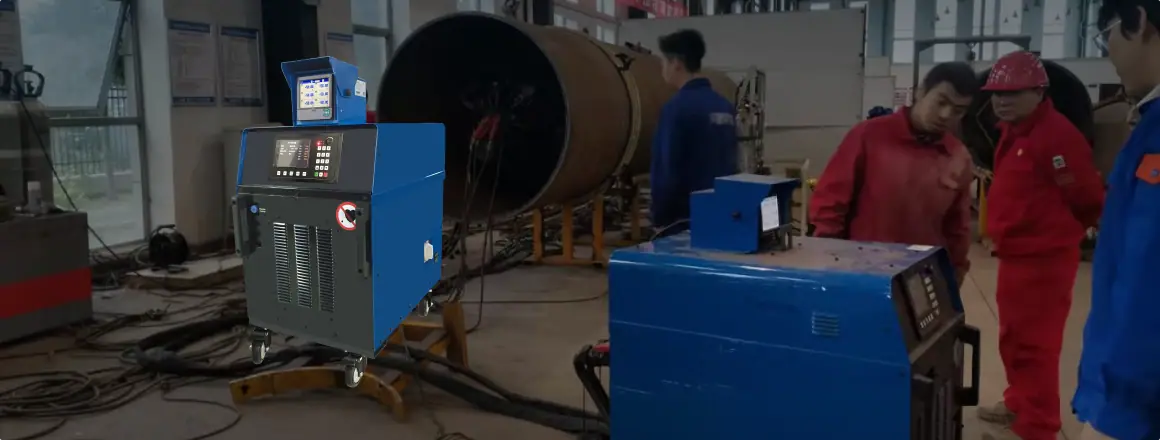

Key Features of IGBT Induction Heating Generator for Pipe Anti-Corrosion Coating with Split Core Inductor
CR2000 air-cooled induction heater supports PWHT, welding preheat, pipe heating, post-weld heat treatment, and shrink fit.
1.Advanced system integration
- Digital induction heating unit with multiple accessories: thermocouple, recorder, remote switchgear, induction cables, custom coils.
2.Professional applications
- For welding preheat, PWHT, pipeline preheating, shrink fit, hot disassembly; suitable for steel and iron.
3.Multiple control mode built-in
- PID temperature control and power regulation for precise operation.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Monitoring of run status and fault protection
- Status display, fault codes, alarms, and automatic shutdown for safety.
5.Module design
- Modular design simplifies maintenance.
6.Air cooling
- Fully air-cooled, avoids water cooling maintenance.
5KW High Frequency Induction Preheating Machine 230V– System Wiring Diagram
The CR2000 series system wiring diagram provides a clear, detailed layout of electrical connections, ensuring accurate installation, easy maintenance, and safe, reliable operation for industrial applications.
IGBT Induction Heating Generator for Pipe Anti-Corrosion Coating with Split Core Inductor– Accessories
Robust handles, clamps, and cables ensure reliable, efficient, and accurate metal heating performance.
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder
Application Scenarios for the IGBT Induction Heating Generator for Pipe Anti-Corrosion Coating with Split Core Inductor
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
