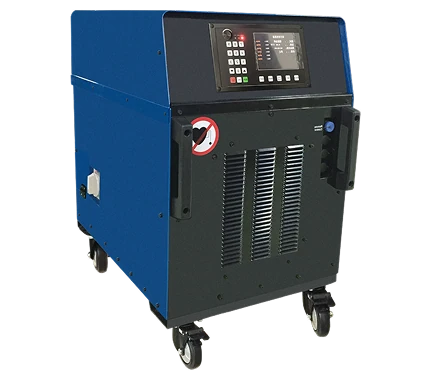

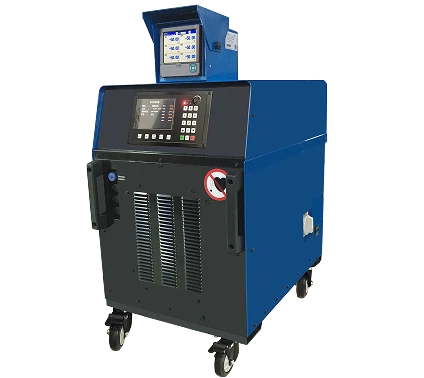

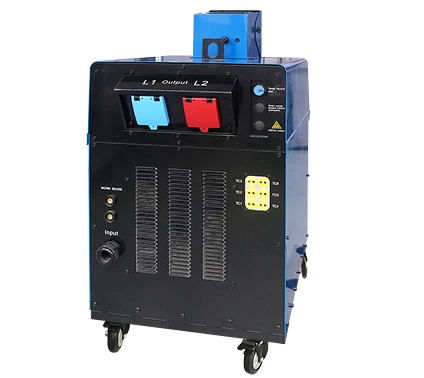

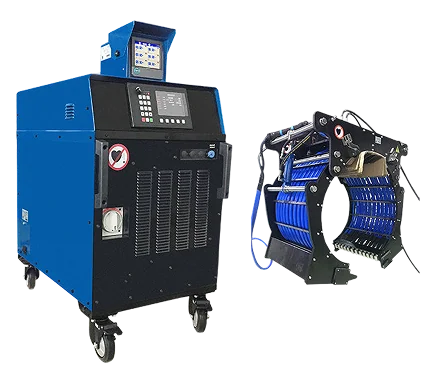

PLC IGBT Induction Heating Machine for Stainless Steel Pipe Heat Treatment
PLC-controlled IGBT induction heating machine for stainless steel pipe heat treatment, offering precise temperature control and uniform heating for industrial applications.
- PLC control for precise heating
- IGBT technology for stable output
- Suitable for stainless steel pipes
PLC IGBT Induction Heating Machine for Stainless Steel Pipe Heat Treatment Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR2000
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Woodon case, carton or customized
Delivery Time
within 5 days if available in stock
Payment Terms
L/C, T/T, Western Union,Paypal
Supply Ability
500 pieces a month
Dimension(L×W×H)
262.4 ×304 ×545mm
548.5 ×747 ×847.5mm
597 ×830 ×801mm
Technical Specifications & Performance Parameters
Voltage
1-phase 220-240V / 3-phase400V(±20%)
Rated Input Current
12~288A
Input Power
1~500KVA
Input Frequency
50~60Hz
Operating Temperature
-20℃ ~ +50℃
Duty Cycle
100%
Weight
22~234KG
Heating Mode
Induction Heating
Temperature Control
Digital Display
Induction Coil Material
Copper / Stainless Steel / Aluminum
Induction Coil Size
Customizable
Cooling System
Water Pressure: 4~6 Bar
Fault Protection
Advanced System Integration
Trigger Function
Pull to start heating, loose to stop heating
Button Function
Lock the trigger (pull the trigger and press the button), Heating will be continuous
Competitive advantages
CR2000 provides precise digital temperature control and flexible IGBT induction heating, ensuring uniform results, consistent performance, and adaptability for multiple metal processing applications.
01
Intelligent
- Accurate control of heating area
- Accurate control of heating process
02
Safe
- No open flame
- No flue gas
- Fault protection
03
Clean
- No open flame
- No toxic gas emission
04
Rapid
- An overturn technology compared with resistance heating and fuel gas burning. A temperature above 1000℃ can be reached in seconds.
PLC IGBT Induction Heating Machine for Stainless Steel Pipe Heat Treatment – Accessories
Output Extension Cable
Output Extension Cable
Output Extension Cable
Induction Cable
Induction Cable
Induction Cable
PWHT cable
PWHT cable
PWHT cable
Series Cable Adaptor
Series Cable Adaptor
TC Extension Cable
TC Extension Cable
Spot-weld thermocouple
Probe thermocouple
Probe thermocouple
Digital Recorder
nduction Cable Protective Sleeve
Induction Cable Protective Sleeve
Insulation Blanket
Remote Control
Thermal Blanket
TC Welder
TC Welder
Application Scenarios for the PLC IGBT Induction Heating Machine for Stainless Steel Pipe Heat Treatment
multiple industrial heating applications, delivering precise, efficient, and controlled heat for welding preparation, post-weld treatment, pipeline joint heating, and shrink fitting across field and workshop environments.
Technical Parameters
Model
Input
Output
Inductance Range
Dimension (without digital recorder)
Weigh
CR2000-005B-12SF
Power : 5KVA
Voltage : 1-phase 220-240V
Frequency : 50-60Hz
Current : 20.8-22.7A
Power : 4.5KW (duty cycle 100%)
Frequency : 5-60KHz
1-160uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-010B-14TF
Power : 10KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 12-18A
Power : 9kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-015B-14TF
Power : 15KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 18-27A
Power : 13.5kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-020B-14TF
Power : 20KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 24-36A
Power : 18kW (duty cycle 100%)
Frequency : 3-15KHz
2.2-300uH
W：262.4mm
H：304mm
D：545mm
22Kg
CR2000-040B-14TF
Power : 40KVA
Frequency : 50-60Hz
Current : 50-61A
Voltage : 3-phase 400V(+20%)
Power : 36kW (duty cycle 100%)
Frequency : 3-35KHz
2.2-300uH
W：548.5mm
H：747mm
D：847.5mm
95Kg
CR2000-080B-14TF
Power : 80KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 96-144A
Power : 72kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-120B-14TF
Power : 120KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 144-216A
Power : 108kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：597mm
H：830mm
D：801mm
142Kg
CR2000-160B-14TF
Power : 160KVA
Voltage : 3-phase 400V(+20%)
Frequency : 50-60Hz
Current : 192-288A
Power : 145kW (duty cycle 100%)
Frequency : 2.5-35KHz
3.0-500uH
W：596mm
H：1252mm
D：805mm
234Kg
About Canroon
Canroon is a professional manufacturer of induction heating equipment, integrating R&D, production, and global supply. With modern factories, extensive exhibition participation, and internationally recognized certifications, Canroon delivers reliable, efficient, and application-focused heating solutions for industrial customers worldwide.
Factory
Exhibitions
Certificates
PLC IGBT Induction Heating Machine for Stainless Steel Pipe Heat Treatment Technical Support
Canroon provides professional technical support throughout the product lifecycle, offering installation guidance, operation training, troubleshooting assistance, and responsive service to ensure stable performance and efficient operation of induction heating equipment.
Global Warranty
18-month standard warranty on all main equipment units.
24/7 Technical Support
Round-the-clock expert assistance for troubleshooting.
On-site Commissioning
Professional setup and testing at your facility.
Operational Training
Comprehensive training for your operators and engineers.
Spare Parts Supply
Fast delivery of genuine replacement parts worldwide.
Maintenance Plans
Scheduled maintenance to ensure equipment longevity.
FAQ
This FAQ section answers common questions about the CR2000 induction heating machine, covering applications, operation, configuration, and technical support to help users better understand product performance and usage.
01 What applications is the CR2000 induction heating machine suitable for?
CR2000 is widely used for pre-weld heating, post-weld heat treatment (PWHT), pipe joint heating, shrink fitting, anti-corrosion coating preparation, and other industrial metal heating applications in workshops and field environments.
02 What power supply options are available for the CR2000 series?
CR2000 supports multiple power configurations, including single-phase and three-phase options, depending on the model. Voltage and frequency can be customized to match local power standards and project requirements.
03 Can the CR2000 be used for on-site or field operations?
Yes. The CR2000 features a portable design and flexible inductors, making it suitable for on-site pipeline construction, maintenance, and repair work in oil, gas, and industrial environments.
04 Does the CR2000 support temperature control and monitoring?
CR2000 supports precise temperature control and can be equipped with thermocouples and temperature recorders to ensure stable heating, accurate process control, and compliance with industrial standards.
05 Are custom inductors available for different workpieces?
Yes. Canroon provides custom inductors tailored to different pipe sizes, materials, and heating applications, ensuring efficient, uniform heating and optimal performance.
06What technical support does Canroon provide for CR2000 users?
Canroon offers full technical support, including installation guidance, operation training, troubleshooting, and after-sales service, ensuring reliable long-term operation of CR2000 equipment.
