Induction Heating Brazing Equipment for Curing, Forging, and Straightening
Induction heating brazing equipment for curing, forging, and straightening metals, providing controlled heating and consistent industrial performance.
- Multi-functional for curing and forging
- Supports metal straightening
- Controlled and stable heating

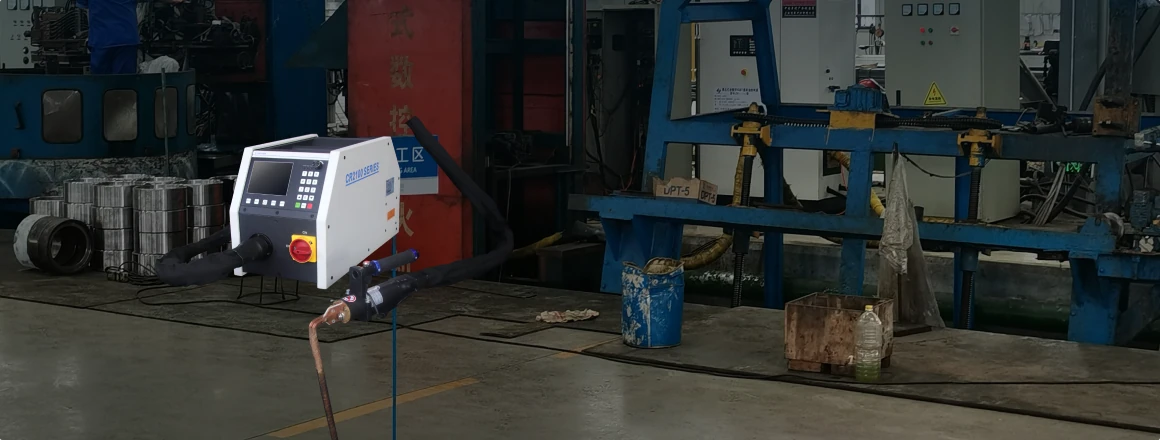

Key Features of Induction Heating Brazing Equipment for Curing, Forging, and Straightening
Versatile induction heating machine for brazing, annealing and hardening with stable performance and intelligent control.
1.Advanced system integration
- Intelligent induction heating power supply, high-efficiency transformer, custom coil and cooling unit are integrated to form a stable heating system.
2.Wide applications
- Suitable for brazing, annealing, hardening, curing, straightening and coating removal processes.
- Can heat steel, copper, aluminum, titanium and other metal materials.
3.Multiple control mode built-in
- PID temperature closed-loop control.
- Power control.
All control modes and parameters can be easily set and displayed in the LCD panel.
Heating curves are able to set up to 20 in quantities, and each curve up to 10 segments
4.Multiple external control methods support
- Analog signal input (0-10V / 4-20mA).
- RS-485 communication interface.
5.Monitoring of run status and fault protection.
- RS-485 communication interface.
- Fault alarm and automatic shutdown.
6.Module design
- Modular machine design allows convenient maintenance.
Introduction and Description of Induction Heating Brazing Equipment for Curing, Forging, and Straightening

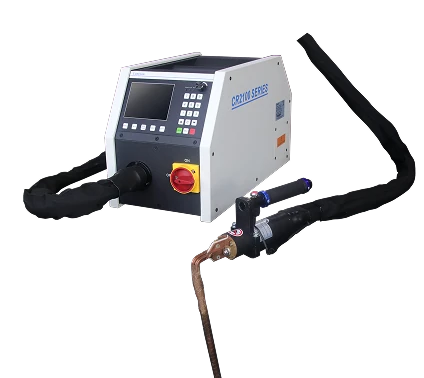

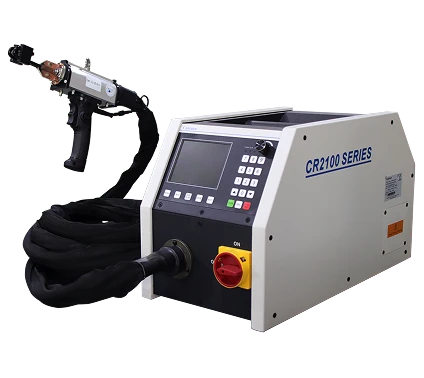

Hand-held transformer (HHT) are designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.
Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different application.
CR2100 series – Custom Inductor
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness.
It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness. It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Technical Parameters
Product Pictures
Product Model
Rated input power
Rated input current
Output frequency
Cooling water pressure / flow rate
Rated Input Valtage / Frequency
HHT / Coaxial Transformer Weight
Dimension(L×W×H)
Portable type
CR2100-010B-14TW
10KVA
12-18A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-020B-14TW
20KVA
24-36A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-030B-14TW
30KVA
36-54A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-040B-14TW
40KVA
48-72A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-050B-14TW
50KVA
60-90A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3 kg
621.4×282.4×349.4mm
CR2100-060B-14TW
60KVA
72-108A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-010H-14TW
10KVA
12-18A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-020H-14TW
20KVA
24-36A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-030H-14TW
30KVA
36-54A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-040H-14TW
40KVA
48-72A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-050H-14TW
50KVA
60-90A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-060H-14TW
60KVA
72-108A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
