/Induction Brazing Machine
Compact Portable Induction Brazing Machine for Metal Tubes
Compact portable induction brazing machine designed for metal tubes, ensuring precise heating and consistent brazing quality in tight spaces.
- Compact and portable design
- Suitable for metal tube brazing
- Precise and stable heating
Compact Portable Induction Brazing Machine for Metal Tubes Specifications
Basic Product Information
Technical Specifications & Performance Parameters
Basic Product Information
Model Numbe
CR2100
Place of Origin
Shenzhen, China
Brand Name
Canroon
Certification
CE ISO9001:2008
Minimum Order Quantity
1 pcs
Price
FOB
Packaging Details
wooden case
Delivery Time
within 7 days if available in stock
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 sets per month
Dimension(L×W×H)
621.4×282.4×349.4mm
Technical Specifications & Performance Parameters
Voltage
3-phase/400V(±20%)
Rated Input Current
12-108A
Input Power
10-60KVA
Input Frequency
10~200KHZ
Operating Temperature
-20℃ ~ +50℃
Duty Cycle
100%
Weight
1.5-3KG
Heating Mode
Induction Heating
Temperature Control
Digital Display
Induction Coil Material
Copper / Stainless Steel / Aluminum
Induction Coil Size
Customizable
Cooling System
Water Pressure: 4~6 Bar
Fault Protection
Advanced System Integration
Trigger Function
Pull to start heating, loose to stop heating
Button Function
Lock the trigger (pull the trigger and press the button), Heating will be continuous
Introduction and Description of Compact Portable Induction Brazing Machine for Metal Tubes
Hand-held transformer (HHT) are designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.
Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different application.
CR2100 series – Custom Inductor
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness.
It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Canroon offer custom service for clients. Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with the workpiece and CR2100 power source, and manufactured in high-standard craft to ensure its performance and robust quality. Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness. It’s important to insist on professionally made and maintained coils – preferably from the same people who made you induction system. Necessary information are required from clients for a professional service provided by Canroon: specific application, workpiece material and dimensions (better with drawing and pictures).
Application Scenarios for the Compact Portable Induction Brazing Machine for Metal Tubes
The CR2100 induction heating machine is widely used across industrial metal processing, providing fast, precise, and efficient heating for annealing, brazing, hardening, and shrink fitting. Its flexible design ensures stable performance, clean operation, and adaptability for both workshop and on-site applications.
Technical Parameters

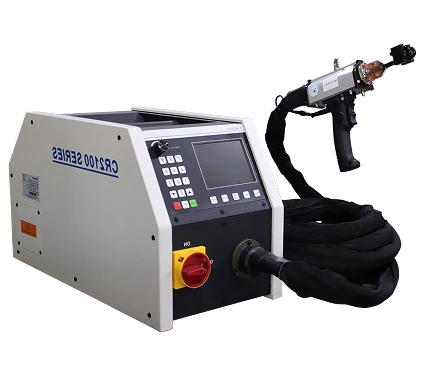

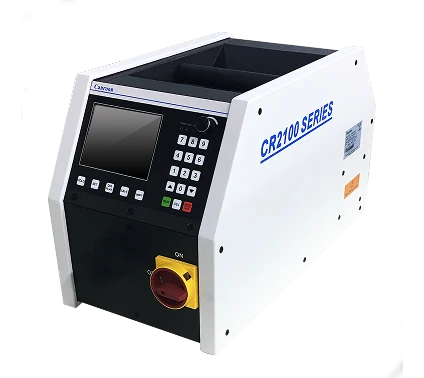

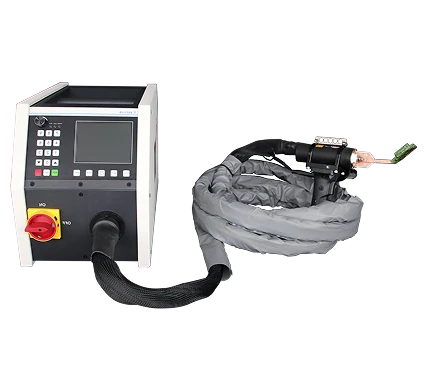

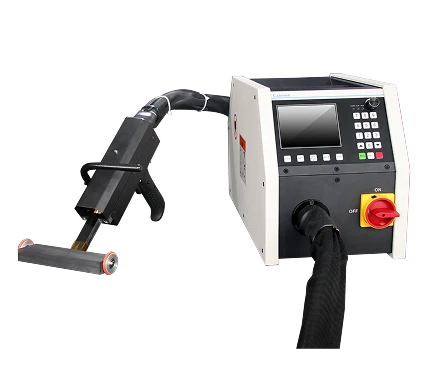

Product Pictures
Product Model
Rated input power
Rated input current
Output frequency
Cooling water pressure / flow rate
Rated Input Valtage / Frequency
HHT / Coaxial Transformer Weight
Dimension(L×W×H)
Portable type
CR2100-010B-14TW
10KVA
12-18A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-020B-14TW
20KVA
24-36A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-030B-14TW
30KVA
36-54A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-040B-14TW
40KVA
48-72A
10~40KHZ
4~6 bar≥12L/min
3-phase/400V(±20%)
1.5 kg
621.4×282.4×349.4mm
CR2100-050B-14TW
50KVA
60-90A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3 kg
621.4×282.4×349.4mm
CR2100-060B-14TW
60KVA
72-108A
10~40KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-010H-14TW
10KVA
12-18A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-020H-14TW
20KVA
24-36A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-030H-14TW
30KVA
36-54A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-040H-14TW
40KVA
48-72A
50~200KHZ
4~6 bar≥15L/min
3-phase/400V(±20%)
1.5kg
621.4×282.4×349.4mm
CR2100-050H-14TW
50KVA
60-90A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
CR2100-060H-14TW
60KVA
72-108A
50~200KHZ
4~6 bar≥25L/min
3-phase/400V(±20%)
3kg
621.4×282.4×349.4mm
